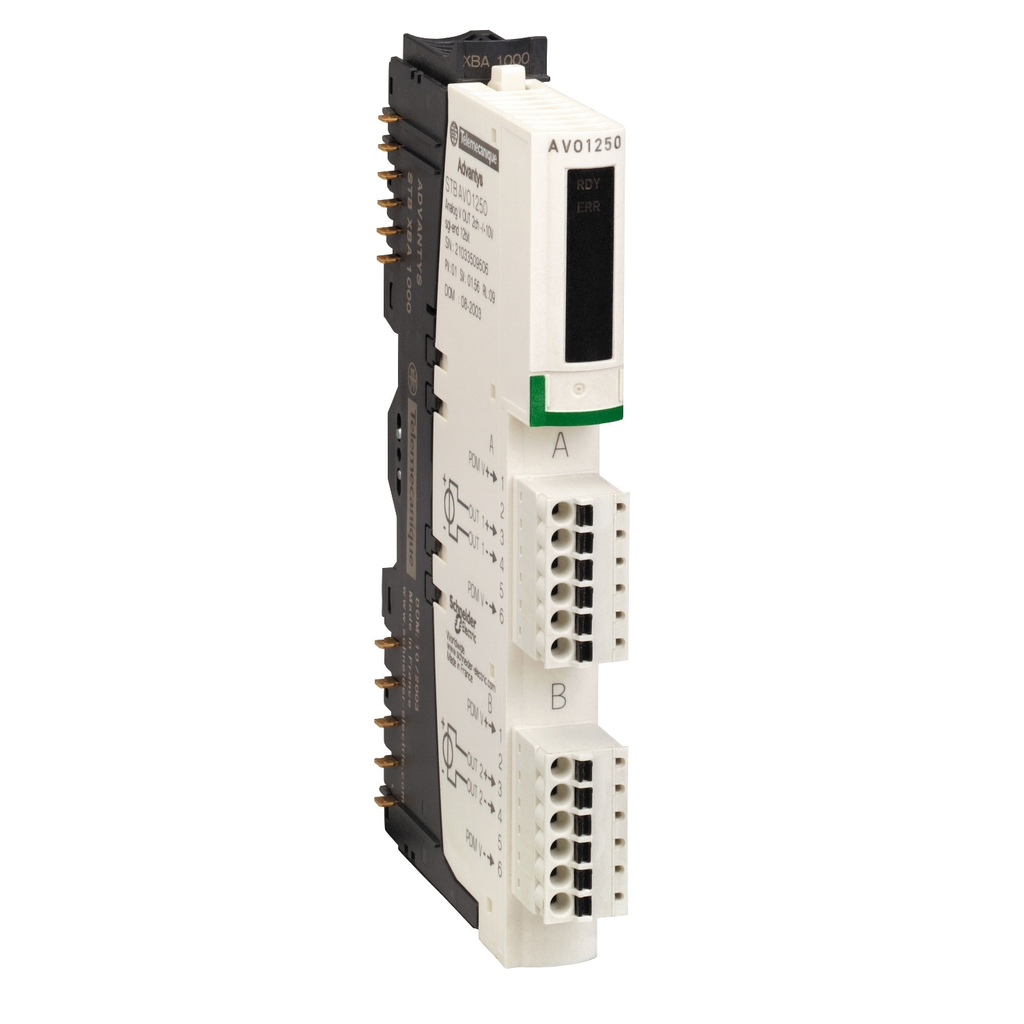

This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard analogue output kit has 2 analogue outputs with 11bit + sign and 12bit output resolution. It is an analogue output kit with a rated supply voltage of 24V DC and a current consumption of 45mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height) and weighs 0.116kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA1000. The kit includes STBXTS1100, 6-terminal screw type connector, STBXTS2100, 6-terminal spring clamp connector, STBAVI1270 module and STBXBA1000 base. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=STB-IO4_CAD2D_all, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-top.dxf
• Conformance Attributes
• Product Certifications : UL, CSA, UL, CSA, FM Class 1 Division 2
• Important Information Attributes
• Persona Type Ids : EU, OM8, SI
• Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
• Addressing Requirement : 2 non-adjacent input bytes (module and channel status diagnostics), 2 output words
• Data Format : IEC 61131-2, EN 61131-2
• Fallback Status : user configurable standard NIMs, state 0 basic NIMs
• Kit Composition : STBXTS1100, 6-terminal screw type connector, STBXTS2100, 6-terminal spring clamp connector, STBAVO1250 module, STBXBA1000 base
• Local Signalling : 1 LED green module status (RDY), 1 LED red module error (ERR)
• Temperature Drift : +/-0.01 %/°C, +/-0.01 %/°C
• Vibration Resistance : +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz), 5 gn 58-150 Hz) on 35 mm DIN rail, 3 gn 58-150 Hz) on 35 mm DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)
• Integral Linearity : +/- 0.1 %FS, +/- 0.1 %FS
• Medium Desc : analog output kit, Modicon STB, standard, +/- 10V, 2 O, 12bits
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Global Commercial Status : Commercialised
• Return Indicator : N
• Stocking Flag : Y
• Device Type : Automation - Distributed inputs/ouputs
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Bearing Track Assembly Possible : true
• Cold Swapping : yes
• Front Installation Possible : false
• Io Link Master Present : false
• Isolation Between Channels And Bus : 1500 V for 1 minute
• Marking : CE
• Network Type : DC
• Overvoltage Category : II
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : standard analog output kit
• Rack Assembly Possible : true
• Radio Standard Bluetooth : false
• Radio Standard Gprs : false
• Radio Standard Gsm : false
• Radio Standard Umts : false
• Range Of Product : Modicon STB distributed I/O solution
• Response Time : 3 ms
• Returnability : No
• Shock Resistance : 30 gn 11 msIEC 88 reference 2-27
• Supply : power distribution module
• Supporting Protocol For As Interface Safety At Work : false
• Supporting Protocol For Asi : false
• Supporting Protocol For Can : false
• Supporting Protocol For Data Highway : false
• Supporting Protocol For Devicenet : false
• Supporting Protocol For Devicenet Safety : false
• Supporting Protocol For Ethercat : false
• Supporting Protocol For Ethernet Ip : false
• Supporting Protocol For Foundation Fieldbus : false
• Supporting Protocol For Interbus : false
• Supporting Protocol For Knx : false
• Supporting Protocol For Lon : false
• Supporting Protocol For Modbus : false
• Supporting Protocol For Other Bus Systems : false
• Supporting Protocol For Profibus : false
• Supporting Protocol For Profinet Cba : false
• Supporting Protocol For Profinet Io : false
• Supporting Protocol For Profisafe : false
• Supporting Protocol For Safetybus P : false
• Supporting Protocol For Sercos : false
• Supporting Protocol For Suconet : false
• Supporting Protocol For Tcp Ip : false
• Sustainable Packaging : No
• Typical Current Consumption : 45 mA 5 V DC for logic bus
• Update Time : 25 ms
• Wall Mounting Direct Mounting Possible : false
• Certified For Ul Hazardous Location Class I : false
• Certified For Ul Hazardous Location Class Ii : false
• Certified For Ul Hazardous Location Class Iii : false
• Certified For Ul Hazardous Location Division 1 : false
• Certified For Ul Hazardous Location Division 2 : false
• Dc Supply Voltage : 24-24 V
• Fieldbus Connection Over Separate Bus Coupler Possible : true
• Radio Standard Wi Fi 802 11 : false
• Supporting Protocol For Interbus Safety : false
• System Accessory : true
• Differential Linearity : monotonic
• Appendant Operation Agent Ex Ia : false
• Appendant Operation Agent Ex Ib : false
• Certified For Ul Hazardous Location Group A Acetylene : false
• Certified For Ul Hazardous Location Group B Hydrogen : false
• Certified For Ul Hazardous Location Group C Ethylene : false
• Certified For Ul Hazardous Location Group D Propane : false
• Certified For Ul Hazardous Location Group E Metal Dusts : false
• Certified For Ul Hazardous Location Group F Carbonaceous Dust : false
• Certified For Ul Hazardous Location Group G Non Conductive Dust : false
• Height Nominal : 13.9 mm
• Width Nominal : 128.3 mm
• Environment Attributes Main
• Ambient Air Temperature For Storage : -40-85 °C without derating, -40-85 °C without derating, -40-85 °C without derating, -40-85 °C without derating
• Operating Altitude : <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
• Product Compatibility : power distribution module STBPDT3100/3105, mounting base STBXBA1000
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Ambient Air Temperature For Operation : 0-60 °C without derating)
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 95-95 % 60-60 °C without condensation
• General Attributes
• Product Or Component Type : standard analog output kit
• Range Of Product : Modicon STB distributed I/O solution
• ETIM
• ETIM 8 : EC001596
• ETIM 9 : EC001596
• Output Attributes
• Analogue Output Type : voltage +/- 10 V, voltage 0...10 V
• Analogue Output Current : 0.005 A
• Analogue Output Number : 2
• Analogue Output Resolution : 12 bits
• Output Protection Type : short-circuit protection
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Analogue Input Number : 0
• Analogue Input Resolution : 12 bits
• Specifications
• Depth : 70 mm
