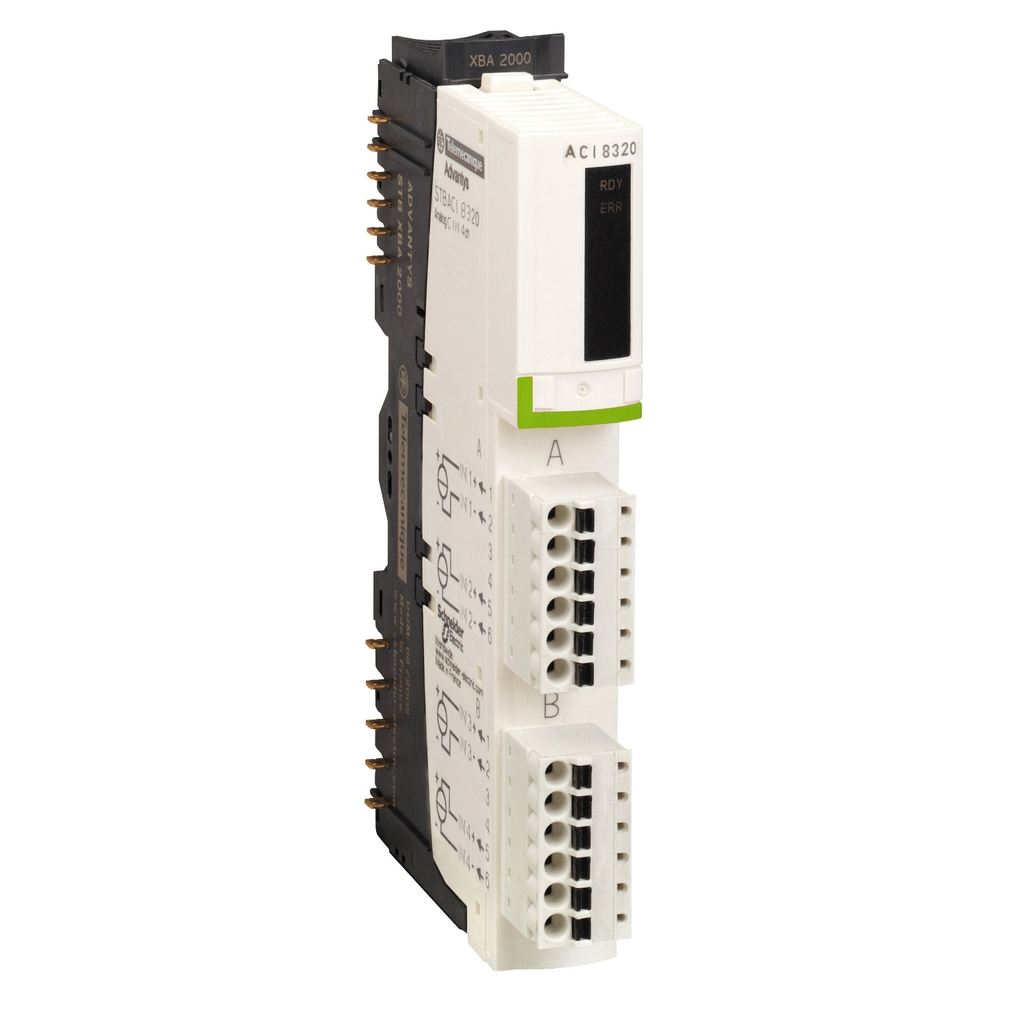

analog input kit, Modicon STB, standard, 4-20mA, 4 I, 15bits with sign

ANALOG C IN 4CH HART KIT CONN

SQDSTBACI8320K STBACI8320K 3595863948745
612.57 / EA
http://schema.org/OutOfStock
Mayer-DDS-analog input kit, Modicon STB, standard, 4-20mA, 4 I, 15bits with sign-1
  • Country of Origin: USA
  • Depth: 70 mm
  • Height: 18.4 mm
  • Warranty Length: 18 mth
  • Width: 128.3 mm
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard analogue input kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 4 analogue inputs (current 0mA to 20mA, 4mA to 20mA) with 15bit plus sign resolution. This product is compatible with most major fieldbus networks. It is an analogue input kit with a rated supply voltage of 24V DC and a current consumption of 95mA at 5V DC for logic bus. It supports hot swap fallback, requires standard type network interface module (NIM). It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 18.4mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, ATEX category 3G, CE, UL, CSA and C-Tick. This kit is suitable for use with mounting base STBXBA2000 and power distribution module STBPDT3100/3105. The kit includes STBACI8320 module, STBXBA2000 base, STBXTS1100, 6-terminal screw type connector and STBXTS2100, 6-terminal spring clamp connector. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a master controller via a bus or communication network.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard analogue input kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 4 analogue inputs (current 0mA to 20mA, 4mA to 20mA) with 15bit plus sign resolution. This product is compatible with most major fieldbus networks. It is an analogue input kit with a rated supply voltage of 24V DC and a current consumption of 95mA at 5V DC for logic bus. It supports hot swap fallback, requires standard type network interface module (NIM). It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 18.4mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, ATEX category 3G, CE, UL, CSA and C-Tick. This kit is suitable for use with mounting base STBXBA2000 and power distribution module STBPDT3100/3105. The kit includes STBACI8320 module, STBXBA2000 base, STBXTS1100, 6-terminal screw type connector and STBXTS2100, 6-terminal spring clamp connector. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a master controller via a bus or communication network.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : CSA || C-tick || ATEX Cat 3G || FM Class 1 Division 2 || UL
    • Shock Resistance : 30 gn 11 ms IEC 88 reference 2-27
    • Vibration Resistance : +/-0.35 mm 10-58 Hz || 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail
    • Ip Degree Of Protection : IP20 conforming to IEC 61131-2 class 1
    • Pollution Degree : 2 IEC 60664-1
    • Ambient Air Temperature For Storage : -40-85 °C without derating
    • Relative Humidity : 95-95 % 60-60 °C without condensation
    • Operating Altitude : <= 6561.68 ft (2000 m)
    • Ambient Air Temperature For Operation : 32...140 °F without derating
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Scip Number : 6830dd70-e4bc-47df-85c7-e41f888576f4
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Take-Back : No
  • Complementary
    • Insulation Between Channels And Logic Bus : 1780 V for 1 minute
    • Cold Swapping : yes
    • Maximum Supply Current For Sensors : 25 mA per input channels
    • Input Impedance : 250 Ohm
    • Height : 18.4 mm
    • Insulation Between Channels And Sensor Bus : 200 V
    • Status Led : 1 LED (Green) module status (RDY) || 1 LED (Red) module error (ERR)
    • Hot Swapping Fallback : yes for standard NIMs
    • Integral Linearity : +/- 0.05 %FS
    • Supply : power distribution module
    • Data Format : EN 61131-2 || IEC 61131-2
    • Current Consumption : 95 mA 5 V DC logic bus
    • Marking : CE
    • Fallback Status : state 0 basic NIMs || user configurable standard NIMs
    • Temperature Drift : +/-0.005 %/°C
    • Addressing Requirement : 8 input words
    • Absolute Accuracy Error : +/- 0.4 % of full scale 25 °C
    • Absolute Maximum Input : 25 mA/50 V DC
    • Protection Type : short-circuit protection
    • Update Time : 80 ms
    • Width : 128.3 mm
    • Overvoltage Category : II
    • Depth : 70 mm
    • Product Compatibility : power distribution module STBPDT3100/3105 || mounting base STBXBA2000
    • [Us] Rated Supply Voltage : 24 V DC
  • Specifications
    • Country of Origin : United States
    • Width : 128.3 mm
    • Height : 18.4 mm
    • Range Of Product : Modicon STB distributed I/O solution
    • Type Of Filter : single low pass input filter 985 Hz
    • Product Or Component Type : standard analog input kit
    • Analogue Input Number : 4
    • Communication Port Protocol : Hart protocol tolerance
    • Analogue Input Resolution : 15 bits + sign
    • Kit Composition : STBACI8320 module || STBXBA2000 base || STBXTS1100, 6-terminal screw type connector || STBXTS2100, 6-terminal spring clamp connector
    • Analogue Input Type : current 0...20 mA || current 4...20 mA
