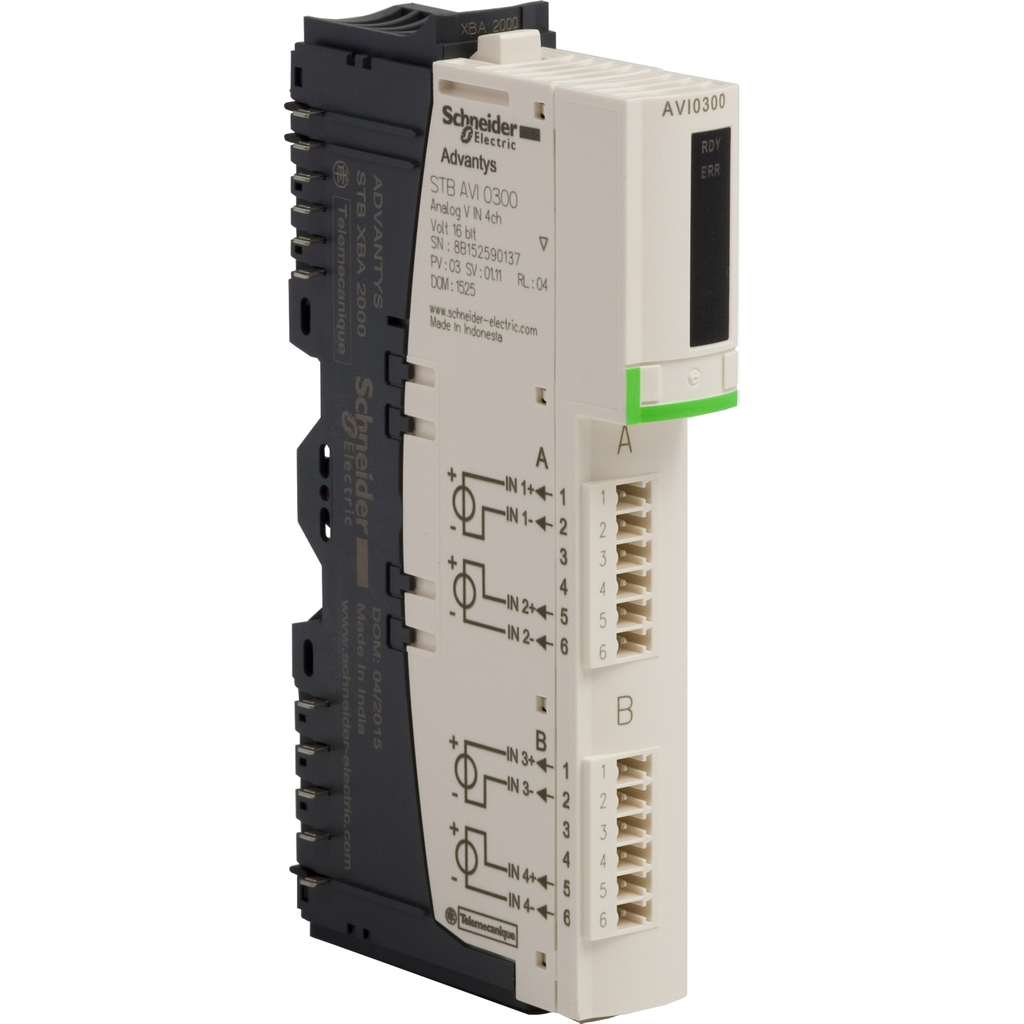

This input kit is part of the Modicon STB range, an offer of modular distributed I/O. This standard analog input kit is an accessory kit for Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). The kit has 4 analog inputs. Setting can be done via Advantys STB configuration software. It weighs 0.11kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. The kit includes STBXBA1000 base, STBAVI0300 module, STBXTS1100 6-terminal screw type connector, and STBXTS2100 6-terminal spring clamp connector. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a primary controller via a bus or communication network.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=STB-IO5_CAD2D_all, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005032_3D-CAD&p_File_name=MCADID0005032_2D-top.dxf
• Conformance Attributes
• Product Certifications : FM Class 1 Division 2, UL, CSA, ATEX Cat 3G, FM Class 1 Division 2, UL, CSA, ATEX Cat 3G, C-tick
• Complementary Attributes
• Absolute Maximum Input : 50 V
• Maximum Supply Current For Sensors : 100 mA per input channels
• Important Information Attributes
• Persona Type Ids : EU, OM8, SI
• Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
• Data Format : IEC 61131-2, EN 61131-2
• Fallback Status : state 0 basic NIMs, user configurable standard NIMs
• Kit Composition : STBAVI0300 module, STBXTS1100, 6-terminal screw type connector, STBXTS2100, 6-terminal spring clamp connector, STBXBA1000 base
• Local Signalling : 1 LED green module status (RDY), 1 LED red module error (ERR)
• Temperature Drift : +/-0.01 %/°C, +/-0.01 %/°C
• Vibration Resistance : +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz), 3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail
• Integral Linearity : +/- 0.2 %FS, +/- 0.2 %FS
• Carbon Footprint Of The Distribution Phase A4 : 0.0192241929, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.04439455, 0 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0062243686
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 8 kg CO2 eq., 7.7700307143
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 21 kg CO2 eq., 20.9466
• Medium Desc : analog input kit, Modicon STB, standard, +/- 10V, 4 I, 15bits with sign
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Global Commercial Status : Commercialised
• Return Indicator : N
• Stocking Flag : Y
• Device Type : Automation - Distributed inputs/ouputs
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1511012EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Addressing Requirement : 2 input words
• Bearing Track Assembly Possible : true
• Cold Swapping : yes
• Front Installation Possible : false
• Hot Swapping Fallback : yes for standard NIMs
• Io Link Master Present : false
• Isolation Between Channels And Bus : 1500 V for 1 minute
• Marking : CE
• Network Type : DC
• Overvoltage Category : II
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : standard analog input kit
• Rack Assembly Possible : true
• Radio Standard Bluetooth : false
• Radio Standard Gprs : false
• Radio Standard Gsm : false
• Radio Standard Umts : false
• Range Of Product : Modicon STB distributed I/O solution
• Returnability : No
• Shock Resistance : 30 gn 11 msIEC 88 reference 2-27
• Software Version : EIME v5.5
• Supply : power distribution module
• Supporting Protocol For As Interface Safety At Work : false
• Supporting Protocol For Asi : false
• Supporting Protocol For Can : false
• Supporting Protocol For Data Highway : false
• Supporting Protocol For Devicenet : false
• Supporting Protocol For Devicenet Safety : false
• Supporting Protocol For Ethercat : false
• Supporting Protocol For Ethernet Ip : false
• Supporting Protocol For Foundation Fieldbus : false
• Supporting Protocol For Interbus : false
• Supporting Protocol For Knx : false
• Supporting Protocol For Lon : false
• Supporting Protocol For Modbus : false
• Supporting Protocol For Other Bus Systems : false
• Supporting Protocol For Profibus : false
• Supporting Protocol For Profinet Cba : false
• Supporting Protocol For Profinet Io : false
• Supporting Protocol For Profisafe : false
• Supporting Protocol For Safetybus P : false
• Supporting Protocol For Sercos : false
• Supporting Protocol For Suconet : false
• Supporting Protocol For Tcp Ip : false
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 29 kg CO2 eq.
• Type Of Filter : single low pass input filter 25 Hz
• Typical Current Consumption : 90 mA 5 V DC for logic bus
• Wall Mounting Direct Mounting Possible : false
• Certified For Ul Hazardous Location Class I : false
• Certified For Ul Hazardous Location Class Ii : false
• Certified For Ul Hazardous Location Class Iii : false
• Certified For Ul Hazardous Location Division 1 : false
• Certified For Ul Hazardous Location Division 2 : false
• Dc Supply Voltage : 24-24 V
• Fieldbus Connection Over Separate Bus Coupler Possible : true
• Radio Standard Wi Fi 802 11 : false
• Supporting Protocol For Interbus Safety : false
• Performance Level According To En Iso 13849 1 : none
• System Accessory : true
• Differential Linearity : monotonic
• Appendant Operation Agent Ex Ia : false
• Appendant Operation Agent Ex Ib : false
• Certified For Ul Hazardous Location Group A Acetylene : false
• Certified For Ul Hazardous Location Group B Hydrogen : false
• Certified For Ul Hazardous Location Group C Ethylene : false
• Certified For Ul Hazardous Location Group D Propane : false
• Certified For Ul Hazardous Location Group E Metal Dusts : false
• Certified For Ul Hazardous Location Group F Carbonaceous Dust : false
• Certified For Ul Hazardous Location Group G Non Conductive Dust : false
• Pep Code : ENVPEP1511012EN
• Database Version : 2015-04
• Pep Verification Date : 2015-11-01
• Pcr Version : PEP-PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : To monitor and control industrial automation process during 10 years 100% of the time
• Energy Model Manufacturing A1 A3 2 : Energy model used: Indonesia
• Energy Model Installation A5 2 : Electricity Mix; AC; < 1kV; EU-27
• Energy Model Use B6 2 : Electricity Mix; AC; < 1kV; EU-27
• Energy Model End Of Life C1 C4 2 : Electricity Mix; AC; < 1kV; EU-27
• Height Nominal : 18.4 mm
• Width Nominal : 128.3 mm
• Environment Attributes Main
• Ambient Air Temperature For Operation : -25-70 °C without derating), -25-70 °C without derating), -25-70 °C without derating), -25-70 °C without derating)
• Ambient Air Temperature For Storage : -40-85 °C without derating, -40-85 °C without derating, -40-85 °C without derating, -40-85 °C without derating
• Product Compatibility : mounting base STBXBA1000, power distribution module STBPDT3100/3105
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 28.7864738257
• Circularity Profile : ENVEOLI1511012EN
• Environmental Disclosure : ENVPEP1511012EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP20
• Operating Altitude : 6561.68 ft (2000 m)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 95-95 % 60-60 °C without condensation
• Pep Code : ENVPEP1511012EN
• Pep Verification Date : 2015-11-01
• Pcr Version : PEP-PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : standard analog input kit
• Range Of Product : Modicon STB distributed I/O solution
• ETIM
• ETIM 8 : EC001596
• ETIM 9 : EC001596
• Output Attributes
• Analogue Output Number : 0
• Surge Protection And Filtering Attributes
• Type Of Filter : single low pass input filter 25 Hz
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Analogue Input Type : voltage +/- 10 V, voltage +/- 5 V, voltage 0...10 V, voltage 0...5 V, voltage 1...5 V
• Absolute Maximum Input : 50 V
• Analogue Input Number : 4
• Analogue Input Resolution : 15 bits + sign
• Input Impedance : 400 kOhm
• Input Protection Type : protected against short-circuit
• Specifications
• Depth : 70 mm
