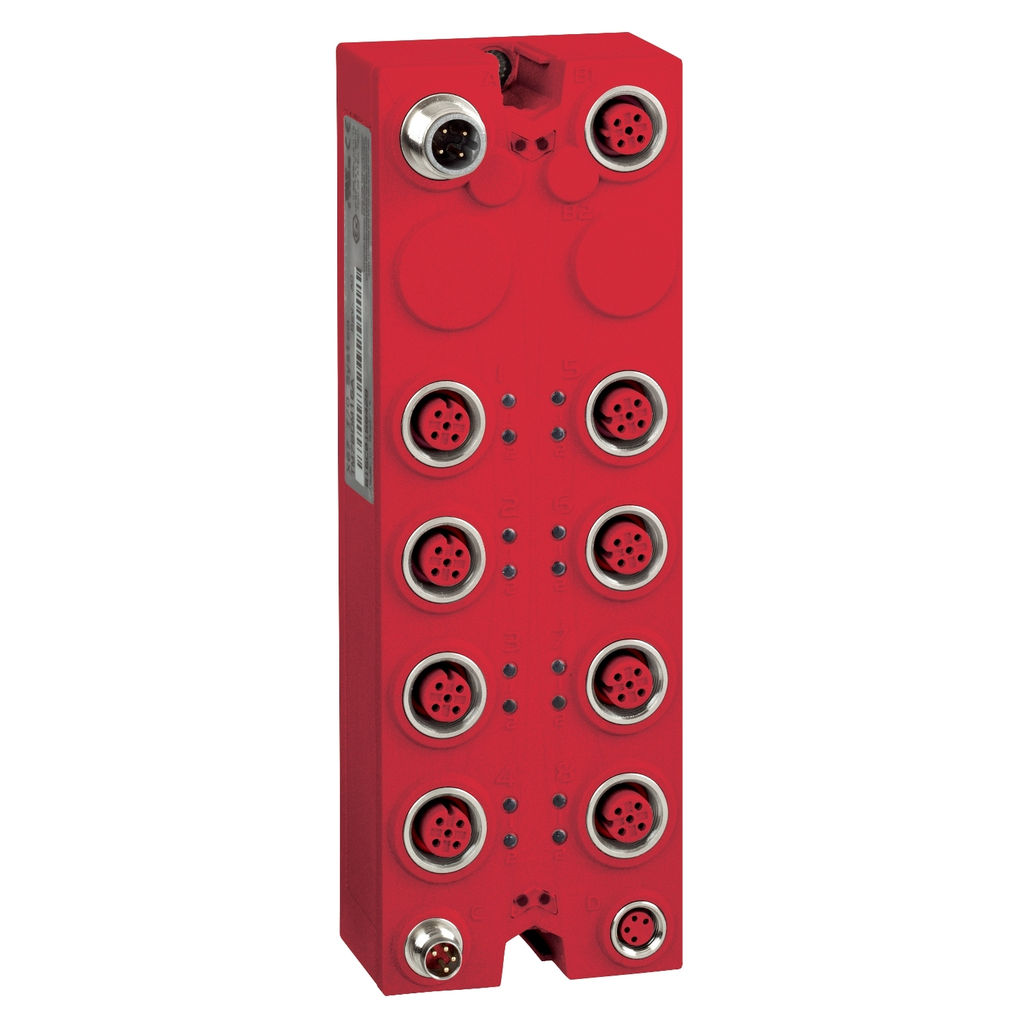

Safety discrete I/O expansion block, Modicon TM7, IP67, 8 DI, 24 V DC, 2 A, M12 connector

Name: Safety discrete I/O expansion block, Modicon TM7, IP67, 8 DI, 24 V DC, 2 A, M12 connector
Brand: Mayer Electric Supply
SKU: SQDTM7SDI8DFS
Price: 1557.95 USD
Availability: OutOfStock

SAFETY DISCRETE I/O EXPANSION

SQDTM7SDI8DFS TM7SDI8DFS 3606480941184

1557.95 / EA

http://schema.org/OutOfStock

Safety discrete I/O expansion block, Modicon TM7, IP67, 8 DI, 24 V DC, 2 A, M12 connector

Depth: 42 mm
Enclosure Material: Plastic
Operating Position: Any Position

c9069706b767d6e51577436d91152d83a52TM7SDI8DFS?filename=Schneider+Electric_Modicon-TM7_TM7SDI8DFS.pdf(Spec Sheets)

QTY

Features
Specifications

Prop 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Conformance Attributes

Product Certifications : cULus

Important Information Attributes

Persona Type Ids : EU, OM, OM8
Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electrical Connection : 1 male connector M12 - B coding - 4 ways bus IN, 1 female connector M12 - B coding - 4 ways bus OUT, 1 male connector M8 - 4 ways power IN, 1 female connector M8 - 4 ways power OUT, 2 female connectors M12 - A coding - 5 ways digital I/O, 2 female connectors M12 - A coding - 8 ways digital I/O
Electromagnetic Compatibility : electrostatic discharge immunity test, 4 kV on contact IEC 61000-4-2, electrostatic discharge immunity test, 8 kV in air IEC 61000-4-2, susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz IEC 61000-4-3, electrical fast transient/burst immunity test, 2 kV power supply IEC 61000-4-4, electrical fast transient/burst immunity test, 1 kV input/output IEC 61000-4-4, electrical fast transient/burst immunity test, 1 kV shielded cable IEC 61000-4-4, 1.2/50 µs shock waves immunity test, 0.5 kV power supply (common mode) IEC 61000-4-5, 1.2/50 µs shock waves immunity test, 1 kV power supply (differential mode) IEC 61000-4-5, 1.2/50 µs shock waves immunity test, 0.5 kV unshielded links (common mode) IEC 61000-4-5, 1.2/50 µs shock waves immunity test, 1 kV unshielded links (differential mode) IEC 61000-4-5, 1.2/50 µs shock waves immunity test, 0.5 kV shielded links (common mode) IEC 61000-4-5, 1.2/50 µs shock waves immunity test, 1 kV shielded links (differential mode) IEC 61000-4-5
Local Signalling : 2 LEDs for power supply status, 2 LEDs for safety status, 12 LEDs for input/output status
Safety Level : SIL 3 IEC 61508, SIL 3 IEC 62061, PL = e EN 13849-1
Safety Reliability Data : PFD < 1E-5, MTTFd = 2500 years, PFH < 1E-10
Vibration Resistance : 7.5 mm 2-8 Hz) IEC 60721-3-5 Class 5M3, 2 gn 8-200 Hz) IEC 60721-3-5 Class 5M3, 4 gn 200-500 Hz) IEC 60721-3-5 Class 5M3
Carbon Footprint Of The Distribution Phase A4 : 0, 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.27363577772370395
Carbon Footprint Of The Installation Phase A5 : 0, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3 : 12 kg CO2 eq., 11.774435149745413
Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 68 kg CO2 eq., 67.75401626688517
Local Data Status : Publishable
Local Publishable Date : 2026-01-12
Global Commercial Status : Commercialised
Return Indicator : N
Stocking Flag : Y
Stock Policy : 2
Serviceability : No
Traceability : No
Legacy Weee Scope : Out
Scope Perimeter : At least in Europe
Eoli Availability Display : Yes
End Of Life Doc Ref : ENVEOLI1409005EN
Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
Rohs Eur In Scope : No
Rohs Eur Status : Compliant
Rohs Eur Conformity Date : 1901
Rohs Eur Full Compliance Status : Compliant
China Rohs In Scope : Yes
China Rohs Label : 1
With Recycled Cardboard : No
Without Single Use Plastic : Yes
Product Contributes To Saved And Avoided Emissions : No
Tier Id : 1
Tier : 1
Function Option Id : ADVANCED
Function Option : Advanced
Market Segmentation Id : INDUSTRIAL
Market Segmentation : Industrial
Product Kit Identifier : N
Bearing Track Assembly Possible : true
Bus Type : TM7 bus
Enclosure Material : Plastic
Fixing Mode : by 2 screws
Front Installation Possible : false
Io Link Master Present : false
Marking : CE
Network Type : DC
Operating Position : any position
Optical Interface Present : false
Product Availability : Non-Stock - Not normally stocked in distribution facility
Product Or Component Type : safety discrete I/O expansion block
Rack Assembly Possible : false
Radio Standard Bluetooth : false
Radio Standard Gprs : false
Radio Standard Gsm : false
Radio Standard Umts : false
Range Of Product : Modicon TM7
Returnability : No
Shock Resistance : 30 gn 11 msIEC 60721-3-5 Class 5M3
Software Version : v6.2.5-6
Supporting Protocol For As Interface Safety At Work : false
Supporting Protocol For Asi : false
Supporting Protocol For Can : false
Supporting Protocol For Data Highway : false
Supporting Protocol For Devicenet : false
Supporting Protocol For Devicenet Safety : false
Supporting Protocol For Ethercat : false
Supporting Protocol For Ethernet Ip : false
Supporting Protocol For Foundation Fieldbus : false
Supporting Protocol For Interbus : false
Supporting Protocol For Knx : false
Supporting Protocol For Lon : false
Supporting Protocol For Modbus : false
Supporting Protocol For Other Bus Systems : false
Supporting Protocol For Profibus : false
Supporting Protocol For Profinet Cba : false
Supporting Protocol For Profinet Io : false
Supporting Protocol For Profisafe : false
Supporting Protocol For Safetybus P : false
Supporting Protocol For Sercos : false
Supporting Protocol For Suconet : false
Supporting Protocol For Tcp Ip : false
Sustainable Packaging : No
Total Lifecycle Carbon Footprint : 80 kg CO2 eq.
Wall Mounting Direct Mounting Possible : false
Certified For Ul Hazardous Location Class I : false
Certified For Ul Hazardous Location Class Ii : false
Certified For Ul Hazardous Location Class Iii : false
Certified For Ul Hazardous Location Division 1 : false
Certified For Ul Hazardous Location Division 2 : false
Dc Supply Voltage : 24-24 V
Fieldbus Connection Over Separate Bus Coupler Possible : false
Performance Level According To En Iso 13849 1 : none
System Accessory : false
Digital Inputs Configurable : true
Short Circuit Protection Outputs Present : true
Time Delay At Signal Change : 6-6 ms
Appendant Operation Agent Ex Ia : false
Appendant Operation Agent Ex Ib : false
Certified For Ul Hazardous Location Group A Acetylene : false
Certified For Ul Hazardous Location Group B Hydrogen : false
Certified For Ul Hazardous Location Group C Ethylene : false
Certified For Ul Hazardous Location Group D Propane : false
Certified For Ul Hazardous Location Group E Metal Dusts : false
Certified For Ul Hazardous Location Group F Carbonaceous Dust : false
Certified For Ul Hazardous Location Group G Non Conductive Dust : false
Warranty In Months : 18
Pep Code : ENVPEP1409005_V2
Database Version : 2024-01
Pep Verification Date : 2025-12-24
Pcr Version : PCR-4-ed4-FR-2021 09 06
Psr Version : PSR-0005-ed3.1-EN-2023 12 08
Type Of Verification For The Pep : Independent internal review
Data Source : extrapolated product
Functional Unit Description : To communicate with the remote I/O 100% of the time, for 10 years with a dissipated power of 27,41W in harsh environment.
Functional Unit Quantity : 1
Functional Unit Unit : unit
Product Weight In G2 : 215
Reference Lifetime In Y2 : 10
Energy Consumption On Product Lifetime In Kwh : 262.8
Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; Austria, AT
Energy Model Installation A5 2 : No energy used
Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Turkey, TR
Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
Recyclability Potential In 2 : 10
Offer Owner Code : 190786
Height Nominal : 110 mm
Width Nominal : 53 mm

Environment Attributes Main

Ambient Air Temperature For Operation : -10-60 °C, -10-60 °C
Ambient Air Temperature For Storage : -25-85 °C, -25-85 °C
Take Back : Nej
Reach Free Shvc : Yes
Recycled Metal Content At Cr Level : 0 %
China Rohs Regulation : X
Toxic Heavy Metal Free : Yes
Mercury Free : Yes
Carbon Footprint : 79.80208719435429
Circularity Profile : ENVEOLI1409005EN
Environmental Disclosure : ENVPEP1409005_V2
Eu Rohs Directive : Compliant
Ip Degree Of Protection : IP67
Operating Altitude : 0...6561.68 ft (0...2000 m)
Packaging Made With Recycled Cardboard : No
Packaging Without Single Use Plastic : Yes
Reach Free Of Svhc : Yes
Reach Regulation : Free of Substances of Very High Concern above the threshold
Relative Humidity : 5-95 % without condensation or dripping water
Pep Code : ENVPEP1409005_V2
Pep Verification Date : 2025-12-24
Pcr Version : PCR-4-ed4-FR-2021 09 06
Psr Version : PSR-0005-ed3.1-EN-2023 12 08
Type Of Verification For The Pep : Independent internal review

General Attributes

Product Or Component Type : safety discrete I/O expansion block
Range Of Product : Modicon TM7

ETIM

ETIM 8 : EC001599
ETIM 9 : EC001599

Output Attributes

Discrete Output Number : 8 at 24 V DC, 8
Discrete Output Voltage : 24 V DC
Discrete Output Voltage Type : DC

Input Attributes

Discrete Input Number : 8 at 24 V DC, 8
Input Protection Type : protected against short-circuit, reverse polarity protection
Discrete Input Current : 6 mA at 24 V DC
Discrete Input Logic : positive logic (sink)
Discrete Input Voltage : 24 V DC
Discrete Input Voltage Type : DC

Specifications

Depth : 42 mm
