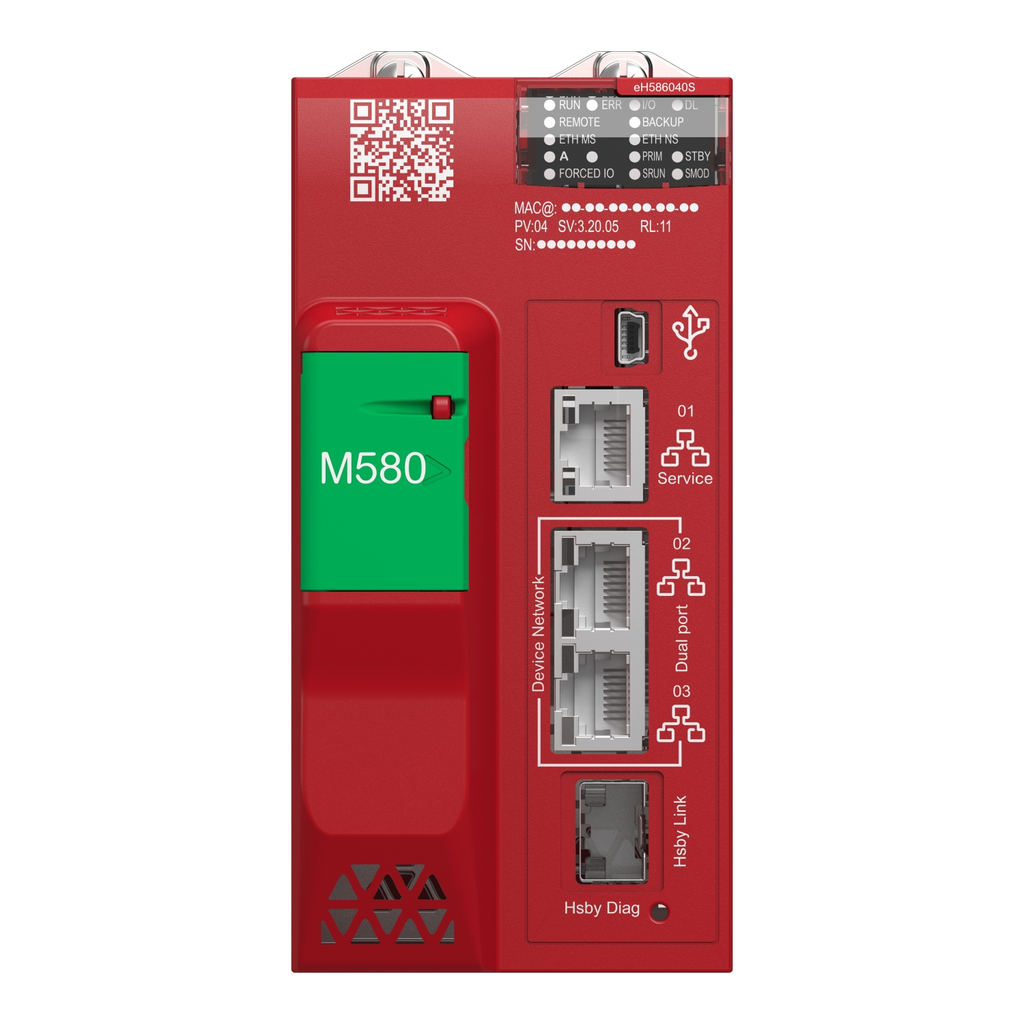

redundant safety processor, Modicon M580, 64MB, 61 Ethernet devices, 31 remote IO racks of X80 and Quantum IO

REDUNDANT HSBY PROCESSOR MODUL

SQDBMEH586040S BMEH586040S 3606489562533
28747.04 / EA
http://schema.org/OutOfStock
Mayer-DDS-redundant safety processor, Modicon M580, 64MB, 61 Ethernet devices, 31 remote IO racks of X80 and Quantum IO-1
  • Country of Origin: USA
This redundant Safety processor is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This product offers a maximum of 31 remote rack configuration with up to 31744 discrete I/O channels and 7936 analog I/O channels. This Safety product is coated and is compatible with a temperature range from -25°C to +60°C/-13°F to 140°F. This controller can help hybrid manufacturers to achieve better, measurable, earlier ROI and Up to 100% returns on their project investments in less than three months. It is equipped with 1 Ethernet port for service, 2 Ethernet ports for ring remote I/O network (Remote IO racks only) and 1 USB type mini B for programming console. It has an integrated RAM of 64MB for program, 10kb for system memory, expandable flash of 4GB for data storage and 16MB for program Safety and 1024kb for data Safety. This product is IP20 rated and offers 633244 hours of MTBF. The new grey design is applied for this module with a weight of 0.849kg and its new dimensions 64x130x135mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product complies with CE, UL, CSA, RCM, EAC, UKCA, ATEX/IECEx zone 2/22, and TUV/IEC61508/SIL3 standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This processor is compatible with Modicon X80 and Quantum Modules and with RJ45 (490NAC0100) and FO singlemode (490NAC0201) connectors. The CPU must be installed in the rack slots marked 00 and 01, with 2 screws on top of the CPU to maintain the module on the rack. This product can be used in combination with Modicon X80 (I/O, backplane, cable) and works with the EcoStruxure Control Expert programming software. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000198_3D-CAD
  • Communications & Management Attributes
    • Communication Module Processor Capacity : 4.0 Ethernet communication module, 16 AS-Interface module
    • Communication Service : DIO scanner, RIO scanner
  • Conformance Attributes
    • Product Certifications : CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22, TÜV
    • Standards : IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, IEC 60079-0, EN 50155, EN 50121-3-2, EN 50121-4, EN 50121-5, EN 45545-2, IEC 60571, IEC 62236-3-2, IEC 62234-4, IEC 62234-5
  • Complementary Attributes
    • Integrated Connection Type : 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network, USB type mini B, 1 Ethernet HSBY port
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Application Specific I O : counter, motion control, SSI encoder, accurate time stamping, serial link, HART
    • Application Structure : 1 master task, 1 periodic fast task, 1 periodic safe task
    • Checks : process control, safety control
    • Cybersecurity : Achilles certified, DoS prevention, IPSec, SNMP logging, Syslog protocol support, audit trail, embedded firewall, firmware signature, password protection, port hardening, security log
    • Environmental Characteristic : hazardous location class I division 2, gas resistant class Gx ISA S71.04, gas resistant class 3C4 IEC 60721-3-3, dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252, mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3
    • Memory Description : expandable flash, 4 GB data storage, integrated RAM, 10 kB system memory, integrated RAM, 64 MB program and data, integrated RAM, 16 MB program safety, integrated RAM, 1024 kB data safety
    • Number Of Instructions Per Ms : 40 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 50 Kinst/ms 100 % Boolean
    • Safety Level : SIL 3 IEC 61508, SIL 3 IEC 61511, SILCL 3 IEC 62061, SILCL 3 ISO 13849-1 category 4, SIL 4 EN 50126, SIL 4 EN 50128, SIL 4 EN 50129
    • Status Led : 1 LED (Green) processor running (RUN), 1 LED (Red) processor or system fault (ERR), 1 LED (Red) I/O module fault (I/O), 1 LED (Green) download in progress (DL), 1 LED (Red) memory card or CPU flash fault (BACKUP), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (green/red) Eth NS (Ethernet network status), 1 LED (Green) peer processor running (REMOTE RUN), 1 LED (Green) processor ID set to A (A), 1 LED (Green) processor ID set to B (B), 1 LED (Green) processor acting as Primary (PRIM), 1 LED (Green) processor acting as Standby (STBY), 1 LED (Red) I/O values overrided by user (FORCED IO), 1 LED (Green) processor in safety mode (SRUN), 1 LED (Green) processor in maintenance mode (SMOD), 1 LED (Green) Hot standby link status (Hsby Diag)
    • Carbon Footprint Of The Distribution Phase A4 : 0.1156071362, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.3784548357
    • Carbon Footprint Of The Installation Phase A5 : 0.0032751324, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 66 kg CO2 eq., 65.654084507
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 221 kg CO2 eq., 220.6861016949
    • Medium Desc : redundant safety processor, Modicon M580, 64MB, 61 Ethernet devices, 31 remote IO racks of X80 and Quantum IO
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Device Type : PLC System - PLC CPU
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1312016EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Control Channels : programmable loops
    • Current Consumption : 360 mA 24 V DC
    • Impregnation Material : conformal coated
    • Marking : CE
    • Mtbf Reliability : 650000 H
    • Number Of Remote I O Station : 31 - 2 X80 and Quantum drops
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : redundant processor module
    • Protective Treatment : conformal coating
    • Range Of Product : Modicon M580
    • Returnability : No
    • Shock Resistance : 15 gn
    • Software Version : EIME v5.8.1
    • Supply : internal power supply via rack
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 287 kg CO2 eq.
    • Vibration Resistance : 3 gn
    • Pep Code : ENVPEP1312016EN
    • Database Version : 2020-12
    • Pep Verification Date : 2022-12-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional Unit Description : The Modicon M580 ePAC module provides cutting-edge features and high-end performances for small to large process automation for 10 years with a 100% use rate. Typical electrical power is 7,08 W (295 mA at 24 V DC)
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: France
    • Energy Model Installation A5 2 : Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
    • Energy Model Use B6 2 : Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
    • Energy Model End Of Life C1 C4 2 : Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
  • Environment Attributes Main
    • Directives : 2014/30/EU - electromagnetic compatibility, 2006/42/EC - machinery, 2014/34/EU - ATEX directive
    • Operating Altitude : 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 286.8375233062
    • Ambient Air Temperature For Operation : -25-60 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Circularity Profile : ENVEOLI1312016EN
    • Environmental Disclosure : ENVPEP1312016EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % 55-55 °C without condensation
    • Pep Code : ENVPEP1312016EN
    • Pep Verification Date : 2022-12-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : redundant processor module
    • Range Of Product : Modicon M580
  • ETIM
    • ETIM 8 : EC000236
    • ETIM 9 : EC000236
  • Specifications
    • Country of Origin : United States
