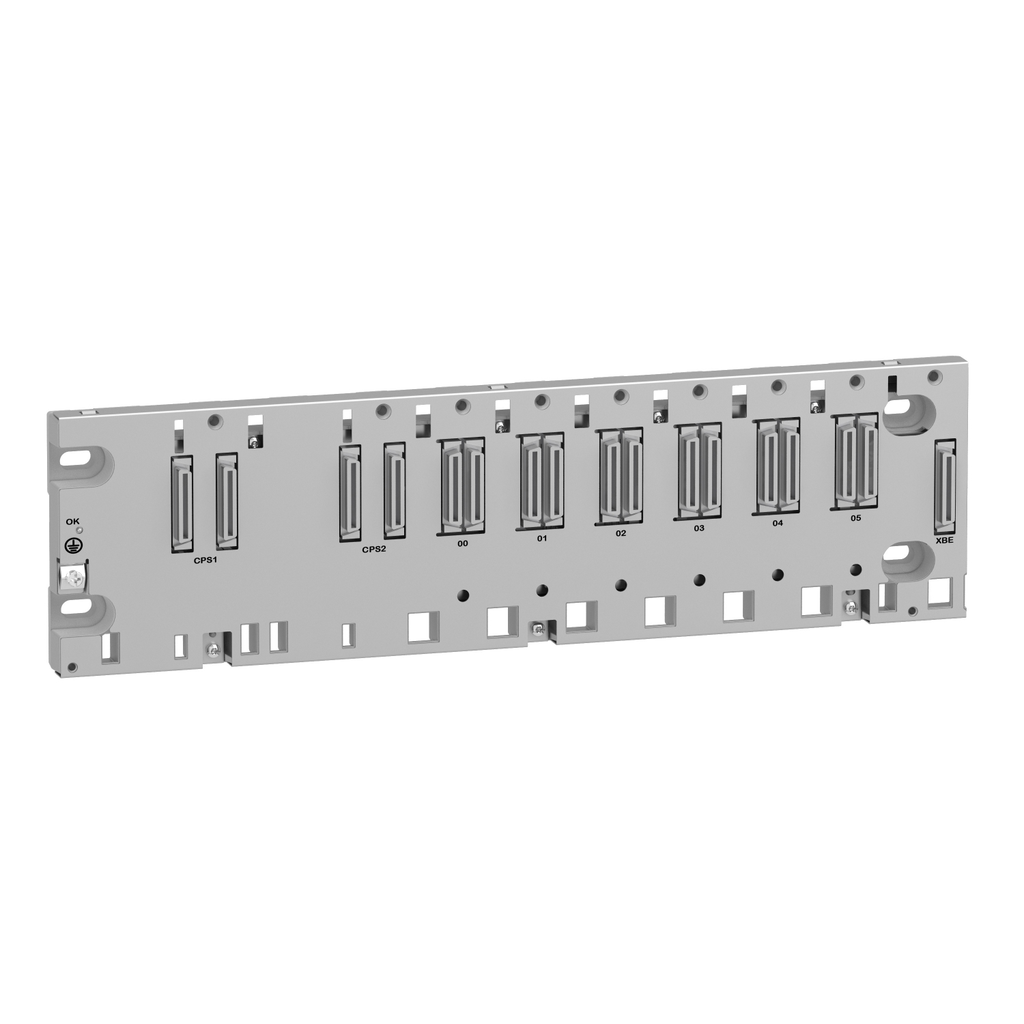

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 6-slot dual Ethernet and X-bus backplane provides 6 slots with 6 Ethernet and X-bus connectors for mixed modules. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a current of 152mA at 24V DC and 58mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 201000 hours of MTBF. It is an IP20 rated product. It weighs 1.02kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMX processor and BME processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000210_3D-CAD
• Important Information Attributes
• Persona Type Ids : EU, OM8, SI
• Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
• Current Consumption : 152 mA 24 V DC, 58 mA 3.3 V DC
• Fixing Mode : by 4 screws 4.32-6.35 mm panel, by 4 M6 screws plate, by clips 35 mm symmetrical DIN rail
• Power Consumption In W : 191 mW 3.3 V DC, 3.6 W 24 V DC
• Carbon Footprint Of The Distribution Phase A4 : 0.1327752273, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.3757856155
• Carbon Footprint Of The Installation Phase A5 : 0.0098081297, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 10 kg CO2 eq., 9.8071742424
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 183 kg CO2 eq., 182.9130090184
• Medium Desc : backplane rack, Modicon X80, 6 slots, redundant Ethernet backplane
• Local Data Status : Publishable
• Local Publishable Date : 2026-02-19
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : N
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2203018EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Electrical Connection : 1 connector (XBE) expansion module
• Mtbf Reliability : 1353797 H
• Number Of Slots : 6 bus X + Ethernet
• Product Availability : Stock - Normally stocked in distribution facility
• Range Of Product : Modicon X80
• Returnability : Yes
• Software Version : EIME v5.9.3
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 193 kg CO2 eq.
• Accessory Separate Part Type : rack
• Pep Code : ENVPEP2203018EN
• Database Version : 2020-12
• Pep Verification Date : 2022-04-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : X80 Racks are used to install modules in a PLC station (power supply, processor, discrete, analog, and application-specific I/O) during 15 years with a 100% use rate.
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Energy model used: France
• Energy Model Installation A5 2 : Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
• Energy Model Use B6 2 : Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
• Energy Model End Of Life C1 C4 2 : Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
• Environment Attributes Main
• Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
• Product Compatibility : specific application module, BMX processor, I/O module, BME processor, BMXCPS4002
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 193.2385522334
• Ambient Air Temperature For Operation : 0-60 °C
• Circularity Profile : ENVEOLI2203018EN
• Environmental Disclosure : ENVPEP2203018EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 5-95 % without condensation
• Pep Code : ENVPEP2203018EN
• Pep Verification Date : 2022-04-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Range Of Product : Modicon X80
• ETIM
• ETIM 8 : EC000810
• ETIM 9 : EC000810
