communication module, Modicon M580, OPC UA

X80 OPC UA Module M580 only

SQDBMENUA0100 BMENUA0100 3606489751364
2650.85 / EA
http://schema.org/OutOfStock
Mayer-DDS-communication module, Modicon M580, OPC UA-1

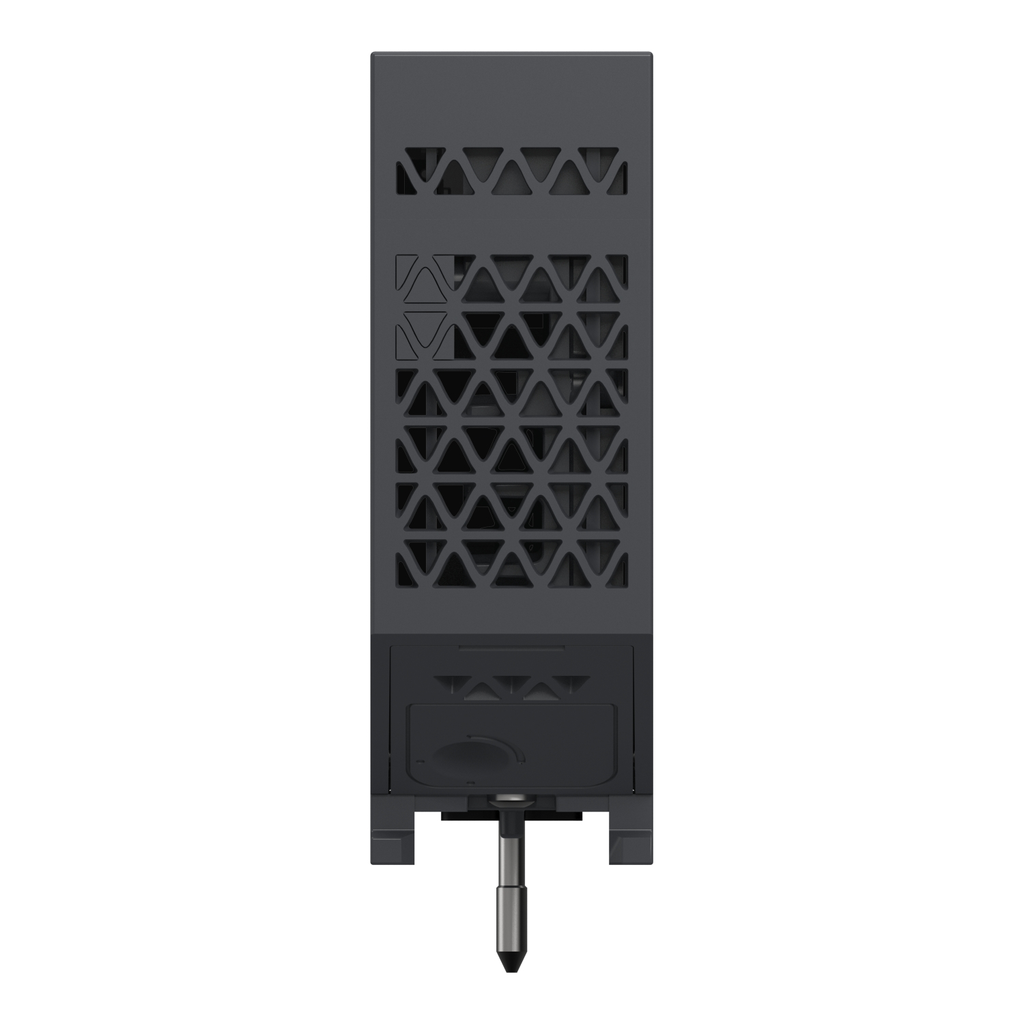

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This module is an Ethernet communications module with an embedded OPC UA server for communication with OPC UA clients, including SCADA. It provides complete Ethernet transparency when connected to the Ethernet backplane. OPC UA is a reliable standard for industrial communications. It supports HTTPS protocol. It offers cybersecurity setting service. It weighs 0.383kg. It brings high-performance OPC UA capabilities to Modicon M580 ePAC systems. This product conforms to the OPC UA V1.03 standard. It can be installed either on an Ethernet or a X-bus rack. The module is delivered in 1 packing unit. It can be installed in any X80 Ethernet backplane slot in the head rack of a Modicon M580 ePAC system. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0004877_3D-CAD&p_File_name=MCADID0004877_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0004877_3D-CAD&p_File_name=MCADID0004877_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0004877_3D-CAD&p_File_name=MCADID0004877_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0004877_3D-CAD&p_File_name=MCADID0004877_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0004877_3D-CAD&p_File_name=MCADID0004877_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0004877_3D-CAD&p_File_name=MCADID0004877_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0004877_3D-CAD&p_File_name=MCADID0004877_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0004877_3D-CAD&p_File_name=MCADID0004877_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0004877_3D-CAD&p_File_name=MCADID0004877_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0004877_3D-CAD&p_File_name=MCADID0004877_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0004877_3D-CAD&p_File_name=MCADID0004877_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0004877_3D-CAD&p_File_name=MCADID0004877_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0004877_3D-CAD&p_File_name=MCADID0004877_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0004877_3D-CAD&p_File_name=MCADID0004877_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0004877_3D-CAD&p_File_name=MCADID0004877_2D-top.dxf
  • Communications & Management Attributes
    • Communication Network Type : IPV6, IP forwarding (Front port and backplane), service forwarding, network segmentation
    • Communication Service : Modbus TCP server for module diagnostics, network management SNMP agent V1 and V3, time synchronization NTP V4 - Client and Server
  • Conformance Attributes
    • Product Certifications : CE, cULus, RCM, UKCA, EAC, Merchant Navy
    • Standards : IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 & type 2, EN/IEC 61850-3, location G
  • Complementary Attributes
    • Integrated Connection Type : 1 Ethernet port RJ45 10/100/1000 Mbit/s double shielded twisted pair
    • Maximum Number Of Modules Per Rack : 2
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Current Consumption : <= 140 mA 24 V DC, <= 140 mA 24 V DC, <= 140 mA 24 V DC, <= 140 mA 24 V DC, <= 140 mA 24 V DC, <= 140 mA 24 V DC
    • Cybersecurity : secure communication (HTTPS), built-in firewall, certificate based authentication, system hardening, role-based access control, Syslog protocol support, IPSec (initiator and responder role), network physical isolation, Achilles level 2 tested
    • Function Available : CCOTF (configuration change on the fly), hot swappable module, Advanced diagnostic information (DDT, web pages, OPC UA objects), SCADA connection through Modbus TCP
    • Local Signalling : 1 LED (green) for processor running (RUN), 1 LED (red) for processor or system fault (ERR), 1 LED (green/red) for ETH MS (Ethernet port configuration status), 1 LED (green/red) for Eth NS (Ethernet network status), 1 LED (green/red) for status (STS), 1 LED (yellow) for communication data bus
    • Opc Ua : OPC UA server, 10 clients connection max, 50000 monitored item max in standard sampling mode, 2000 monitored item max in fast sampling mode, 40 maximum subscriptions per session, 250 ms, minimum publishing interval in standard sampling mode, 20 ms, minimum sampling interval in fast sampling mode, 20 ms, minimum publishing interval in fast sampling mode, 125 ms, sampling interval in standard sampling mode, 100000, maximum number of nodes, hot redundancy mode
    • Source Timestamping : only digital IOs or variables, 250 ms, minimum polling of buffer, 5000 ms, maximum polling of buffer
    • Carbon Footprint Of The Distribution Phase A4 : 0.065383, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.52195, 0.5 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0.2 kg CO2 eq., 0.16769
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 38 kg CO2 eq., 37.81
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 147 kg CO2 eq., 147.06
    • Medium Desc : communication module, Modicon M580, OPC UA
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-23
    • Global Commercial Status : Commercialised
    • Html Descr : OPC UA module for M580Range of product: Modicon M580Product or component type: Communication moduleProduct compatibility: Ethernet + X-bus rackWeb server: For configurationTransmission support medium: Ethernet backplanePort Ethernet: 10/100/1000 BASE-TXSupply: Internal power supply via rackProtective treatment : Standard versionModule format : StandardCurrent consumption : <= 140 mA at 24 V DCLength: 86.05 mmWidth: 32 mmHeight: 131 mm
    • Return Indicator : Y
    • Stocking Flag : N
    • Manufacturer : Schneider Electric
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2309052EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Backplane Slot Location : Ethernet + X-bus Slot
    • Device Application : OPC UA server & IT control network
    • Environmental Characteristic : hazardous location class I division 2
    • Exchange Mode : half duplex and full duplex
    • Marking : CE
    • Mounting Location : main rack
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : communication module
    • Protective Treatment : standard version
    • Range Of Product : Modicon M580
    • Returnability : Yes
    • Shock Resistance : 30 gn
    • Software Version : v5.9.4
    • Supply : internal power supply via rack
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 186 kg CO2 eq.
    • Transmission Support Medium : Ethernet backplane
    • Vibration Resistance : 3 gn
    • Web Server : for commissioning, operational and maintenance
    • Pep Code : ENVPEP2309052EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-09-27
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : referent product
    • Functional Unit Description : The OPC UA module allows data communication with any Client in accordance with the OPC UA Client/Server standard. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 3,36W (140 mA at 24 V DC).& 10& 10IEC 61000-6-5, IEC 61850-3
    • Functional Unit Unit : EACH
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; FR
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Height Nominal : 131 mm
    • Length Total : 86.05 mm
    • Width Nominal : 32 mm
  • Environment Attributes Main
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    • Operating Altitude : 0...6561.68 ft (0...2000 m), 2000 m...5000 m with derating factor
    • Product Compatibility : Modicon M580 standalone CPU (BMEP58…..), Modicon M580 Redundant CPU (BMEH58…..), Modicon M580 safety CPU (non interfering type 1) (BMEP582…..), Modicon M580 safety Redundant CPU (non interfering type 1) (BMEH582…..), Modicon X80 Rack with Ethernet backplane (BMEXBP…..)
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Carbon Footprint : 185.625023
    • Ambient Air Temperature For Operation : 0-60 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Circularity Profile : ENVEOLI2309052EN
    • Environmental Disclosure : ENVPEP2309052EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % 55-55 °C without condensation
