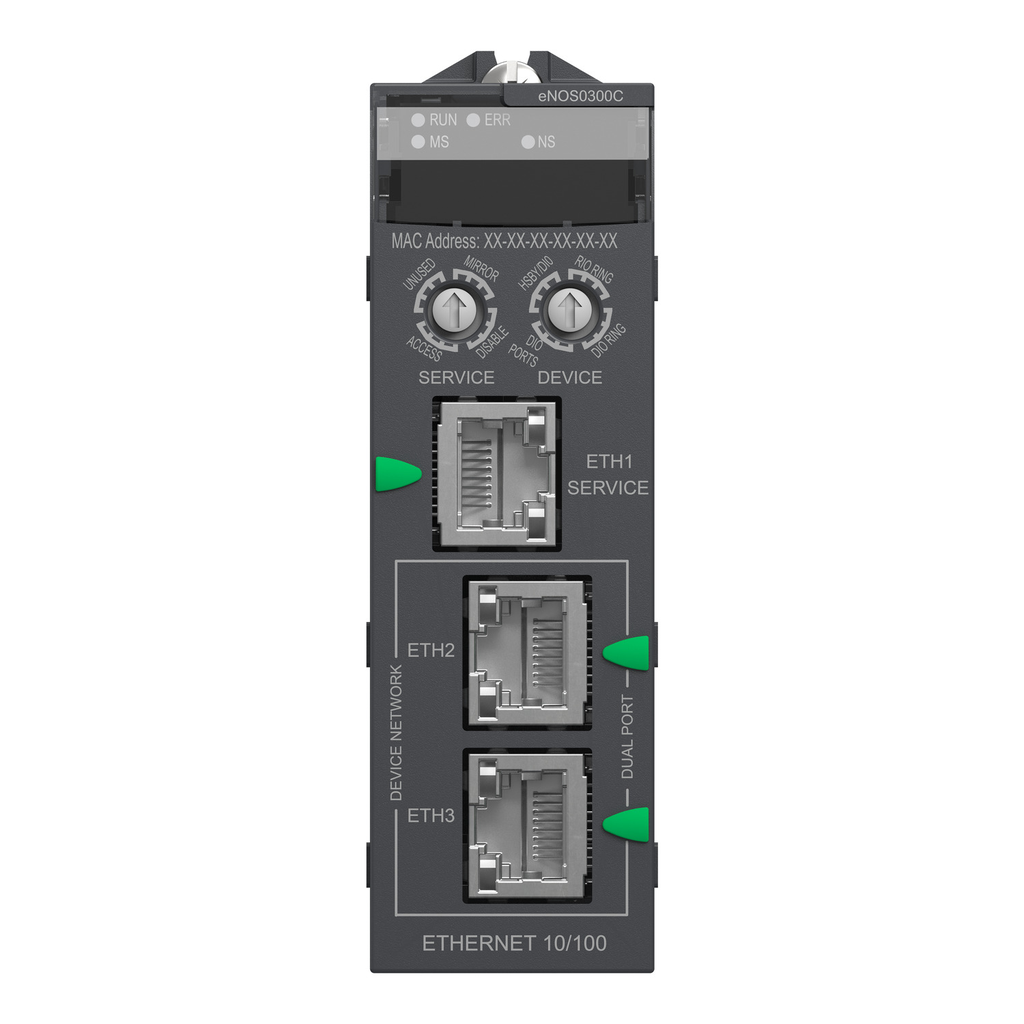

This ethernet switch module is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This switch module is equipped with 1 EtherNet/IP for service port and 2 EtherNet/IP for device network. Thanks to a protective coating on its circuit board, this product can be used in harsh environments with a temperature range from -25°C to +60°C/-13°F to 140°F. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. Its casing provides IP20 protection of the electronics and offers 1425539 hours of MTBF. This module dimensions are 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product complies with CE, UL, CSA, RCM, and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This product is compatible with BMEXBP backplane. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Ambient Air Temperature For Operation : 0-60 °C
• Standards : EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G || EN/IEC 60079-0
• Product Certifications : CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22
• Marking : CE
• Environmental Characteristic : gas resistant class Gx ISA S71.04 || gas resistant class 3C4 IEC 60721-3-3 || dust resistant class 3S4 IEC 60721-3-3 || sand resistant class 3S4 IEC 60721-3-3 || salt resistant level 2 IEC 68252 || mold growth resistant class 3B2 IEC 60721-3-3 || fungal spore resistant class 3B2 IEC 60721-3-3 || hazardous location class I division 2
• Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive
• Ambient Air Temperature For Storage : -40-85 °C
• Relative Humidity : 95-95 % without condensation
• Overvoltage Category : II
• Maximum Altitude Transport : 3000 m
• Protective Treatment : conformal coating
• Ip Degree Of Protection : IP20
• Operating Altitude : <= 6561.68 ft (2000 m)
• Complementary
• Power Consumption In W : 3.3 W 135 mA 25 °C || 4.5 W 185 mA 60 °C
• Communication Port Protocol : EtherNet/IP
• Number Of Port : 3
• Integrated Connection Type : Ethernet/IP device network || Ethernet/IP service port
• Local Signalling : 1 LED (green) for module active (RUN) || 1 LED (red) for module error (ERR) || 1 LED (green/red) for module status (Mod Status) || 1 LED (green/red) for network communication status (Net Status)
• Module Format : standard
• [Us] Rated Supply Voltage : 24 V back plane
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2402021EN
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile : ENVEOLI2402021EN
• Take-Back : No
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 147.16
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 17.980875
• Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
• Carbon Footprint Of The Installation Phase [A5] : 0.1 kg CO2 eq.
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 166 kg CO2 eq.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.424875
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 165.7053668125
• Specifications
• Country of Origin : France
• Range Of Product : Modicon X80
• Product Or Component Type : switch module
• Product Compatibility : BMEXBP... backplane
