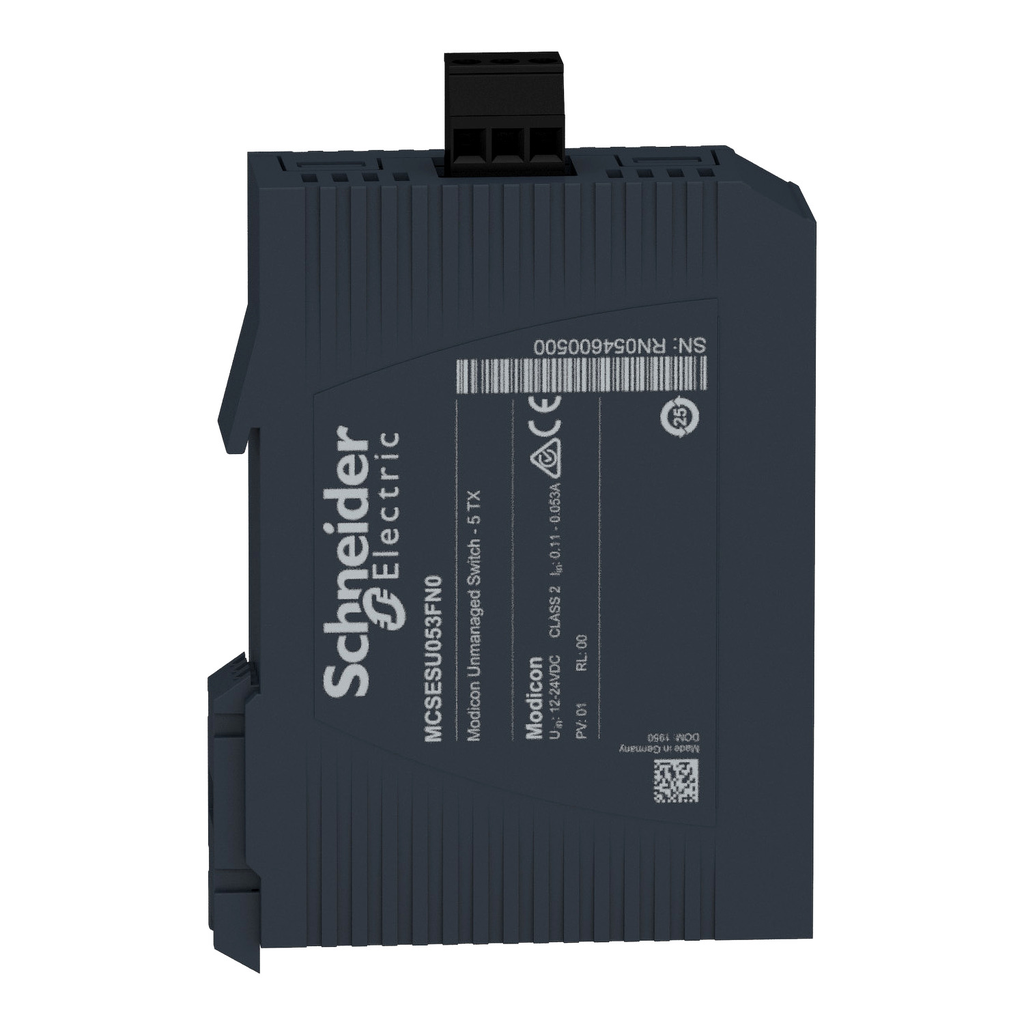

network switch, Modicon Networking, standard unmanaged, 5 ports for copper

MODICON STANDARD UNMANAGED SWI

SQDMCSESU053FN0 MCSESU053FN0 3606481029546
198.69 / EA
http://schema.org/OutOfStock
Mayer-DDS-network switch, Modicon Networking, standard unmanaged, 5 ports for copper-3
  • Depth: 79 mm
  • Warranty Length: 18 mth
  • Weight: 125 g
This product is part of the Modicon Networking range, an offer of Modicon Standard Unmanaged Switch. This unmanaged switch comes with Ethernet TCP/IP protocol. It comes with 5 transmission ports copper cable. It provides simple connectivity for multiple Ethernet devices and gives customers more options with industrial grade application. This product works at a power consumption of 1.3W and a rated voltage from 12V to 24V DC. It has a removable 3-pin power supply connector . Its dimensions are 26mm (width) x 102mm (height) x 79mm (depth) and weighs 0.125 kg. It has shielded connectors which is suitable for small, isolated networks or system with light network traffic and network with low complexity levels. It is CE, UL, RCM, UKCA, EAC certified and conforms to UL 61010 and EN/IEC 61131 standards. It is designed to be mounted on a symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon Networking range, an offer of Modicon Standard Unmanaged Switch. This unmanaged switch comes with Ethernet TCP/IP protocol. It comes with 5 transmission ports copper cable. It provides simple connectivity for multiple Ethernet devices and gives customers more options with industrial grade application. This product works at a power consumption of 1.3W and a rated voltage from 12V to 24V DC. It has a removable 3-pin power supply connector . Its dimensions are 26mm (width) x 102mm (height) x 79mm (depth) and weighs 0.125 kg. It has shielded connectors which is suitable for small, isolated networks or system with light network traffic and network with low complexity levels. It is CE, UL, RCM, UKCA, EAC certified and conforms to UL 61010 and EN/IEC 61131 standards. It is designed to be mounted on a symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
  • Features
    • Compact footprint to maximize the space in our industrial application sites
    • Simplification in product selection with several plug-and-play variants
    • Robust industrial design withstanding industrial environments
    • Wide DC power supply input range from 9.6 V DC to 32 V DC
    • Lower power consumption than our legacy offers and other products on the market
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Port Protocol : Ethernet TCP/IP
  • Complementary Attributes
    • Integrated Connection Type : shielded RJ45 copper cable
    • Maximum Cable Distance Between Devices : 100 m copper cable
    • Maximum Number Of Switches In Cascade : unlimited
    • Us Rated Supply Voltage : 12...24 V
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Local Signalling : 1 LED (green) for power supply, 1 LED per channel (yellow) for data rate (ETH LINK), 1 dual colour LED (green/yellow) for link status
    • Marking : CE, UL, RCM
    • Certificate Agency : CE, UL, RCM, EAC, UKCA
    • Carbon Footprint Of The Distribution Phase A4 : 0.01993822331778865, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.2273260721749266
    • Carbon Footprint Of The Installation Phase A5 : 0.0023696518221835126, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.8 kg CO2 eq., 0.750277109555157
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 111 kg CO2 eq., 111.45087184642956
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Return Indicator : Y
    • Device Type : Networking and Cable Solutions - Networking Devices
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2003018EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2137
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 4
    • Tier : 4
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Electrical Connection : removable connector 3 ways power supply
    • Ethernet Cabling System : TF switches
    • Mounting Support : 35 mm symmetrical DIN rail
    • Number Of Port : 5
    • Number Of Rj45 Port : 5 10/100 Mbps
    • Port Ethernet : 10/100BASE-TX - 5 copper cable
    • Power Consumption In W : 1.3 W
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Ethernet TCP/IP unmanaged switch
    • Range Of Product : Modicon Networking
    • Returnability : Yes
    • Software Version : v6.2.5-6
    • Supply Voltage Limits : 9.6-32 V DC SELV
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 112 kg CO2 eq.
    • Transmission Support Medium : twisted shielded pairs cable CAT 5E copper cable
    • Database Version : 2024-01
    • Data Source : extrapolated product
    • Height Nominal : 102 mm
    • Width Nominal : 26 mm
    • Nbr. Of Units In Pkg. : 1
    • Customs Code : 8517620020
    • Warranty In Months : 18
    • Packaging Weight In G : 50.1
    • Functional Unit Description : To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.To Interconnect equipments with a power consumption of 1,5 W and a nominal voltage between 12 V and 24 V DC at 100% use rate for 10 years.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 113.88
  • Environment Attributes Main
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 112.45078290329963
    • Ambient Air Temperature For Operation : 0-60 °C
    • Circularity Profile : ENVEOLI2003018EN
    • Environmental Disclosure : ENVPEP2003018_V2
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP30
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 10-95 % non-condensing
    • Pep Code : ENVPEP2003018_V2
    • Pep Verification Date : 2025-10-15
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : Ethernet TCP/IP unmanaged switch
    • Range Of Product : Modicon Networking
  • ETIM
    • ETIM 8 : EC000734
    • ETIM 9 : EC000734
    • ETIM 10 : EC000734
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Canada, France, United States
    • Weight : 125 g
    • Depth : 79 mm
