auxiliary power supply kit; Modicon STB; for logic of IO module

AUX POWER SUPPLY KIT CONN,BAS

SQDSTBCPS2111K STBCPS2111K 3595863949223
186.29 / EA
http://schema.org/OutOfStock

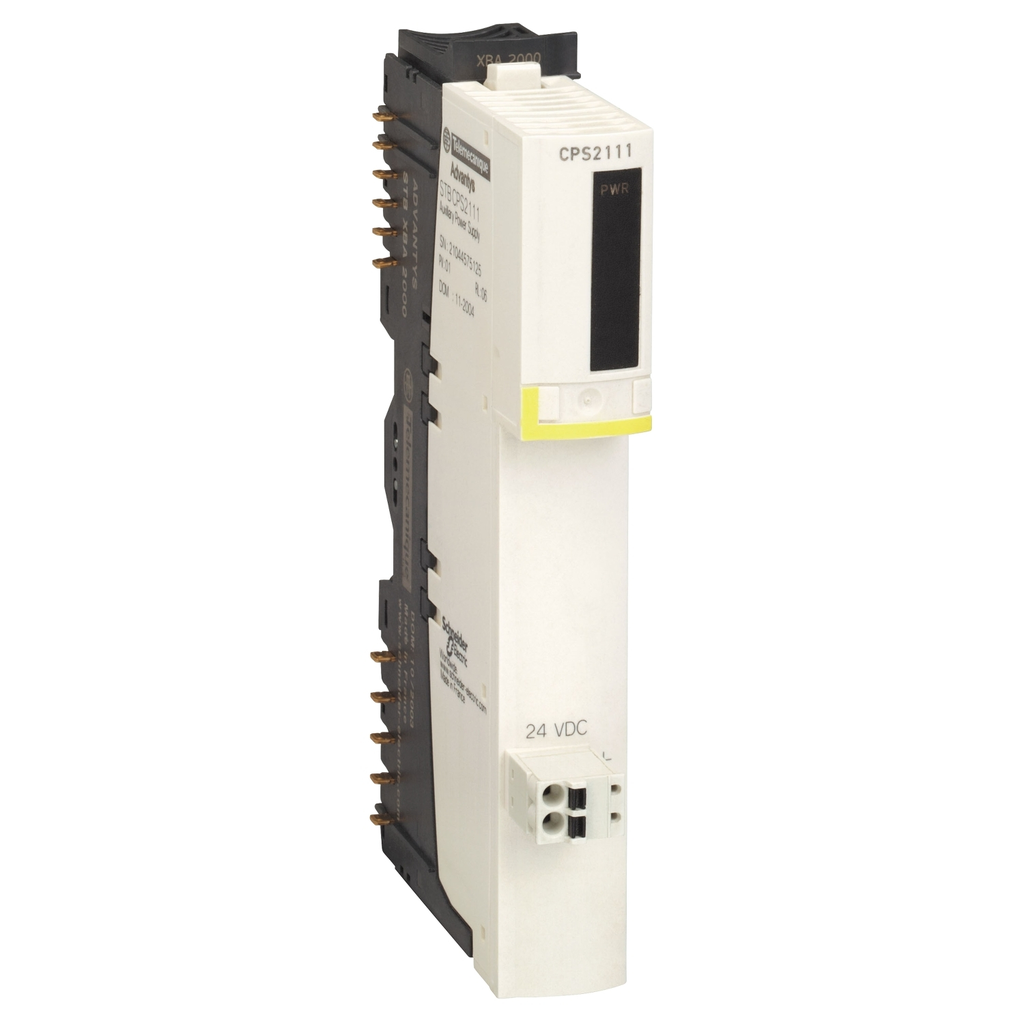

Mayer-DDS-auxiliary power supply kit; Modicon STB; for logic of IO module-1
  • Depth: 125 mm
  • Output Voltage: 0.21 %, 5.25 V
  • Warranty Length: 18 mth
This product is part of the Modicon STB range, an offer of modular distributed I/O. This auxiliary power supply kit is for logic I/O module. It is an auxiliary power supply kit with a rated supply voltage of 24V DC, an output current of 1.2A, an input current of 400mA and output voltage of 5.25V ±0.21% logic bus. This product is compatible with most major fieldbus networks. It is furnished with 2-pin removable connector for power supply. It is an IP20 rated product. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, FM Class 1 Division 2, CSA and UL. The kit includes terminal spring clamp connector, terminal screw type connector, STBXBA2100 base and STBCPS2111 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon STB range, an offer of modular distributed I/O. This auxiliary power supply kit is for logic I/O module. It is an auxiliary power supply kit with a rated supply voltage of 24V DC, an output current of 1.2A, an input current of 400mA and output voltage of 5.25V ±0.21% logic bus. This product is compatible with most major fieldbus networks. It is furnished with 2-pin removable connector for power supply. It is an IP20 rated product. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, FM Class 1 Division 2, CSA and UL. The kit includes terminal spring clamp connector, terminal screw type connector, STBXBA2100 base and STBCPS2111 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005034_3D-CAD&p_File_name=MCADID0005034_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005034_3D-CAD&p_File_name=MCADID0005034_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005034_3D-CAD&p_File_name=MCADID0005034_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005034_3D-CAD&p_File_name=MCADID0005034_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005034_3D-CAD&p_File_name=MCADID0005034_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005034_3D-CAD&p_File_name=MCADID0005034_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005034_3D-CAD&p_File_name=MCADID0005034_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005034_3D-CAD&p_File_name=MCADID0005034_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005034_3D-CAD&p_File_name=MCADID0005034_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005034_3D-CAD&p_File_name=MCADID0005034_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005034_3D-CAD&p_File_name=MCADID0005034_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005034_3D-CAD&p_File_name=MCADID0005034_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005034_3D-CAD&p_File_name=MCADID0005034_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005034_3D-CAD&p_File_name=MCADID0005034_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005034_3D-CAD&p_File_name=MCADID0005034_2D-top.dxf
  • Physical Attributes
    • Housing Color : white
  • Conformance Attributes
    • Product Certifications : CSA, FM Class 1 Division 2, UL
    • Standards : EN/IEC 61131-2
  • Complementary Attributes
    • Us Rated Supply Voltage : 24 V DC
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Kit Composition : terminal spring clamp connector, STBXBA2100 base, STBCPS2111 module, terminal screw type connector
    • Protection Type : reverse polarity, short-circuit, overload
    • Vibration Resistance : +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz), 3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)
    • Medium Desc : auxiliary power supply kit; Modicon STB; for logic of IO module
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Device Type : Automation - Distributed inputs/ouputs
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Electrical Connection : 2 pins for removable connector power supply
    • Electromagnetic Compatibility : immunity to electromagnetic interference IEC 61131-2
    • Local Signalling : 1 LED green PWR power supply
    • Marking : CE
    • Overvoltage Category : II
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : auxiliary power supply kit
    • Range Of Product : Modicon STB distributed I/O solution
    • Redundancy : no
    • Returnability : No
    • Shock Resistance : 30 gn 11 msIEC 88 reference 2-27
    • Supply Voltage Limits : 19.2-30 V
    • Sustainable Packaging : No
    • Housing Color : white
    • Input Voltage Dc : 19.2-30 V
    • Max Input Current Dc : 0.4 A
    • Max Output Current Dc : 1.2 A
    • Height Nominal : 120 mm
    • Width Nominal : 18.4 mm
  • Environment Attributes Main
    • Ambient Air Temperature For Storage : -40-85 °C without derating, -40-85 °C without derating, -40-85 °C without derating, -40-85 °C without derating
    • Operating Altitude : <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : 0-60 °C without derating
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 95-95 % 60-60 °C without condensation
  • General Attributes
    • Product Or Component Type : auxiliary power supply kit
    • Range Of Product : Modicon STB distributed I/O solution
  • ETIM
    • ETIM 8 : EC002583
    • ETIM 9 : EC002583
  • Output Attributes
    • Output Voltage : 5.25 V +/- 0.21 % logic bus
    • Output Voltage Type : DC
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Input Current : 400 mA
    • Input Voltage Type : DC
  • Specifications
    • Depth : 125 mm
