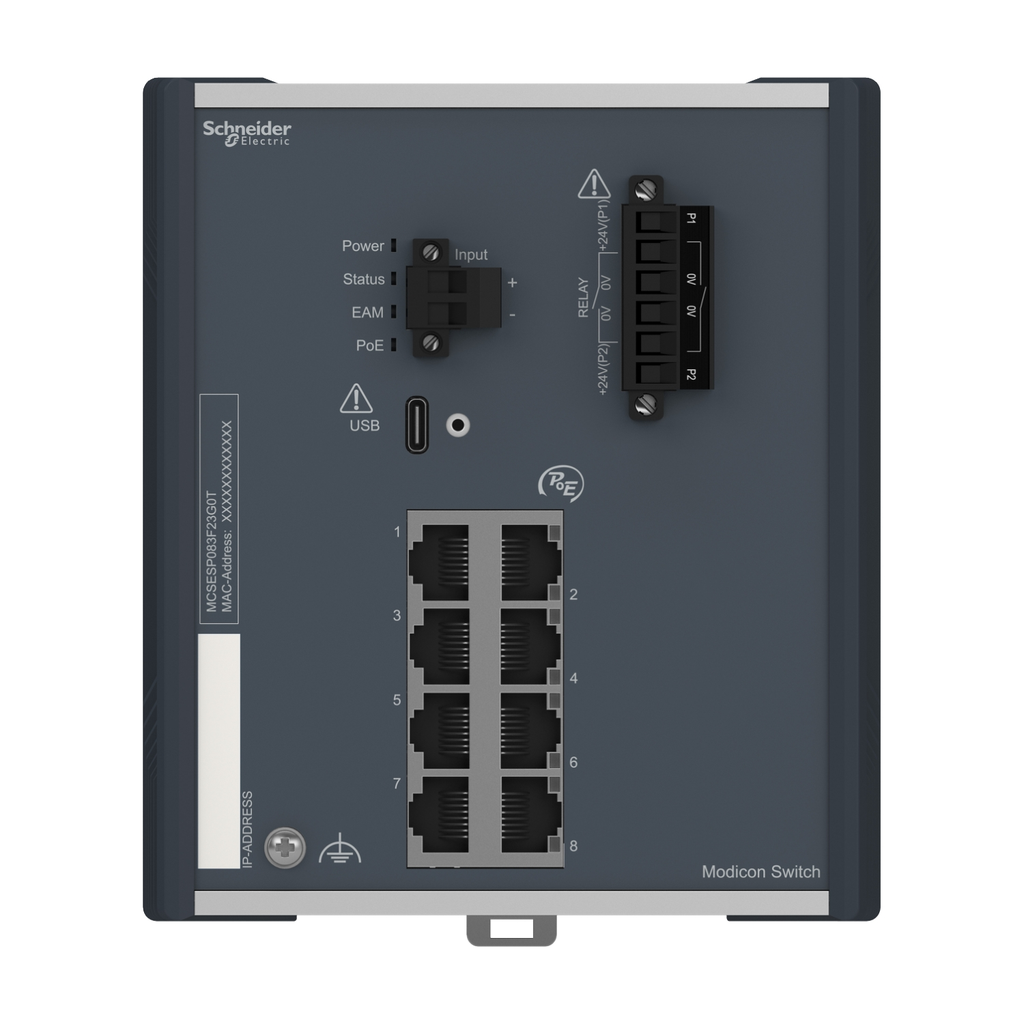

Modicon PoE (Power over Ethernet) Managed Switch - 8 Gigabit ports for copper - extended temperature

MODICON POE (POWER OVER ETHERN

SQDMCSESP083F23G0T MCSESP083F23G0T SQDMCSESP083F23G0T
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Modicon PoE (Power over Ethernet) Managed Switch - 8 Gigabit ports for copper - extended temperature-2
  • Country of Origin: Germany
  • Depth: 117.15 mm
  • Height: 144.2 mm
  • Net Weight: 1.4 kg
  • Warranty Length: 18 mth
  • Weight: 1.4 kg
  • Width: 122.4 mm
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Ambient Air Temperature For Operation : -40-+70 °C
    • Standards : UL 61010-2-201 || EN/IEC 61131-2 || EN/IEC 62368-1 || IEC 62443-4-2 || EN 50121-4
    • Product Certifications : CE || UL || RCM || DNV || ATEX || EAC || UKCA || UKEX || CSA C22-2 No 213
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
    • Relative Humidity : 1-95 % non-condensing
    • Ip Degree Of Protection : IP30
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2003018EN
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2003018EN
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Maximum Cable Distance Between Devices : 100 m copper (Gbit)
    • [Us] Rated Supply Voltage : 24 V
    • Height : 144.2 mm
    • Alarm Function : power supply fault || data link status || switch fault || temperature threshold || redundancy ring fault || incorrect configuration || external memory removed
    • Integrated Connection Type : shielded RJ45 copper (Gbit)
    • Transmission Support Medium : twisted shielded pairs cable CAT 5E copper (Gbit)
    • Mounting Support : 35 mm symmetrical DIN rail
    • Power Consumption In W : 106 W
    • Communication Service : TFTP || Quality of Service (QoS) || port monitoring || port mirroring || address conflict detection
    • Marking : CE || cULus || RCM
    • Alarm Output : 1 voltfree contact 1 A
    • Redundancy : HiPER ring || RSTP || link aggregation || link backup || redundant network coupling || MRP
    • Net Weight : 1.4 kg
    • Electrical Connection : removable connector 6 ways power supply
    • Maximum Number Of Switches In A Ring : 50
    • Function Available : security status || alarms (Traps) || system information || report
    • Ethernet Service : configuration via web server || VLAN || multicast filtering || data stream control || IGMP Snooping || SNMP-Traps and SYSLOG
    • Ethernet Cabling System : TF switches
    • Supply Voltage Limits : 18-30 V DC SELV
    • Local Signalling : 1 dual colour LED (green/yellow) for P1 P2 power supplies || 1 dual colour LED (green/red) for device status || 1 dual colour LED (green/yellow) for memory key status || 1 dual colour LED (green/yellow) for PoE power supply || 1 dual colour LED (green/yellow) for channel diagnostic
    • Diagnostics Run Time : signal contact || self test || MAC notification
    • Width : 122.4 mm
    • Depth : 117.15 mm
  • Specifications
    • Country of Origin : Germany
    • Width : 122.4 mm
    • Height : 144.2 mm
    • Weight : 1.4 kg
    • Maximum Number Of Switches In Cascade : unlimited
    • Range Of Product : Modicon Networking
    • Port Ethernet : 10/100/1000 BASE-TX - 8 copper cable
    • Product Or Component Type : Ethernet TCP/IP managed switch
    • Communication Port Protocol : Ethernet TCP/IP || SSH || HTTP || HTTPS || SNMP || RS232 || SFTP || SCP || LLDP || Telnet || SNTP
    • Cybersecurity : port hardening || IP-based port security || MAC-based port security || port-based access control || role-based access control || RADIUS assignment || HTTPS || DoS prevention || VLAN-based ACL || audit trail || SNMP logging || pre-login banner
