Modicon MC80, Controller, 8 DI, 12 DO, 2 HSC, 4 AI

Modicon MC80, Controller, 8 DI, 12 DO, 2 HSC, 4 AI

SQDBMKC8030311 BMKC8030311 3606485445168
1415.57 / EA
http://schema.org/OutOfStock

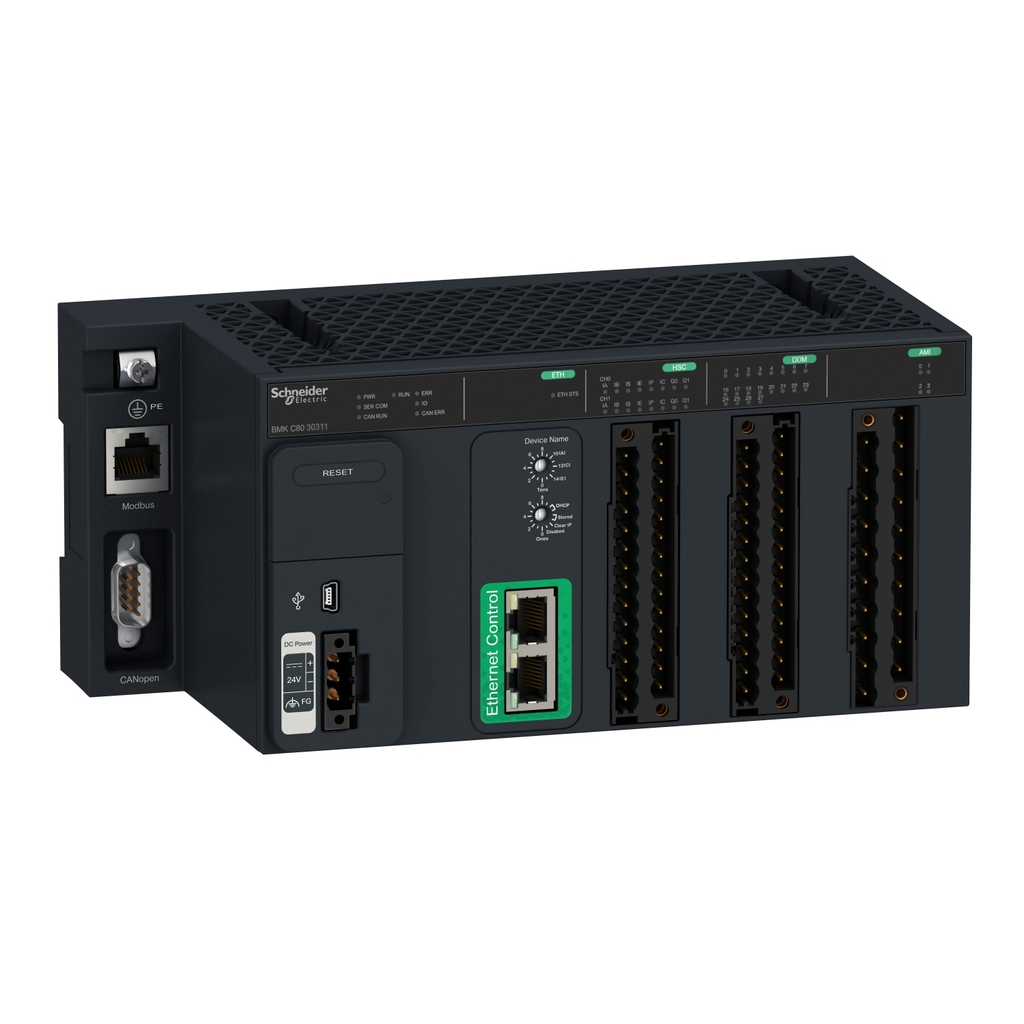

Mayer-DDS-Modicon MC80, Controller, 8 DI, 12 DO, 2 HSC, 4 AI-1
  • Country of Origin: USA
  • Number of Outputs: 2 Positive
This controller is part of the Modicon MC80 range, an offer of powerful and cost-effective all-in-one compact controllers. The controller features 8 discrete inputs, 12 discrete outputs, and 4 analog inputs. With two high-speed counter channels, this controller is the most complete of its range. It features a dual Ethernet port with embedded switch to create flexible and scalable architectures without external switches. The MC80 controller has a Modbus Serial link port for easy integration of local instrumentation or a portable HMI. It weighs 1.15kg. This product is certified by CE, CSA No 213 Class I Division 2, UL, IEC, and CSA. The MC80 PLC is compatible with the BMXFTB terminal block with 20 or 28 pins. Modicon MC80 provides optimized operation, withstanding extreme conditions with high reliability and performance.
QTY
  • Product Description
  • Features
  • Specifications
This controller is part of the Modicon MC80 range, an offer of powerful and cost-effective all-in-one compact controllers. The controller features 8 discrete inputs, 12 discrete outputs, and 4 analog inputs. With two high-speed counter channels, this controller is the most complete of its range. It features a dual Ethernet port with embedded switch to create flexible and scalable architectures without external switches. The MC80 controller has a Modbus Serial link port for easy integration of local instrumentation or a portable HMI. It weighs 1.15kg. This product is certified by CE, CSA No 213 Class I Division 2, UL, IEC, and CSA. The MC80 PLC is compatible with the BMXFTB terminal block with 20 or 28 pins. Modicon MC80 provides optimized operation, withstanding extreme conditions with high reliability and performance.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Port Protocol : 1 non isolated serial link RJ45 RS485/RS232 0.3...19.2 kbit/s 247, 1 CANopen SUB-D 9 20 kbit/s...1 Mbit/s 16, 2 Ethernet RJ45 10/100 Mbit/s
    • Communication Service : read/write variables Modbus, diagnostics Modbus, send/receive character string character mode, Process Data Object (PDO) CANopen, Service Data Object (SDO) CANopen, FDR client Ethernet, SNMP Ethernet, RSTP support Ethernet
  • Physical Attributes
    • Bus Length : 0-15 m serial link non isolated, 0-10 m serial link non isolated, 0-1000 m serial link isolated with external isolation tap, 0-20 m 1 Mbit/s CANopen, 0-2500 m 20 kbit/s CANopen, 0-100 m Ethernet
  • Conformance Attributes
    • Standards : UL 508, CSA C22.2 No 213 Class I Division 2 Group C, CSA C22.2 No 142, IEC 61131-2, CSA C22.2 No 213 Class I Division 2 Group A, CSA C22.2 No 213 Class I Division 2 Group D, CSA C22.2 No 213 Class I Division 2 Group B
    • Product Certifications : RCM
  • Complementary Attributes
    • Integrated Connection Type : USB port mini B USB
    • Maximum Counting Frequency : 60000 Hz
    • Us Rated Supply Voltage : 24 V - 15...20 % DC
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Counter Functions : count events, frequency meter, ratio count, one shot counting, measure time periods, freelarge counting, loop (modulo) counting
    • Execution Time Per Instruction : 0.06 µs Boolean, 0.08 µs mixed
    • Memory Description : internal RAM 3840 kB, internal RAM 128 kB data, internal RAM 3590 kB program constants and symbols
    • Protection Type : overload protection output, short-circuit protection output
    • Medium Desc : Modicon MC80, Controller, 8 DI, 12 DO, 2 HSC, 4 AI
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : End of commerc. announced
    • Return Indicator : N
    • Stocking Flag : Y
    • Device Type : PLC System - PLC CPU
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Current Consumption : <= 700 mA
    • Fast Read Cycle Time : 1.3 ms + 1.3 ms x number of channels used
    • Function Available : memory retention without battery
    • Isolation Voltage : 1500 V DC
    • Marking : CE
    • Nominal Read Cycle Time : 6.5 ms for 4 channels
    • Port Ethernet : 10BASE-T/100BASE-TX
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : processor module
    • Product Specific Application : thermo solar - tower power
    • Range Of Product : Modicon MC80
    • Realtime Clock : with
    • Returnability : No
    • Sensor Power Supply : 19-30 V DC
    • Sustainable Packaging : No
    • Vibration Resistance : 3 gn
  • Environment Attributes Main
    • Product Compatibility : BMXFTB28... terminal block high-speed counter module, BMXFTB20... terminal block analog input module, BMXFTB28... terminal block discrete I/O module
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 0-95 %
  • General Attributes
    • Product Or Component Type : processor module
    • Range Of Product : Modicon MC80
  • ETIM
    • ETIM 8 : EC000236
    • ETIM 9 : EC000236
  • Output Attributes
    • Discrete Output Current : 2 A per output, 10 A per module
    • Discrete Output Number : 12 positive
    • Discrete Output Voltage : 19...30 V DC
    • Nominal Output Current : 0.5 A per output
    • Number Of Outputs : 2 positive
  • Input Attributes
    • Analogue Input Type : current - 20...20 mA, voltage - 10...10 V
    • Input Compatibility : 24-24 V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10...30 V totem pole, 24-24 V 2/3-wire sensor PNP
    • Number Of Inputs : 3-3 auxiliary, 3-3 high speed
    • Analogue Input Number : 4
    • Analogue Input Resolution : 16 bits
    • Discrete Input Current : 2.4 mA
    • Discrete Input Number : 8 positive logic (sink)
    • Discrete Input Type : type 3
    • Discrete Input Voltage : 19...30 V DC
    • Logic Input : positive (sink)
  • Specifications
    • Country of Origin : United States
