Communication module, Modicon M580, Profibus DP Master, for severe environments

MODICON M580 HARDENED PROFIBUS

SQDPMEPXM0100H PMEPXM0100H SQDPMEPXM0100H
0.00 / EA
http://schema.org/OutOfStock

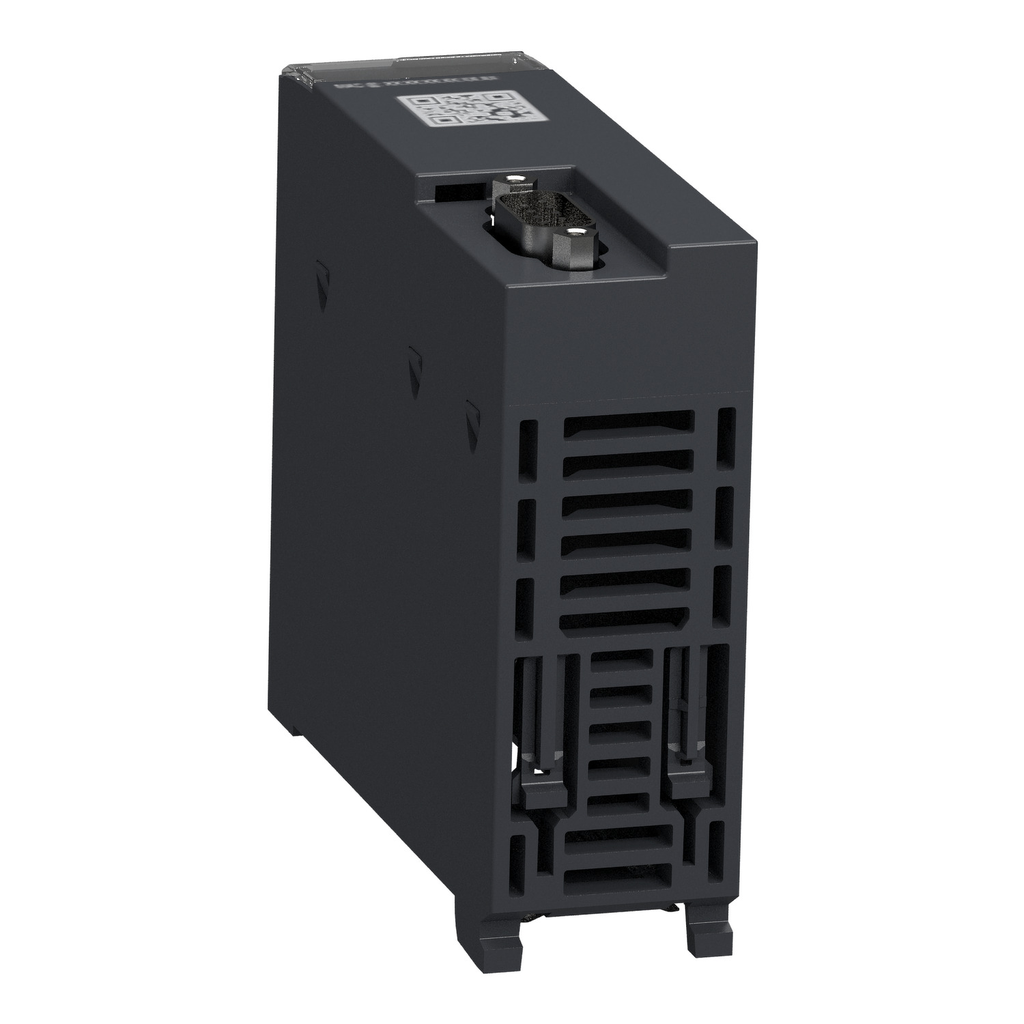

Mayer-DDS-Communication module, Modicon M580, Profibus DP Master, for severe environments-2
  • Net Weight: 0.270 kg
  • Weight: 0.270 kg
This communication module is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC)and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This Profibus communication module is equipped with 1 SUB-D 9-pin female for Profibus DP. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. Its casing provides IP20 protection of the electronics. This module has a weight of 0.270kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product complies with CE, UL, CSA, RCM, UKCA and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This product is compatible with Modicon M580 processor. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.
QTY
  • Product Description
  • Features
  • Specifications
This communication module is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC)and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This Profibus communication module is equipped with 1 SUB-D 9-pin female for Profibus DP. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. Its casing provides IP20 protection of the electronics. This module has a weight of 0.270kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product complies with CE, UL, CSA, RCM, UKCA and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This product is compatible with Modicon M580 processor. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Ambient Air Temperature For Operation : -20-70 °C
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 10-95 %
    • Protective Treatment : conformal coating
    • Operating Altitude : <= 6561.68 ft (2000 m)
  • Complementary
    • Power Consumption In W : 1040 mW 24 V typical || 1690 mW 24 V maximum
    • [Us] Rated Supply Voltage : 24 V DC internal power supply via rack
    • Transmission Support Medium : Profibus DP twisted shielded pairs cable
    • Transmission Rate : 9.6 kbit/s, 1200 m || 19.2 kbit/s, 1200 m || 93.75 kbit/s, 1200 m || 187.5 kbit/s, 1000 m || 500 kbit/s, 400 m || 1.5 Mbit/s, 200 m || 3 Mbit/s, 100 m || 12 Mbit/s, 100 m
    • Net Weight : 0.270 kg
    • Current Consumption : 43 mA 24 V typical || 70 mA 24 V maximum
    • Communication Service : implicit exchange of process data
    • Isolation Voltage : 1500 V 1 min 50/60 Hz
    • Number Of Server Device(S) : 125
    • Integrated Connection Type : Profibus DP - 1 SUB-D 9-pin female
    • Physical Interface : DB9 connector
    • Bus Type : Profibus DP
    • Module Format : standard
    • Range Compatibility : Modicon M580
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Specifications
    • Weight : 0.270 kg
    • Range Of Product : Modicon M580
    • Product Or Component Type : Profibus communication module
