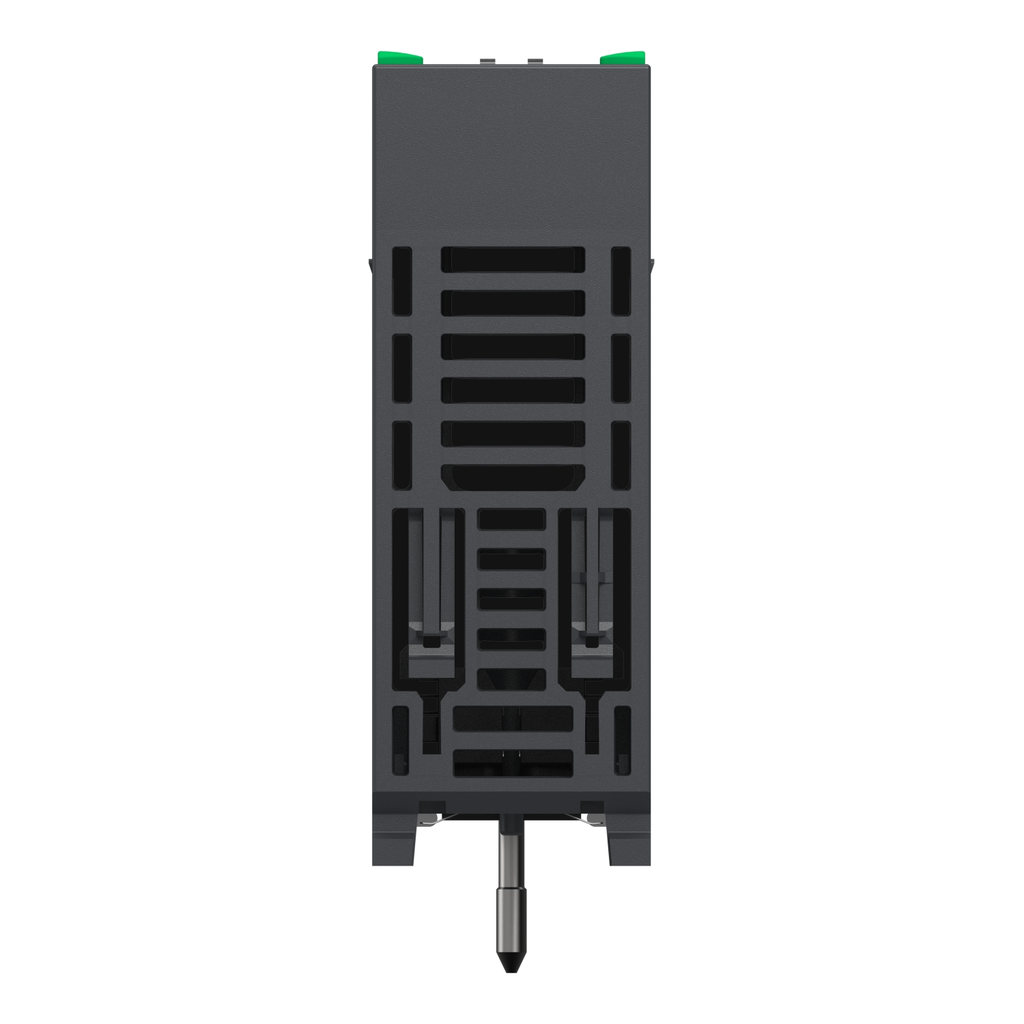

This communication module is part of the Modicon M580 range, an offer of PACs with built-in Ethernet and communication modules. This communication module offers ethernet cable for transmission support medium with 10Mbps and 100Mbps transmission rate. It is interfaced with 3 Ethernet 10/100BASE-TX. This communication module enables M580 platform to proceed to IEC 61850-compliant data exchange. It features MMS messaging client for IEC 61850, MMS messaging server for IEC 61850, Goose for IEC 61850, Modbus TCP messaging, RSTP support etc. It weighs 0.24kg. It is suitable for medium to large process applications. It is compatible with M580 PAC. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data. Modicon M580 ePAC is the controller which can help hybrid manufacturers achieve better, measurable and earlier ROI.

• Features
• IEC 61850 Server and Client, allowing it to interface with SCADA system and/or IEDs
• Compliance with IEC61850 Edition 1.0 and 2.0
• Support RSTP and dual network configuration by IP forwarding feature
• Support for Hot Standby Configurations
• Provides IED Configuration Tool
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Communication Service : MMS messaging client IEC 61850, MMS messaging server IEC 61850, goose IEC 61850, Modbus TCP messaging, RSTP support, IP forwarding
• Important Information Attributes
• Persona Type Ids : EU, OM8, SI
• Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
• Transmission Rate : 10 Mbit/s, 100 Mbit/s
• Carbon Footprint Of The Distribution Phase A4 : 0.0332144687, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.40878125
• Carbon Footprint Of The Installation Phase A5 : 0.1011138281, 0.1 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 17 kg CO2 eq., 17.29978125
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 184 kg CO2 eq., 183.95
• Local Data Status : Publishable
• Local Publishable Date : 2026-07-27
• Return Indicator : Y
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Use Carbon Footprint : 183.95
• Weee Applicability : Finished product
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2402021EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2438
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Current Consumption : 1250 mA 3.3 V DC internal
• Environmental Characteristic : standard environment
• Module Format : standard
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : communication module
• Range Of Product : Modicon M580
• Returnability : Yes
• Software Version : v5.9.4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 202 kg CO2 eq.
• Transmission Support Medium : ethernet cable
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Database Version : 2022-01
• Data Source : extrapolated product
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8517620090
• Warranty In Months : 18
• Functional Unit Description : The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 325.215
• Recyclability Potential In % : 32
• Environment Attributes Main
• Ambient Air Temperature For Storage : -40-85 °C, -40-85 °C
• Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
• Operating Altitude : <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 201.7928907969
• Ambient Air Temperature For Operation : 0-60 °C
• Circularity Profile : ENVEOLI2402021EN
• Environmental Disclosure : ENVPEP2402021EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Product Compatibility : M580 PAC
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 0-95 % without condensation
• Pep Code : ENVPEP2402021EN
• Pep Verification Date : 2023-11-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : communication module
• Range Of Product : Modicon M580
• ETIM
• ETIM 8 : EC001423
• ETIM 9 : EC001423
• ETIM 10 : EC001423
• Specifications
• Country of Origin : France
• Weight : 254 g
