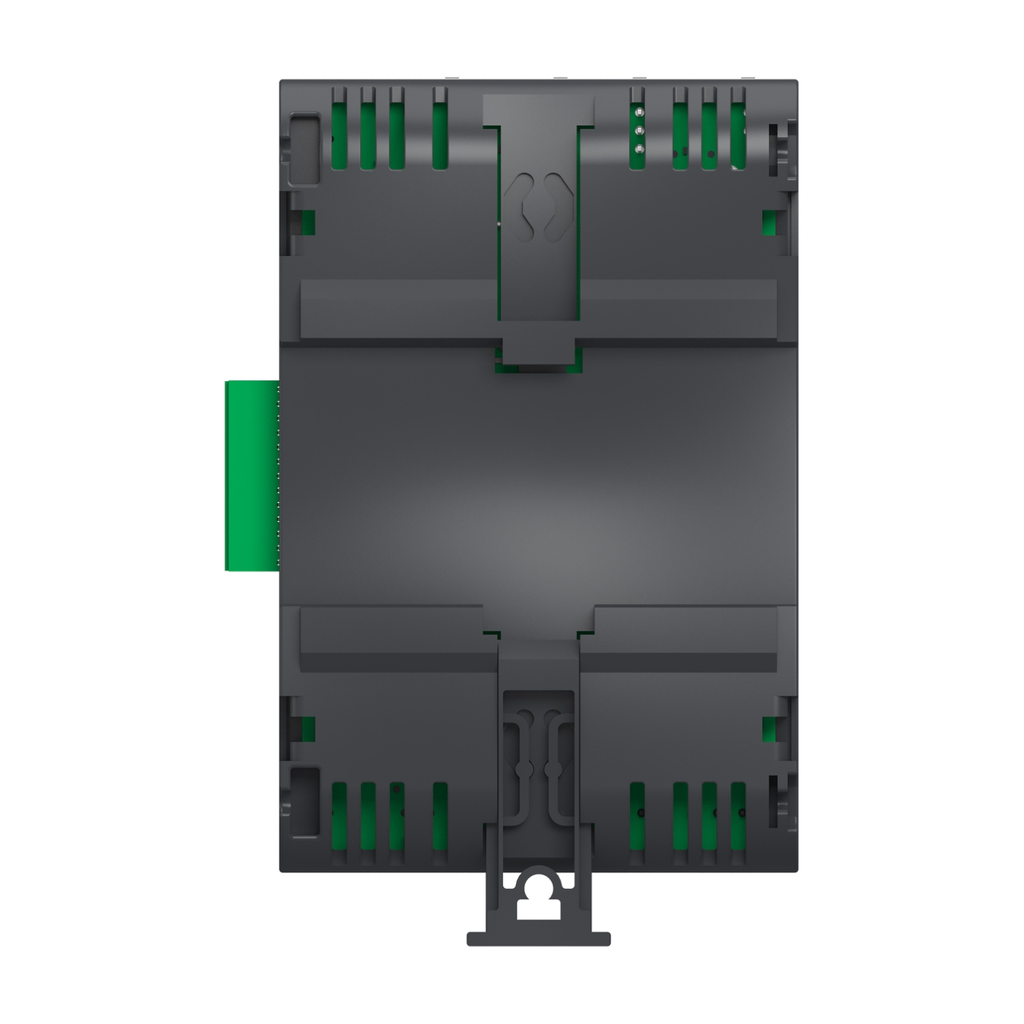

M172 IIoT Secure Interface Plug-in

M172 IIoT Secure Interface Plu

SQDTM172SIP TM172SIP 3606482071100
300.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-M172 IIoT Secure Interface Plug-in-2
  • Country of Origin: Italy
  • Depth: 72 mm
  • Height: 60 mm
  • Net Weight: 0.165 kg
  • Weight: 0.165 kg
  • Width: 110 mm
This Secure interface is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This IIoT Secure interface plug-in is designed to establish a secure Internet connection and to connect unsafe devices to a secure Ethernet network. It runs on 24Vac 50/60 Hz or 20…38Vdc power supply and gets a double Ethernet port with switch capabilities. The Secure interface Plug-in allows M172 controller to secure connection via HTTPs to webserver, to secure email SMTPs, to secure file transport protocol FTPs. It is fit with an integrated TTL communication port, to communicate with the controller, and supplied with removable terminal blocks fbus connection. It figures a memory card slot (Micro SD), programmable LEDs (red, yellow, green) and power LED (green). Its size is 4 DIN. It measures 72mm wide, 60mm deep, 110mm high, and weighs 0.165kg. The Secure interface Plug-in allows M172 controller to secure connection via HTTPs to webserver, to secure email SMTPs, to secure file transport protocol FTPs. The Secure Interface Plug-in is certified CE, UL, CSA, EAC, RCM, UKCA. It is compatible with M172 controllers, and TM172AP12PM mounting accessory. It is sold in a 1-piece package. It mounts on 35mm DIN rail, or on panel with TM172AP12PM mounting accessory. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
QTY
  • Product Description
  • Features
  • Specifications
This Secure interface is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This IIoT Secure interface plug-in is designed to establish a secure Internet connection and to connect unsafe devices to a secure Ethernet network. It runs on 24Vac 50/60 Hz or 20…38Vdc power supply and gets a double Ethernet port with switch capabilities. The Secure interface Plug-in allows M172 controller to secure connection via HTTPs to webserver, to secure email SMTPs, to secure file transport protocol FTPs. It is fit with an integrated TTL communication port, to communicate with the controller, and supplied with removable terminal blocks fbus connection. It figures a memory card slot (Micro SD), programmable LEDs (red, yellow, green) and power LED (green). Its size is 4 DIN. It measures 72mm wide, 60mm deep, 110mm high, and weighs 0.165kg. The Secure interface Plug-in allows M172 controller to secure connection via HTTPs to webserver, to secure email SMTPs, to secure file transport protocol FTPs. The Secure Interface Plug-in is certified CE, UL, CSA, EAC, RCM, UKCA. It is compatible with M172 controllers, and TM172AP12PM mounting accessory. It is sold in a 1-piece package. It mounts on 35mm DIN rail, or on panel with TM172AP12PM mounting accessory. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Height : 60 mm
    • Physical Interface : 10 BASE-T/100 BASE-TX/1000 BASE-T - 10/100/1000 BASE-TX
    • Power Consumption In W : 8 W
    • Supply : external power supply
    • Net Weight : 0.165 kg
    • Integrated Connection Type : 2 Ethernet TCP/IP 2 x RJ45 in parallel - ethernet cable - embedded HTTPS server || 1 USB (V2.0) port USB host port type A || 1 USB (V2.0) port USB device port type mini-B
    • Transmission Rate : 10/100/1000 Mbps for connecting Ethernet network
    • Local Signalling : LED (green) for power ON || LED (red) for USER (programmable) || LED (yellow) for USER (programmable) || LED (green) for USER (programmable)
    • Width : 110 mm
    • Overvoltage Category : I
    • Depth : 72 mm
    • Product Compatibility : logic controller M172
    • Memory Description : internal RAM 256 MB || flash 512 MB
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2207003EN
    • Packaging Without Single Use Plastic : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Scip Number : d8362b3a-4f57-4147-a612-14f82aa349fe
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2207003EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 119.3991197020858
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 20.1939808406469
    • Carbon Footprint Of The Distribution Phase [A4] : 0.1 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 140 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.5248294261045939
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 140.19015661434128
  • Environment
    • Product Certifications : cURus || CSA || EAC || CE || RCM || UKCA || UL 94
    • Ambient Air Temperature For Operation : -20-55 °C
    • Pollution Degree : 2
    • Shock Resistance : 1 g 11 ms
    • Ambient Air Temperature For Storage : -30-70 °C
    • Relative Humidity : 5-95 % non-condensing
    • Ip Degree Of Protection : IP20
  • Specifications
    • Country of Origin : Italy
    • Width : 110 mm
    • Height : 60 mm
    • Weight : 0.165 kg
    • Range Of Product : Modicon M171/M172
    • Product Or Component Type : communication module
    • Communication Port Protocol : Modbus TCP/IP || HTTPS || FTPS || NTP || SMTPS || SNMP v2 || SNMP v3 || MQTT over TLS
    • Concept : Modbus
