Country of Origin:
Indonesia
-
Depth:
2.76 in
-
Height:
3.8 in
-
Width:
1.06 in

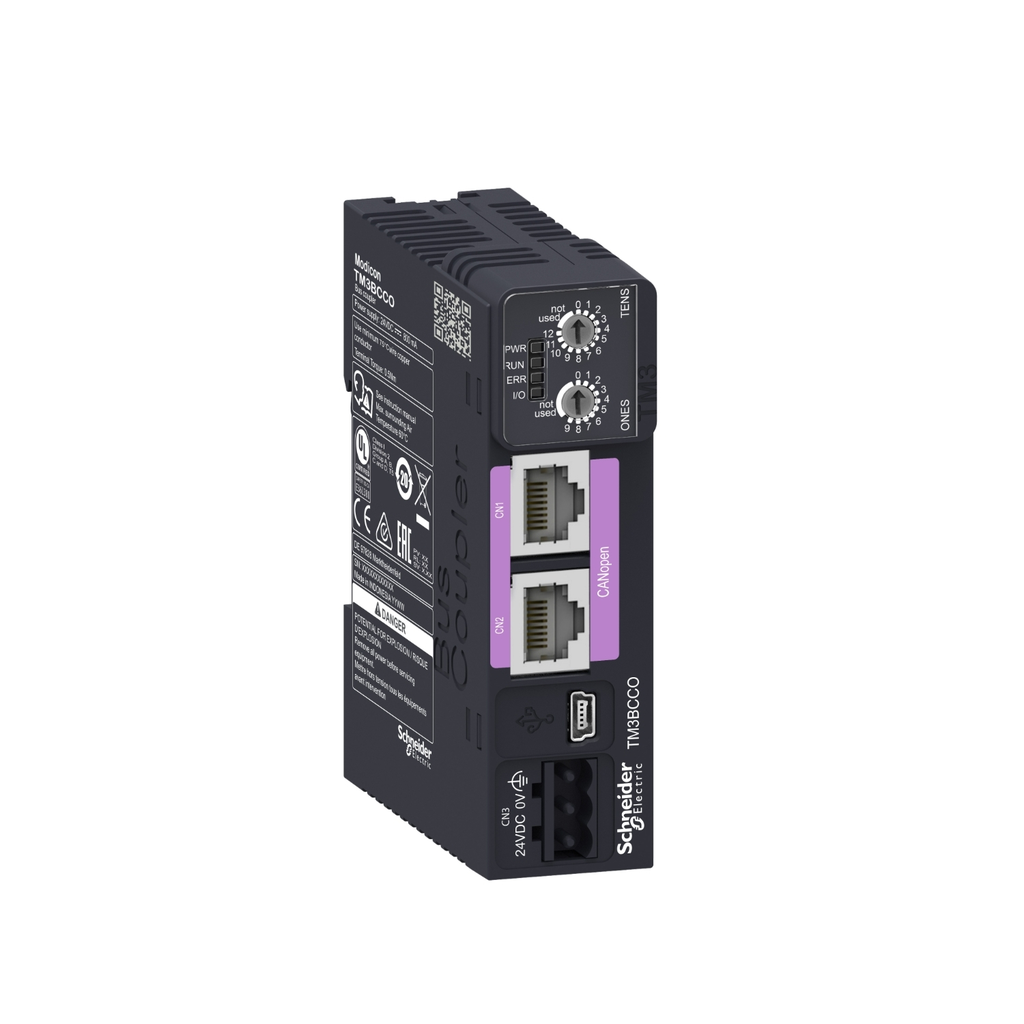

This product is part of the Modicon TM3 range, an offer of expansion IO modules for Modicon M221, M241, M251 and M262. This module is a CANopen bus coupler interface powerd by 24 V DC. The data transmission rate varies from 20 kbit/s up to 1 Mbit/s. It is an IP20 rated product. This product allows to create distributed IO islands on Canopen bus. A maximum of 64 CANopen bus couplers can be connected to Modicon M241/M251 logic controllers or Modicon M262 logic/motion controller. It is equipped with 2x isolated RJ45 CANopen (daisy chain topology) and one mini-B USB port for configuration. Its dimensions are 27mm (width) x 70mm (depth) x 96.5mm (height). It weighs 0.10kg. This product is marked CE, and certified by cULus, EN 61131-2, UL/CSA 61010-1, UL/CSA 61010-2-201, and EAC. This module is compatible with Modicon M241 and M251 logic controllers, Modicon M262 logic/motion controller if equipped with a smart communication module. This bus coupler module is mounted on a symmetrical DIN rail. For plate or panel mounting, use the TMAM2 kit. Modicon TM3 expansion modules are designed with a smart interlocking assembly mechanism holding an internal bus, it supports data and power supply from the plc. Boost the performance of your controller with the Modicon TM3 IO system specially designed for the Modicon M221, M241 and M251 logic controllers.
