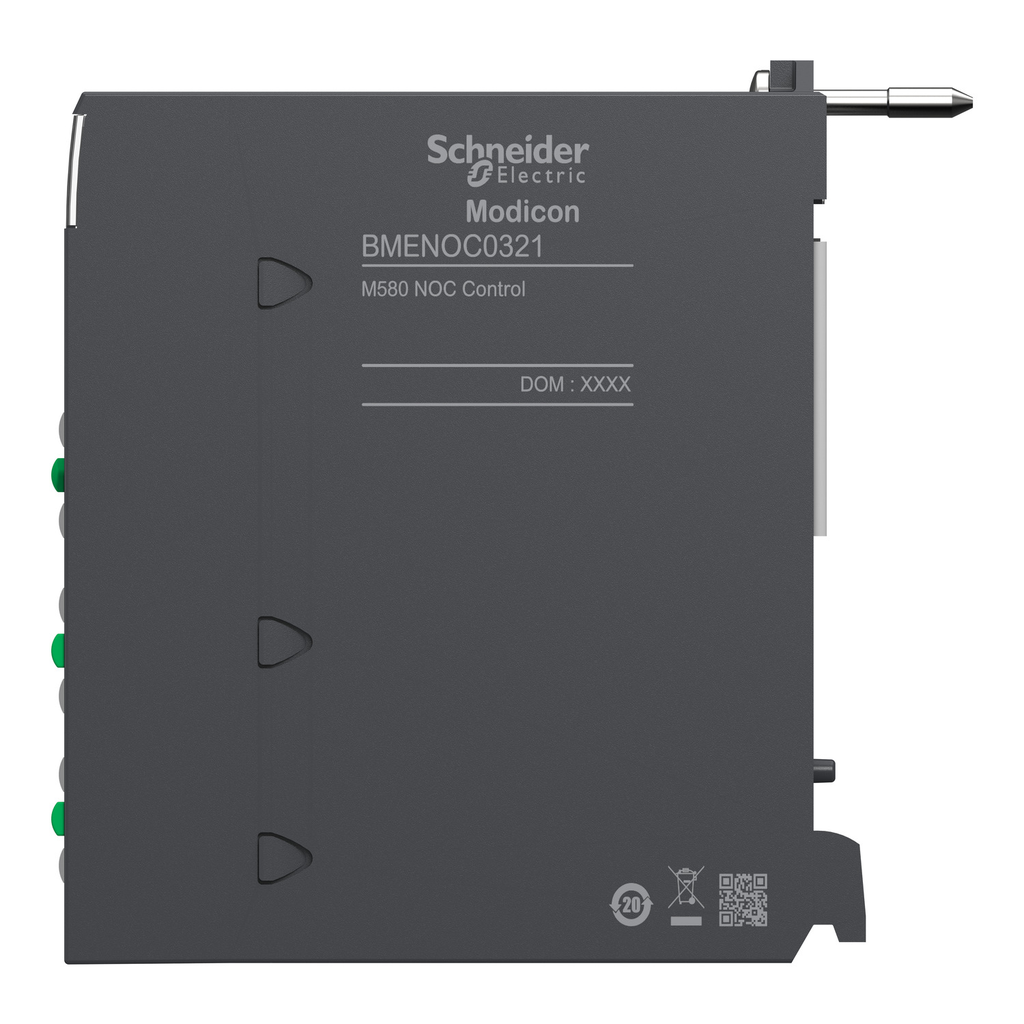

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This communication module has 3 subnets with IP forwarding function. It is integrated with 3 Ethernet RJ45 connectors. Communication services are bandwidth management, FDR server, Modbus TCP I/O scanner and messaging, EtherNet/IP I/O scanner and messaging, embedded 4-port switch, RSTP support and IP forwarding. It is a communication module with a current consumption of 555mA, works with internal power supply. It is an IP20 rated product. It weighs 0.2kg. It is suitable for medium to large process applications. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This connection sub-base is compatible with BMEXBPxxx - Ethernet + X-bus rack. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Specifications
• Country of Origin : France
• Weight : 0.2 kg
• Range Of Product : Modicon M580
• Product Or Component Type : communication module
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2402021EN
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile : ENVEOLI2402021EN
• Take-Back : No
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 183.95
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 17.436
• Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
• Carbon Footprint Of The Installation Phase [A5] : 0.1 kg CO2 eq.
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 202 kg CO2 eq.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.412
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 201.933385999999
• Complementary
• Web Services : FactoryCast configurable
• Supply : internal power supply via rack
• Product Compatibility : BMEXBP... - Ethernet + X-bus rack
• Current Consumption : 1800 mA 3.3 V DC
• Transmission Support Medium : Ethernet backplane
• Net Weight : 0.2 kg
• Communication Service : bandwidth management || FDR server || Modbus TCP I/O Scanner and Messaging || Ethernet/IP I/O Scanner and Messaging || embedded 4-port switch || RSTP support || IP forwarding
• Local Signalling : 1 LED (green) for processor running (RUN) || 1 LED (red) for processor or system fault (ERR) || 1 LED (green/red) for ETH MS (Ethernet port configuration status) || 1 LED (green/red) for Eth NS (Ethernet network status) || 1 LED (green/red) for Eth NS1 (Ethernet network status) || 1 LED (green/red) for Eth NS2 (Ethernet network status)
• Integrated Connection Type : 3 Ethernet RJ45 10/100/1000 Mbps double shielded twisted pair
• Memory Usage : application saving || activating the advanced web server
• Web Server : advanced
• Environment
• Ambient Air Temperature For Operation : 0-60 °C
• Marking : CE
• Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
• Protective Treatment : TC
• Ip Degree Of Protection : IP20
