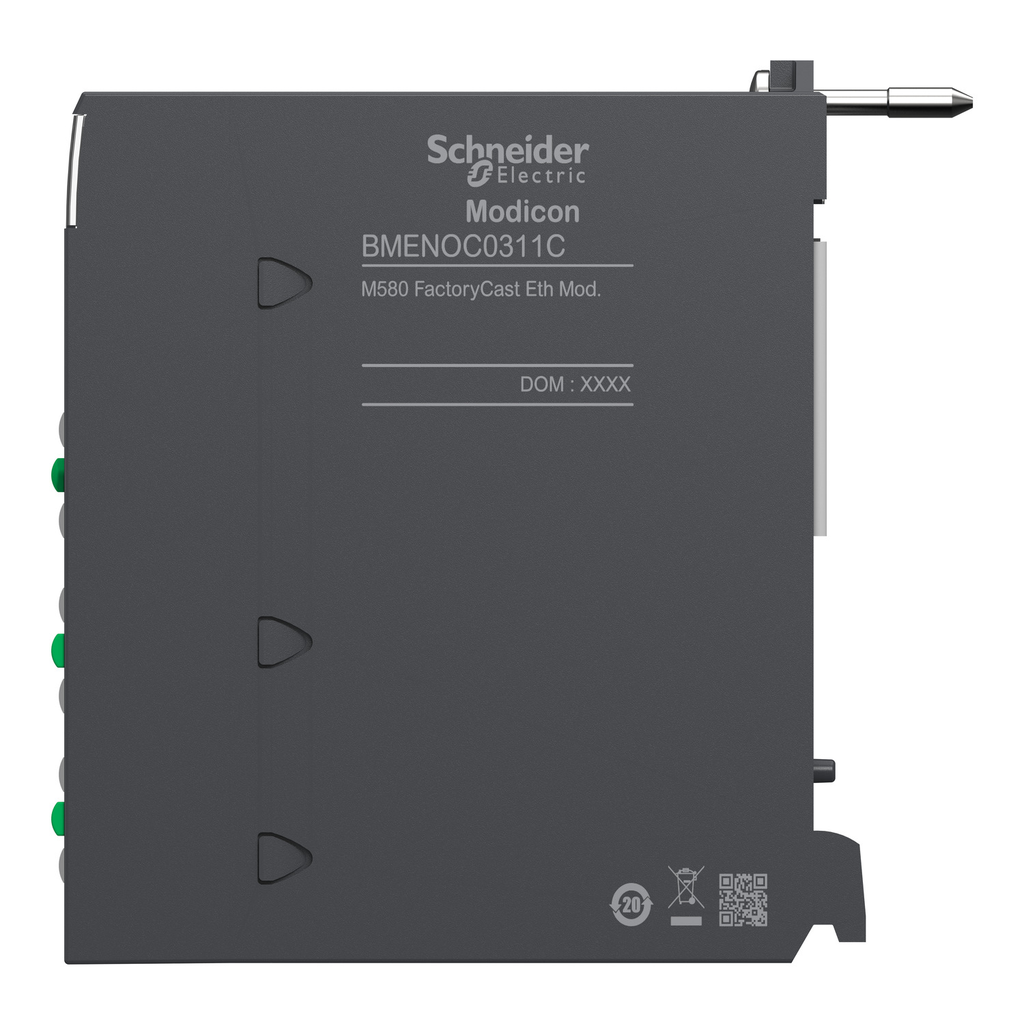

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This Ethernet FactoryCast module acts as an interface between the M580 PLC and other Ethernet network devices in severe environments. It provides web-based visualization of ePAC diagnostics and system data Thanks to a protective coating on its circuit board, this product can be used in harsh environments. Web-based visualization services are custom web pages, rack viewer, ePAC program viewer, customizable dashboard, trand viewer etc. It is a communication module with a current consumption of 555mA, works with internal power supply. It is an IP20 rated product. It weighs 0.2kg. It is suitable for medium to large process applications. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This connection sub-base is compatible with BMEXBPxxx - Ethernet + X-bus rack. The module is delivered in 1 packing unit. It occupies one slot on the rack. The benefits of Modicon M580 are reduced time to market, improved reliability and sustainability, improved productivity with high performance and increased operating profitability due to efficient access to data. The benefits of Modicon M580 are reduced time to market, improved productivity with high performance and increased operating profitability due to improved access to data.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary
• Web Services : FactoryCast configurable
• Supply : internal power supply via rack
• Product Compatibility : BMEXBP... - Ethernet + X-bus rack
• Current Consumption : 900 mA 3.3 V DC for product version >= 13) || 1800 mA 3.3 V DC for product version < 13)
• Transmission Support Medium : Ethernet backplane
• Net Weight : 0.2 kg
• Communication Service : bandwidth management || FDR server || SNMP network administrator || Modbus TCP I/O Scanner and Messaging || Ethernet/IP I/O Scanner and Messaging || RSTP support || port mirroring || embedded multiport switch
• Local Signalling : 1 LED (green) for processor running (RUN) || 1 LED (red) for processor or system fault (ERR) || 1 LED (green/red) for ETH MS (Ethernet port configuration status) || 1 LED (green/red) for Eth NS (Ethernet network status)
• Integrated Connection Type : 3 Ethernet RJ45 10/100 Mbit/s double shielded twisted pair
• Web Server : advanced
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2402021EN
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile : ENVEOLI2402021EN
• Take-Back : No
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 132.444
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 17.980875
• Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
• Carbon Footprint Of The Installation Phase [A5] : 0.1 kg CO2 eq.
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 151 kg CO2 eq.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.424875
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 150.9893668125
• Specifications
• Country of Origin : France
• Weight : 0.2 kg
• Range Of Product : Modicon M580
• Product Or Component Type : communication module
• Environment
• Ambient Air Temperature For Operation : 0-60 °C
• Standards : EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G || EN/IEC 60079-0
• Product Certifications : CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22
• Marking : CE
• Environmental Characteristic : gas resistant class Gx ISA S71.04 || gas resistant class 3C4 IEC 60721-3-3 || dust resistant class 3S4 IEC 60721-3-3 || sand resistant class 3S4 IEC 60721-3-3 || salt resistant level 2 IEC 68252 || mold growth resistant class 3B2 IEC 60721-3-3 || fungal spore resistant class 3B2 IEC 60721-3-3 || hazardous location class I division 2
• Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive
• Protective Treatment : conformal coating
• Ip Degree Of Protection : IP20
