SQUARE D

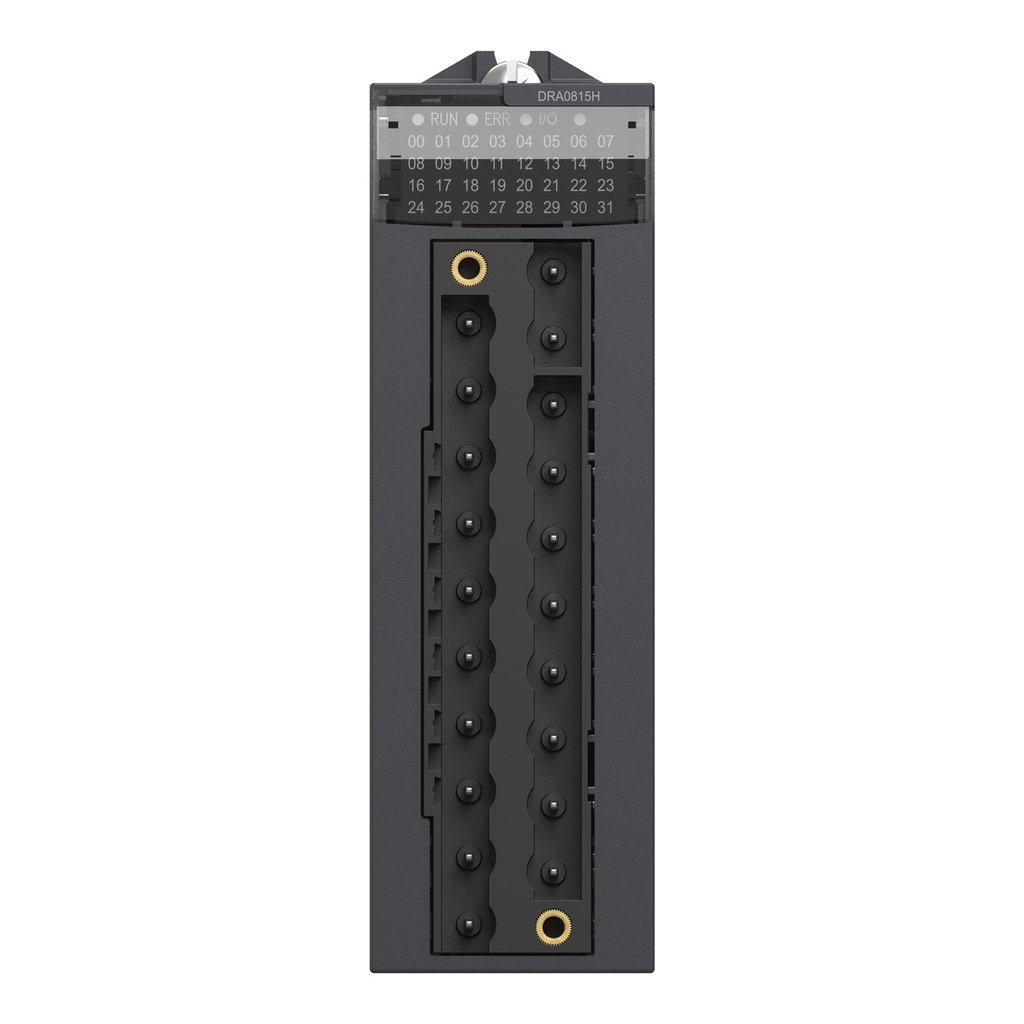

Discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC / 24 to 125V DC, for severe environments

Discrete output module, Modico

SQDBMXDRA0815H BMXDRA0815H 3606481275615
626.40 / EA
http://schema.org/OutOfStock
Mayer-DDS-Discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC / 24 to 125V DC, for severe environments-1
  • Dielectric Strength: 1780 V, 50/60 Hz
This discrete relay output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 normally open isolated relay outputs and it is supplied with 24 to 240V AC/24 to 125V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 3223310 hours of MTBF. This discrete module has a weight of 0.210kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0815H_3D-simpl&p_File_name=BMXDRA0815H_3D-Simpl.stp, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0815H_3D-simpl&p_File_name=BMXDRA0815H_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0815H_3D-simpl&p_File_name=BMXDRA0815H_2d-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0815H_3D-simpl&p_File_name=BMXDRA0815H_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0815H_3D-simpl&p_File_name=BMXDRA0815H_2d-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0815H_3D-simpl&p_File_name=BMXDRA0815H_2D-isom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0815H_3D-simpl&p_File_name=BMXDRA0815H_2d-isom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0815H_3D-simpl&p_File_name=BMXDRA0815H_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0815H_3D-simpl&p_File_name=BMXDRA0815H_2d-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0815H_3D-simpl&p_File_name=BMXDRA0815H_2D-rear.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0815H_3D-simpl&p_File_name=BMXDRA0815H_2d-rear.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0815H_3D-simpl&p_File_name=BMXDRA0815H_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0815H_3D-simpl&p_File_name=BMXDRA0815H_2d-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0815H_3D-simpl&p_File_name=BMXDRA0815H_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0815H_3D-simpl&p_File_name=BMXDRA0815H_2d-top.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0815H_3D-simpl&p_File_name=BMXDRA0815(H)_terminal_block_lable.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000263_3D-CAD
  • Complementary Attributes
    • Minimum Switching Current : 1 mA 5 V DC
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Electrical Durability : AC-12 300000 cycles 28.8 VA 48 V 70-70 °C, AC-12 300000 cycles 132 VA 200...250 V 70-70 °C, AC-15 200000 cycles 48 VA 24 V -25-60 °C 0.4 ), AC-15 200000 cycles 28.8 VA 24 V 70-70 °C 0.4 ), AC-15 700000 cycles 10 VA 48 V -25-60 °C 0.4 ), AC-15 700000 cycles 6 VA 48 V 70-70 °C 0.4 ), AC-15 500000 cycles 24 VA 48 V -25-60 °C 0.4 ), AC-15 500000 cycles 14.4 VA 48 V 70-70 °C 0.4 ), AC-15 300000 cycles 48 VA 48 V -25-60 °C 0.4 ), AC-15 300000 cycles 28.8 VA 48 V 70-70 °C 0.4 ), AC-15 100000 cycles 57.6 VA 48 V 70-70 °C 0.4 ), AC-15 1000000 cycles 6 VA 100...120 V 70-70 °C 0.4 ), AC-15 200000 cycles 110 VA 100...120 V -25-60 °C 0.4 ), AC-15 200000 cycles 66 VA 100...120 V 70-70 °C 0.4 ), AC-15 70000 cycles 132 VA 100...120 V 70-70 °C 0.4 ), AC-15 1000000 cycles 10 VA 200...250 V -25-60 °C 0.4 ), AC-15 1000000 cycles 6 VA 200...250 V 70-70 °C 0.4 ), AC-15 500000 cycles 50 VA 200...250 V -25-60 °C 0.4 ), AC-15 500000 cycles 30 VA 200...250 V 70-70 °C 0.4 ), AC-15 200000 cycles 110 VA 200...250 V -25-60 °C 0.4 ), AC-15 200000 cycles 66 VA 200...250 V 70-70 °C 0.4 ), AC-15 150000 cycles 220 VA 200...250 V -25-60 °C 0.4 ), AC-15 150000 cycles 132 VA 200...250 V 70-70 °C 0.4 ), DC-12 150000 cycles 24 W 48...60 V 70-70 °C, DC-13 60000 cycles 24 W 24 V -25-60 °C, DC-13 60000 cycles 14.4 W 24 V 70-70 °C, DC-13 40000 cycles 28.8 W 24 V 70-70 °C, DC-13 40000 cycles 40 W 48...60 V -25-60 °C, DC-13 40000 cycles 24 W 48...60 V 70-70 °C, DC-13 40000 cycles 15 W 100...125 V 70-70 °C, AC-12 200000 cycles 48 VA 24 V -25-60 °C, AC-12 200000 cycles 28.8 VA 24 V 70-70 °C, AC-12 300000 cycles 48 VA 48 V -25-60 °C, AC-12 150000 cycles 96 VA 48 V -25-60 °C, AC-12 150000 cycles 57.6 VA 48 V 70-70 °C, AC-12 300000 cycles 110 VA 100...120 V -25-60 °C, AC-12 300000 cycles 66 VA 100...120 V 70-70 °C, AC-12 150000 cycles 220 VA 100...120 V -25-60 °C, AC-12 150000 cycles 132 VA 100...120 V 70-70 °C, AC-12 300000 cycles 220 VA 200...250 V -25-60 °C, AC-12 150000 cycles 500 VA 200...250 V -25-60 °C, AC-12 150000 cycles 300 VA 200...250 V 70-70 °C, AC-15 700000 cycles 10 VA 24 V -25-60 °C 0.4 ), AC-15 700000 cycles 6 VA 24 V 70-70 °C 0.4 ), AC-15 500000 cycles 24 VA 24 V -25-60 °C 0.4 ), AC-15 500000 cycles 14.4 VA 24 V 70-70 °C 0.4 ), AC-15 100000 cycles 96 VA 48 V -25-60 °C 0.4 ), AC-15 1000000 cycles 10 VA 100...120 V -25-60 °C 0.4 ), AC-15 300000 cycles 50 VA 100...120 V -25-60 °C 0.4 ), AC-15 300000 cycles 30 VA 100...120 V 70-70 °C 0.4 ), AC-15 70000 cycles 220 VA 100...120 V -25-60 °C 0.4 ), DC-12 200000 cycles 24 W 24 V -25-60 °C, DC-12 200000 cycles 14.4 W 24 V 70-70 °C, DC-12 150000 cycles 48 W 24 V -25-60 °C, DC-12 150000 cycles 28.8 W 24 V 70-70 °C, DC-12 150000 cycles 40 W 48...60 V -25-60 °C, DC-12 100000 cycles 45 W 100...125 V -25-60 °C, DC-12 60000 cycles 45 W 100...125 V 70-70 °C, DC-13 100000 cycles 10 W 24 V -25-60 °C, DC-13 100000 cycles 6 W 24 V 70-70 °C, DC-13 40000 cycles 48 W 24 V -25-60 °C, DC-13 100000 cycles 15 W 100...125 V -25-60 °C
    • Environmental Characteristic : gas resistant class Gx, gas resistant class 3C4, dust resistant class 3S4, sand resistant class 3S4, salt resistant level 2, mold growth resistant class 3B2, fungal spore resistant class 3B2
    • Insulation Resistance : > 10 MOhm 500 V DC, > 10 MOhm 500 V DC, > 10 MOhm 500 V DC, > 10 MOhm 500 V DC
    • Protection Type : external short-circuit protection, external overload protection, external overvoltage protection, inductive AC, external overvoltage protection, inductive DC
    • Status Led : 1 LED (Green) RUN, 1 LED per channel (Green) channel diagnostic, 1 LED (Red) ERR, 1 LED (Red) I/O
    • Typical Current Consumption : 40 mA 3.3 V DC, 101 mA 24 V DC
    • Voltage Range : 5...150 V, 19...264 V
    • Carbon Footprint Of The Distribution Phase A4 : 0.0270680727, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.3673058182
    • Carbon Footprint Of The Installation Phase A5 : 0.0551197091, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 26 kg CO2 eq., 26.4483272727
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 131 kg CO2 eq., 131.3855461847
    • Discrete Output Voltage 16 : 24...240 V 19...264 V AC, 24...125 V 5...150 V DC
    • Medium Desc : Discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC / 24 to 125V DC, for severe environments
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-02-13
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : N
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2311046EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Dielectric Strength : 1780 V AC 50/60 Hz 1 min
    • Electrical Connection : 20 ways terminal block
    • Mtbf Reliability : 3200000 H
    • Network Frequency : 50/60 Hz
    • Network Frequency Limits : 47-63 Hz
    • Power Dissipation In W : 3.6 W
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : relay discrete output module
    • Product Specific Application : for severe environments
    • Protective Treatment : conformal coating
    • Range Of Product : Modicon X80
    • Returnability : Yes
    • Shock Resistance : 30 gn
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 158 kg CO2 eq.
    • Vibration Resistance : 3 gn
    • Ith Conventional Free Air Thermal Current : 3 A
    • Pep Code : ENVPEP2311046EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; FR
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
  • Environment Attributes Main
    • Operating Altitude : 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 158.2833670574
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Circularity Profile : ENVEOLI2311046EN
    • Environmental Disclosure : ENVPEP2311046EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % 60-60 °C without condensation
    • Pep Code : ENVPEP2311046EN
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : relay discrete output module
    • Range Of Product : Modicon X80
  • ETIM
    • ETIM 8 : EC001419
    • ETIM 9 : EC001419
  • Output Attributes
    • Discrete Output Voltage : 24...240 V 19...264 V AC, 24...125 V 5...150 V DC
    • Output Overvoltage Protection : use discharge diode on each output DC, use RC circuit on each output AC, use ZNO surge limiter on each output AC
    • Response Time On Output : <= 10 ms activation, <= 10 ms activation, <= 13 ms deactivation, <= 13 ms deactivation, <= 10 ms activation, <= 10 ms activation, <= 13 ms deactivation, <= 13 ms deactivation
    • Discrete Output Logic : positive
    • Discrete Output Number : 8 IEC 61131-2
    • Discrete Output Type : relay
    • Output Overload Protection : use 1 fast blow fuse per channel or group of channel
    • Output Short Circuit Protection : use 1 fast blow fuse per channel or group of channel
