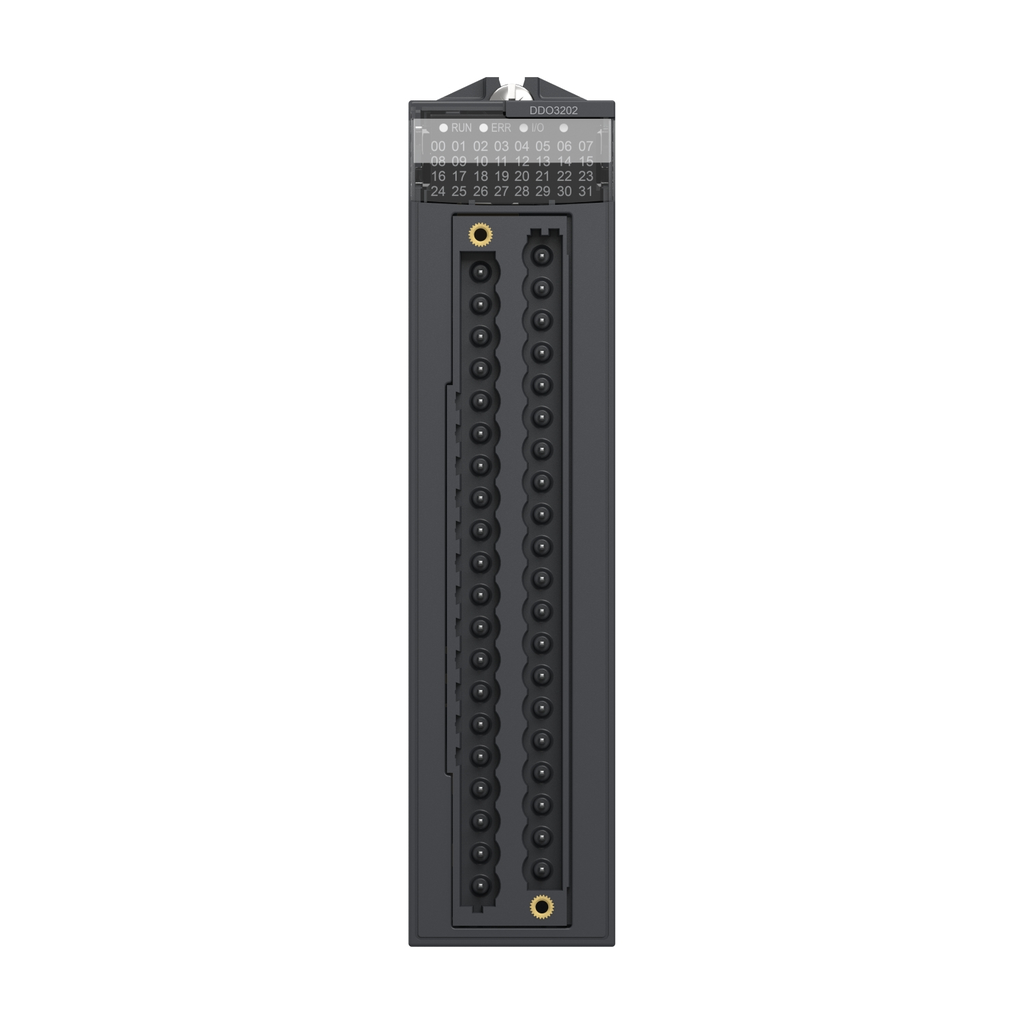

Discrete output module, Modicon X80, 32 transistor outputs, 12/24V DC

Discrete output module, Modico

SQDBMXDDO3202 BMXDDO3202 3606482177963
1086.03 / EA
http://schema.org/OutOfStock
Mayer-DDS-Discrete output module, Modicon X80, 32 transistor outputs, 12/24V DC-2
  • Country of Origin: Indonesia
  • Dielectric Strength: 1780 V, 50/60 Hz
  • Net Weight: 142.01 g
  • Weight: 142.01 g
This discrete transistor output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product has 32 isolated outputs and it is supplied with 12/24V DC (positive). This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. Its casing provides IP20 protection of the electronics. This discrete module has a weight of 0.110kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 40-way caged or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
QTY
  • Product Description
  • Specifications
This discrete transistor output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product has 32 isolated outputs and it is supplied with 12/24V DC (positive). This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. Its casing provides IP20 protection of the electronics. This discrete module has a weight of 0.110kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 40-way caged or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
  • Complementary
    • Mtbf Reliability : 833000 H
    • Maximum Current Per Module : 17.6 A
    • Switching Frequency : 0.5/LI² Hz
    • Status Led : 1 LED (Green) module operating (RUN) || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) module error (ERR) || 1 LED (Red) module I/O
    • Current Per Channel : 0.55 A
    • Voltage Detection Threshold : < 14 V DC preactuator fault || > 18 V DC preactuator at state 0
    • Maximum Voltage Drop : <1.2 V at state 1
    • Insulation Resistance : > 10 MOhm 500 V DC
    • Protection Type : external fuse reverse polarity protection || short-circuit protection || overload protection || overvoltage protection
    • Power Dissipation In W : 4.8 W
    • Net Weight : 142.01 g
    • Maximum Leakage Current : 0.1 mA at state 0
    • Load Impedance Ohmic : > 54.54 Ohm
    • Paralleling Of Outputs : yes : 3 maximum
    • Typical Current Consumption : 56 mA 3.3 V DC
    • Output Overvoltage Protection : with transil diode
    • Output Short-Circuit Protection : with external fuse
    • Output Overload Protection : with electronic circuit breaker 1.5 In < Id < 2 In || with current limiter
    • Maximum Tungsten Load : 6 W 24 V || 3 W 12 V
    • Reverse Polarity Protection : reverse mounted diode
    • Response Time On Output : 0.3 ms
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2402023EN
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Circularity Profile : ENVEOLI2402023EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 13.932894736842107
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 17.520166666666668
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0.3 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 32 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.36382633333333336
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 32.121059736842106
  • Specifications
    • Country of Origin : Indonesia
    • Weight : 142.01 g
    • Discrete Output Type : solid state
    • Range Of Product : Modicon X80
    • Discrete Output Number : 32 EN/IEC 61131-2
    • Discrete Output Logic : positive
    • Discrete Output Voltage : 12...24 V 10.8...30 V DC
    • Product Or Component Type : discrete output module
    • Discrete Output Current : 0.5 A
  • Environment
    • Ambient Air Temperature For Operation : 0-60 °C
    • Shock Resistance : 30 gn
    • Dielectric Strength : 1780 V AC 50/60 Hz 1 minute, output/ground || 1 minute, output/internal logic
    • Vibration Resistance : 3 gn
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 5-95 % 55-55 °C without condensation
    • Operating Altitude : 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
    • Ip Degree Of Protection : IP20
