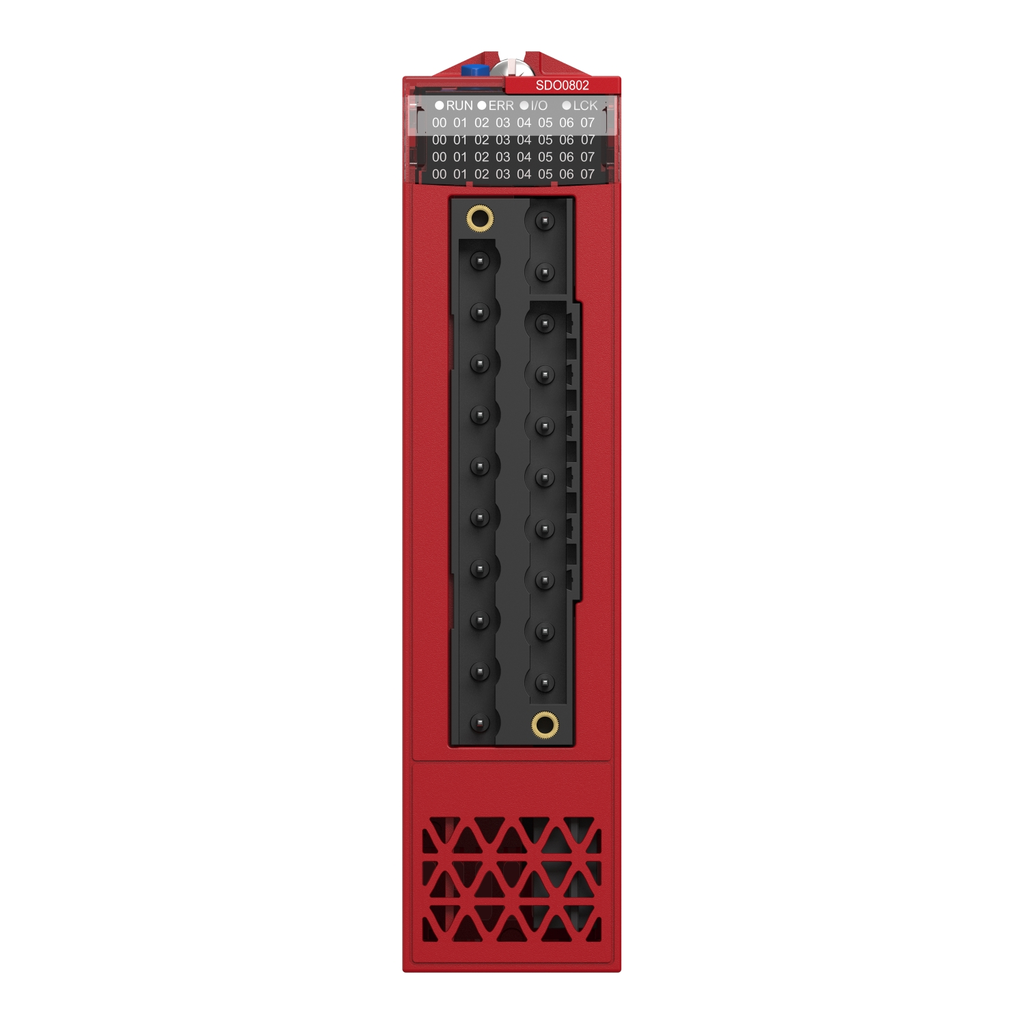

This cord set is part of the Modicon X80 range, an offer of common modules and installation accessories for M580 and M340 automation platforms. This discrete output module offers 8 positive discrete output logic. It offers discrete output voltage ranges from 19V DC to 30V DC, 24V DC with solid state and not isolated discrete output. It is an IP20 rated product. It weighs 0.12kg. It is to be used with BMXFTB2010 screw clamp type terminal block. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock. The Modicon X80 range is one important part of EcoStruxure Plant, an open, flexible, reliable, sustainable, safe and secure architecture.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Voltage Drop : <1.2 V at state 1, <1.2 V at state 1, <1.2 V at state 1, <1.2 V at state 1
• Maximum Current Per Module : 10 A
• Maximum Leakage Current : 0.5 mA at state 0
• Maximum Tungsten Load : 6 W
• Important Information Attributes
• Persona Type Ids : EU, OM8, SI
• Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
• Dielectric Strength : 1500 V AC 50/60 Hz 1 minute, output/ground, 1500 V AC 50/60 Hz 1 minute, output/internal logic
• Environmental Characteristic : gas resistant class Gx, gas resistant class 3C4, dust resistant class 3S4, sand resistant class 3S4, salt resistant level 2, mold growth resistant class 3B2, fungal spore resistant class 3B2
• Insulation Resistance : > 10 MOhm 500 V DC, > 10 MOhm 500 V DC, > 10 MOhm 500 V DC, > 10 MOhm 500 V DC
• Protection Type : reverse polarity protection, overload protection, overvoltage protection, short-circuit protection
• Status Led : 1 LED (Green) module operating (RUN), 1 LED per channel (Green) channel diagnostic, 1 LED (Red) module error (ERR), 1 LED (Red) module I/O
• Typical Current Consumption : 264 mA 3.3 V DC, 15 mA 24 V
• Voltage Detection Threshold : < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC sensor OK, > 18 V DC sensor OK
• Carbon Footprint Of The Distribution Phase A4 : 0.04459143333333333, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.4002089666666667
• Carbon Footprint Of The Installation Phase A5 : 0.2899977666666667, 0.3 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 19 kg CO2 eq., 19.27218333333333
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 186 kg CO2 eq., 185.77192982456145
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-23
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Legacy Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2402023EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2438
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Current Per Channel : 0.625 A
• Load Impedance Ohmic : >= 48 Ohm
• Mtbf Reliability : 383000 H
• Power Dissipation In W : 4.4 W
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : discrete output module
• Protective Treatment : conformal coating
• Range Of Product : Modicon X80
• Returnability : Yes
• Reverse Polarity Protection : reverse mounted diode
• Shock Resistance : 15 gn
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Switching Frequency : 0.5/LI² Hz
• Total Lifecycle Carbon Footprint : 206 kg CO2 eq.
• Vibration Resistance : 3 gn
• Warranty In Months : 18
• Pep Code : ENVPEP2402023EN
• Database Version : 2022-01
• Pep Verification Date : 2023-11-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : The module detect the AC discrete input signal and convert it to the logic state , to be processed by PLC processor. This module as the Modicon X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 0.2508W (0.76 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Product Weight In G2 : 341
• Reference Lifetime In Y2 : 10
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; US
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; US
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; US
• Offer Owner Code : 190786
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 2 : 241.0529
• Environment Attributes Main
• Operating Altitude : 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 205.77891132456145
• Ambient Air Temperature For Operation : -25-60 °C
• Ambient Air Temperature For Storage : -40-85 °C
• Circularity Profile : ENVEOLI2402023EN
• Environmental Disclosure : ENVPEP2402023EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 5-95 % 55-55 °C without condensation
• Pep Code : ENVPEP2402023EN
• Pep Verification Date : 2023-11-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : discrete output module
• Range Of Product : Modicon X80
• ETIM
• ETIM 8 : EC001419
• ETIM 9 : EC001419
• Output Attributes
• Discrete Output Type : solid state, not isolated
• Output Compatibility : not IEC 61131-2 DC input, IEC 61131-2 type 3 DC input
• Output Overload Protection : with current limiter, with electronic circuit breaker 1.5 In < Id < 2 In
• Discrete Output Current : 0.5 A
• Discrete Output Logic : positive
• Discrete Output Number : 8 IEC 61131-2
• Discrete Output Voltage : 24 V 19...30 V DC
• Output Overvoltage Protection : with transil diode
• Output Short Circuit Protection : with 2 A external fuse
• Paralleling Of Outputs : yes : 2 maximum
• Response Time On Output : 1.2 ms
