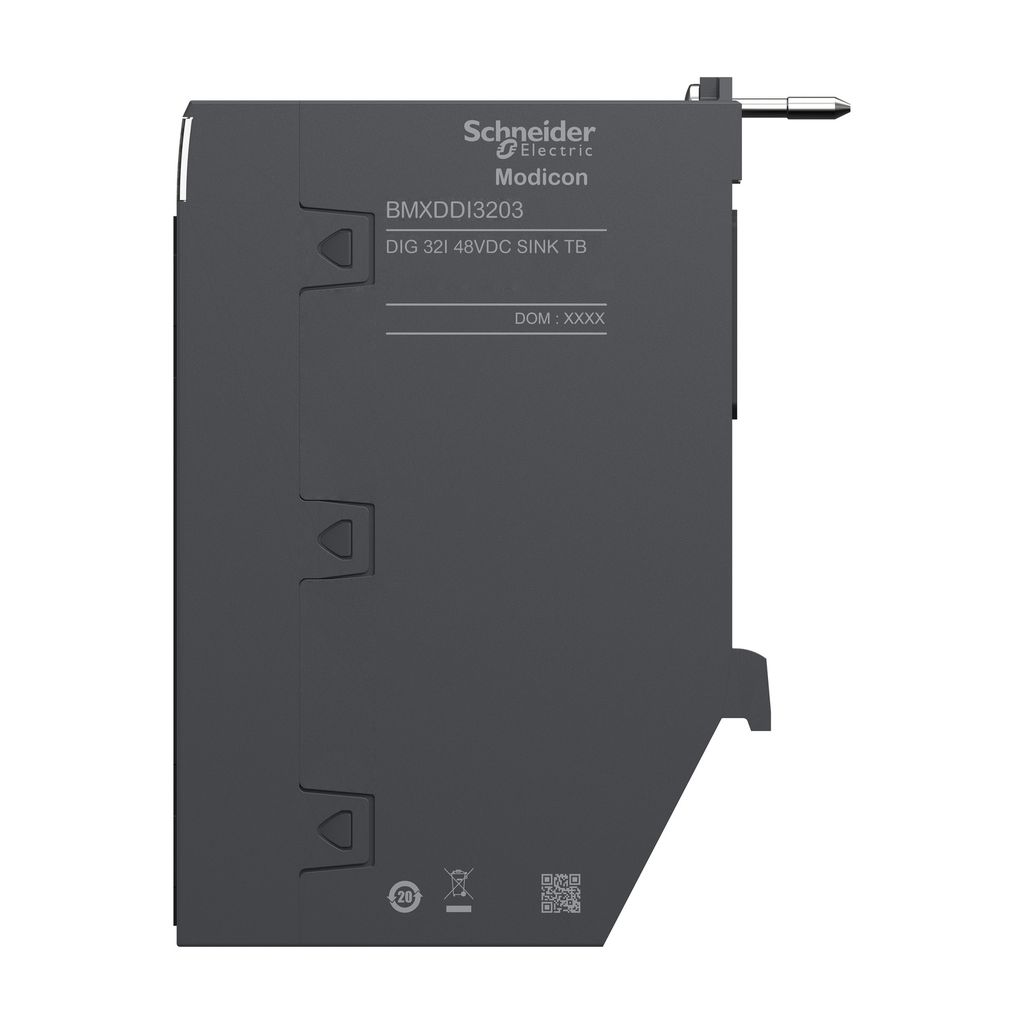

discrete input module, Modicon X80, 32 inputs, 48V DC positive

DISCRETE INPUT MODULE X80 - 32

SQDBMXDDI3203 BMXDDI3203 SQDBMXDDI3203
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-discrete input module, Modicon X80, 32 inputs, 48V DC positive-2
  • Country of Origin: Indonesia
  • Dielectric Strength: 1500 V, 50/60 Hz
  • Net Weight: 0.137 kg
  • Warranty Length: 18 mth
  • Weight: 0.137 kg
This discrete input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 32 input channels and it is supplied with 48V DC (positive). This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 2440989 hours of MTBF. This discrete module has a weight of 0.137kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 type 3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 40-way caged or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
QTY
  • Product Description
  • Features
  • Specifications
This discrete input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 32 input channels and it is supplied with 48V DC (positive). This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 2440989 hours of MTBF. This discrete module has a weight of 0.137kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 type 3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 40-way caged or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Ambient Air Temperature For Operation : 0-60 °C
    • Shock Resistance : 30 gn
    • Dielectric Strength : 1500 V AC 50/60 Hz 1 minute, primary/secondary || 1500 V AC 50/60 Hz 1 minute, between group of channels
    • Vibration Resistance : 3 gn
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 5-95 % -25-70 °C without condensation
    • Operating Altitude : 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
    • Ip Degree Of Protection : IP20
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2402023EN
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : 43b0fbab-d94b-43e8-be0a-0b39cadd288b
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2402023EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 13.932894736842108
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 17.40713333333333
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0.3 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 32 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.3614790666666667
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 32.0037167368421
  • Complementary
    • Mtbf Reliability : 2500000 H
    • Voltage Range : 38...60 V
    • Status Led : 1 LED (Green) module operating (RUN) || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) module error (ERR) || 1 LED (Red) module I/O
    • Voltage Detection Threshold : < 24 V DC sensor fault || > 36 V DC sensor OK
    • Insulation Resistance : > 10 MOhm 500 V DC
    • Current State 1 Guaranteed : >= 2 mA
    • Protection Type : 1 external fuse per group of channel 0.5 A fast blow || reverse polarity protection
    • Power Dissipation In W : 6 W
    • Net Weight : 0.137 kg
    • Voltage State 0 Guaranteed : <= 10 V
    • Paralleling Of Outputs : yes
    • Dc Typical Filtering Time : 4 ms
    • Voltage State 1 Guaranteed : > 30 V
    • Input Compatibility : with 2-wire/3-wire proximity sensors IEC 61131-2 type 3
    • Typical Current Consumption : 100 mA 3.3 V DC
    • Current State 0 Guaranteed : <= 1.5 mA
    • Input Impedance : 20960 Ohm
    • Dc Maximum Filtering Time : 7 ms
  • Specifications
    • Country of Origin : Indonesia
    • Weight : 0.137 kg
    • Range Of Product : Modicon X80
    • Discrete Input Voltage : 48 V DC positive
    • Product Or Component Type : discrete input module
    • Input Type : current sink (logic positive)
    • Discrete Input Type : isolated
    • Discrete Input Number : 32
    • Discrete Input Current : 2.3 mA
