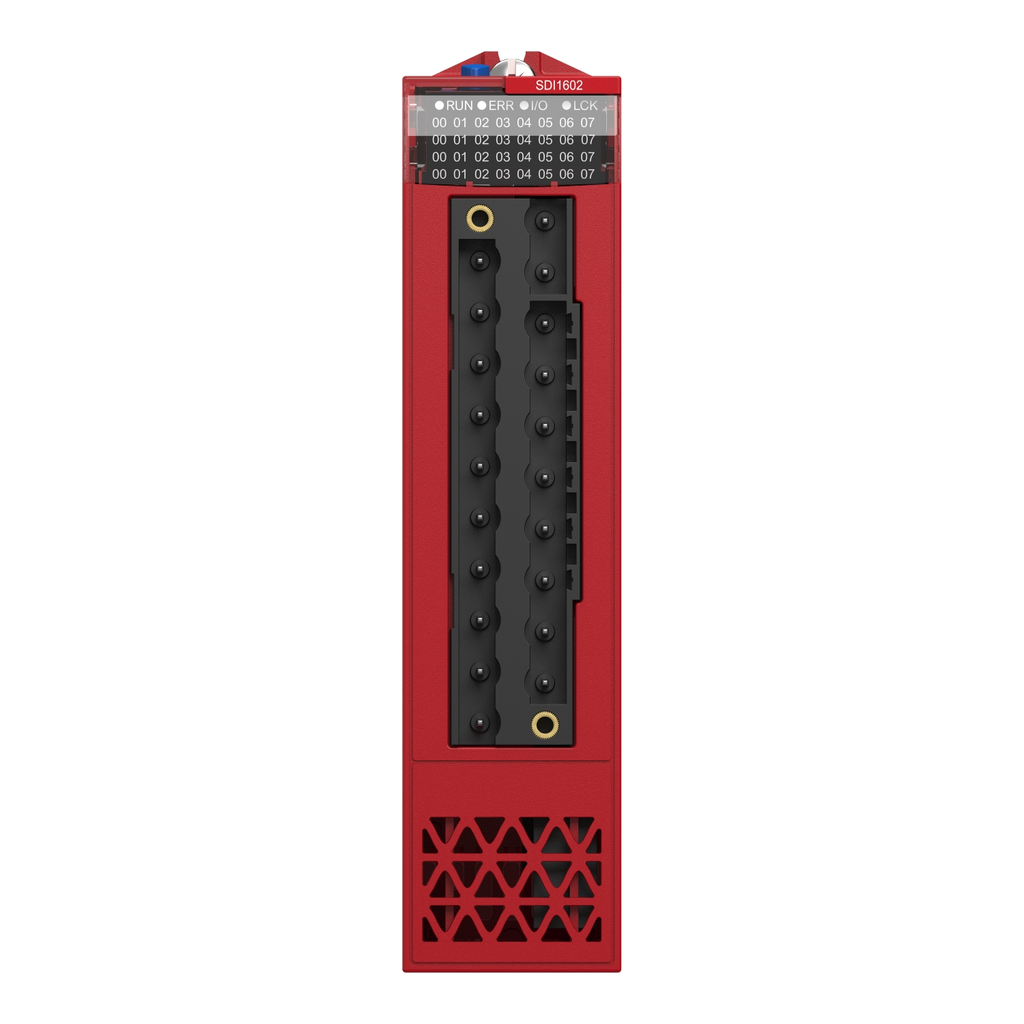

safety discrete input module, Modicon X80, 16 inputs, 24V DC positive

SAFETY DIG 16I 24VDC SINK SIL

SQDBMXSDI1602 BMXSDI1602 3606481204912
1694.94 / EA
http://schema.org/OutOfStock
Mayer-DDS-safety discrete input module, Modicon X80, 16 inputs, 24V DC positive-2
  • Country of Origin: France
  • Dielectric Strength: 1500 V, 50/60 Hz
  • Net Weight: 0.115 kg
  • Weight: 0.115 kg
This cord set is part of the Modicon X80 range, an offer of common modules and installation accessories for M580 and M340 automation platforms. This discrete input module offers 16 inputs with positive discrete input logic. It is a module with discrete input voltage of 24V DC with current sink positive logic. It is the Modicon digital input module dedicated to M580 safety systems. It features 16 Type 3 inputs, in two groups of 8 non-isolated inputs. It is an IP20 rated product. It weighs 0.115kg. It is suitable for safety most demanding applications. This product is certified by CE and UL, and also by ATEX and IECEx for use in explosive atmospheres. It complies up to SIL 3, Category 4, PLd. It is to be used with BMXFTB2000 caged terminal block. The I/O module height is larger than the height of a rack (Ethernet or X-bus) and should be considered before installing the rack. It can be installed either in a local or a remote rack. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock. The Modicon X80 range is one important part of EcoStruxure Plant, an open, flexible, reliable, sustainable, safe and secure architecture.
QTY
  • Product Description
  • Features
  • Specifications
This cord set is part of the Modicon X80 range, an offer of common modules and installation accessories for M580 and M340 automation platforms. This discrete input module offers 16 inputs with positive discrete input logic. It is a module with discrete input voltage of 24V DC with current sink positive logic. It is the Modicon digital input module dedicated to M580 safety systems. It features 16 Type 3 inputs, in two groups of 8 non-isolated inputs. It is an IP20 rated product. It weighs 0.115kg. It is suitable for safety most demanding applications. This product is certified by CE and UL, and also by ATEX and IECEx for use in explosive atmospheres. It complies up to SIL 3, Category 4, PLd. It is to be used with BMXFTB2000 caged terminal block. The I/O module height is larger than the height of a rack (Ethernet or X-bus) and should be considered before installing the rack. It can be installed either in a local or a remote rack. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock. The Modicon X80 range is one important part of EcoStruxure Plant, an open, flexible, reliable, sustainable, safe and secure architecture.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Specifications
    • Country of Origin : France
    • Weight : 0.115 kg
    • Range Of Product : Modicon X80
    • Discrete Input Voltage : 24 V DC positive
    • Product Or Component Type : discrete input module
    • Input Type : current sink (logic positive)
    • Discrete Input Type : not isolated
    • Discrete Input Number : 16
    • Discrete Input Current : 3.2 mA
  • Environment
    • Ambient Air Temperature For Operation : -25-60 °C
    • Shock Resistance : 15 gn
    • Environmental Characteristic : gas resistant class Gx || gas resistant class 3C4 || dust resistant class 3S4 || sand resistant class 3S4 || salt resistant level 2 || mold growth resistant class 3B2 || fungal spore resistant class 3B2
    • Dielectric Strength : 1500 V AC 50/60 Hz 1 minute, primary/secondary
    • Vibration Resistance : 3 gn
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 5-95 % 55-55 °C without condensation
    • Operating Altitude : 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
    • Protective Treatment : conformal coating
    • Ip Degree Of Protection : IP20
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2402023EN
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : 43b0fbab-d94b-43e8-be0a-0b39cadd288b
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2402023EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 150.72858851674644
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 19.102633333333333
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0.3 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 171 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.39668806666666667
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 170.55955551674643
  • Complementary
    • Mtbf Reliability : 265000 H
    • Voltage Range : 19...30 V
    • Status Led : 1 LED (Green) module operating (RUN) || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) module error (ERR) || 1 LED (Red) module I/O
    • Voltage Detection Threshold : < 14 V DC sensor fault || > 18 V DC sensor OK
    • Insulation Resistance : > 10 MOhm 500 V DC
    • Current State 1 Guaranteed : >= 2 mA
    • Protection Type : reverse polarity protection || external overload protection 0.5 A fast blow
    • Power Dissipation In W : 3.57 W
    • Net Weight : 0.115 kg
    • Paralleling Of Inputs : yes
    • Dc Typical Filtering Time : 6 ms
    • Input Compatibility : with 2-wire/3-wire proximity sensors IEC 60947-5-2
    • Typical Current Consumption : 256 mA 3.3 V DC || 100 mA 24 V
    • Current State 0 Guaranteed : <= 1.5 mA
    • Input Impedance : 7500 Ohm
    • Dc Maximum Filtering Time : 6 ms
