TeSys island direct SIL starter, 3 poles, 9A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 9A and motors up to 4kW@400V / 5hp@480V. In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508. It provides motor protection functions including thermal overload (setting 0.18-9A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).

• Features
• Contactless integrated upstream voltage presence detection (no wires)
• SIL rated stop function available when connected with a TPRSM module
• Manages motors and other electrical loads up to 65 A (AC-3) / 37 kW/40 hp
• All adjustments and setting are digitized, no mechanical dials or dip switches
• No control wiring necessary, simplifying assembly

• Conformance Attributes
• Product Certifications : EAC, UL, CSA, CCC
• Standards : EN/IEC 60947-1, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
• Complementary Attributes
• Maximum Horse Power Rating : 2 hp at 240 V AC 60 Hz for 3 phase motors, 0.33 hp at 120 V AC 60 Hz for 1 phase motors, 1 hp at 240 V AC 60 Hz for 1 phase motors, 2 hp at 208 V AC 60 Hz for 3 phase motors, 5 hp at 480 V AC 60 Hz for 3 phase motors, 7.5 hp at 600 V AC 60 Hz for 3 phase motors
• IRMS Rated Making Capacity : 250 A at 440 V conforming to IEC 60947
• Maximum Operating Rate : 3600 cyc/mn AC-3
• Rated Breaking Capacity : 250 A at 440 V conforming to IEC 60947
• Important Information Attributes
• Current Consumption : 160 mA contactor sealed, 160 mA contactor closing
• Electrical Durability : 2 Mcycles 9 A AC-3 440 V, 1.2 Mcycles 15 A AC-1 440 V
• Electromagnetic Compatibility : electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4, surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5, conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6
• Fire Resistance : 960 °C UL 94, 850 °C IEC 60695-2-1, 650 °C IEC 60695-2-12
• Function Available : upstream voltage presence detection, electrical line and load protection, power and energy monitoring when connected with TPRVM voltage module, safe stop function available when connected with a TPRSM module
• Local Signalling : 1 LED (green/red) for DS (device status), 1 LED (green/red) for LS (load status)
• Motor Power KW : 2.2 kW at 230 V 50 Hz (AC-3), 4 kW at 380...415 V 50 Hz (AC-3), 4 kW at 440 V 50 Hz (AC-3), 5.5 kW at 500 V 50 Hz (AC-3), 5.5 kW at 690 V 50 Hz (AC-3)
• Operating Time : < 100 ms closing, < 100 ms closing, < 30 ms opening, < 30 ms opening, < 100 ms closing, < 100 ms closing, < 30 ms opening, < 30 ms opening
• Power Dissipation Per Pole : 0.2 W AC-3 - Ith 9 A, 0.56 W AC-1 - Ith 15 A
• Protection Type : thermal overload protection, motor overheat, overcurrent, undercurrent, jam, long start, stall, rapid cycle lockout, rapid restart lockout, phase sequence, phase loss, phase reversal, phase unbalance, ground current
• Safety Function : safe stop: category 0 conforming to IEC 60204-1 when associated with a TPRSM module, safe stop: category 1 conforming to IEC 60204-1 when associated with a TPRSM module
• Safety Level : SIL 2 conforming to IEC 61508 in single channel system architecture, SILCL 2 conforming to IEC 62061 in single channel system architecture, PL = d category 2 conforming to ISO 13849-1 in single channel system architecture
• Safety Reliability Level : B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
• Tightening Torque : 1.7-1.7 N.m flat Ø 6 mm, 1.7-1.7 N.m Philips No 2
• Utilisation Category : AC-1, AC-2, AC-3, AC-4, AC-3e
• Vibration Resistance : 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6, 1 gn 13-200 Hz) IEC 60068-2-6
• Icw Rated Short Time Withstand Current2 : 210 A 40 °C - 1 s, 105 A 40 °C - 10 s, 61 A 40 °C - 1 min, 30 A 40 °C - 10 min
• Ie Rated Operational Current2 : 9 A (at <50 °C) at <= 440 V AC-3, 15 A (at <50 °C) at <= 440 V AC-1
• Ue Rated Operational Voltage2 : <= 690 V AC 47...63 Hz, <= 690 V AC 47...63 Hz, <= 690 V AC 47...63 Hz
• Ui Rated Insulation Voltage2 : 690 V IEC 60947-4-1, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
• Connections Terminals : screw-clamp terminals 1 1-4 mm² AWG 16...AWG 12)rigid, screw-clamp terminals 2 1-4 mm² AWG 16...AWG 12)rigid, screw-clamp terminals 1 1.5-4 mm² AWG 16...AWG 12)flexible without cable end, screw-clamp terminals 1 1-4 mm² AWG 16...AWG 12)flexible with cable end, screw-clamp terminals 2 1-2.5 mm² AWG 16...AWG 14)flexible with cable end
• Metering Type : time device ON, time device switch ON, number of faults, number of switching cycles, number of device power cycles, average current Iavg, average voltage Vavg, max current Imax, max voltage Vmax, active and reactive power with voltage module, active and reactive energy with voltage module, true power factor with voltage module
• Connections Terminals3 : screw-clamp terminals 1 1-4 mm² AWG 16...AWG 12)rigid, screw-clamp terminals 2 1-4 mm² AWG 16...AWG 12)rigid, screw-clamp terminals 1 1.5-4 mm² AWG 16...AWG 12)flexible without cable end, screw-clamp terminals 2 1.5-4 mm² AWG 16...AWG 12)flexible without cable end, screw-clamp terminals 1 1-4 mm² AWG 16...AWG 12)flexible with cable end, screw-clamp terminals 2 1-2.5 mm² AWG 16...AWG 14)flexible with cable end
• Icw Rated Short Time Withstand Current5 : 210 A 40 °C - 1 s, 105 A 40 °C - 10 s, 61 A 40 °C - 1 min, 30 A 40 °C - 10 min
• Ie Rated Operational Current5 : 9 A (at <50 °C) at <= 440 V AC-3, 15 A (at <50 °C) at <= 440 V AC-1
• Ue Rated Operational Voltage5 : <= 690 V AC 47...63 Hz, <= 690 V AC 47...63 Hz, <= 690 V AC 47...63 Hz
• Ui Rated Insulation Voltage5 : 690 V IEC 60947-4-1, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Device Type : Relay, Control & Measurement - measuring, monitoring device
• Serviceability : No
• Traceability : No
• WEEE Applicability : Finished product
• WEEE Scope : In
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1904009EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Average Impedance : 2.5 mOhm - Ith 15 A 50 Hz
• Device Short Name : TPRSS
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free plastic parts product
• Mechanical Durability : 30 Mcycles
• Motor Starter Type : direct on line
• Mounting Mode : horizontal and vertical 35 mm symmetrical DIN rail)
• Overvoltage Category : III
• Package Weight Lbs : 712.000 g
• Poles Description : 3P 3 NO
• Power Dissipation In W : 3.5 W at Ie AC-3
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : SIL motor starter
• Protective Treatment : TC
• Range : TeSys
• Reset : remotely or automatically
• Returnability : Yes
• Shock Resistance : 15 gn 11 ms) IEC 60068-2-27
• Sustainable Packaging : Yes
• Thermal Overload Class : class 5…30
• Thermal Protection Adjustment Range : 0.18-9 A
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Ith Conventional Free Air Thermal Current2 : 15 A (at 50 °C)
• Uc Control Circuit Voltage2 : 24 V DC supplied by the bus coupler
• Uimp Rated Impulse Withstand Voltage2 : 6 kV IEC 60947-1
• Medium Desc : SIL motor starter, TeSys island, 15A at AC-1, 9A at AC-3, 4kW, 5hp, DOL type
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP1904009EN
• Global Commercial Status : Commercialised
• Product Name : TeSys island
• Ith Conventional Free Air Thermal Current5 : 15 A (at 50 °C)
• Uc Control Circuit Voltage5 : 24 V DC supplied by the bus coupler
• Uimp Rated Impulse Withstand Voltage5 : 6 kV IEC 60947-1
• Environment Attributes Main
• Take Back : Nej, No
• Ambient Air Temperature For Operation : -10-50 °C without derating, -10-50 °C without derating, -10-50 °C without derating, -10-50 °C without derating, 50-60 °C with current derating
• Ambient Air Temperature For Storage : -25-70 °C, -25-70 °C
• EU ROHS Directive : Compliant By Exemption , Compliant with Exemptions
• Product Compatibility : TPRBC bus coupler, TPRVM voltage interface module, TPRSM SIL interface module
• ROHS Exemption Information : Yes
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Circularity Profile : ENVEOLI1904009EN
• Environmental Disclosure : ENVPEP1904009EN
• Halogen Content Performance : Halogen free plastic parts product
• IP Degree Of Protection : IP20
• Operating Altitude : 0...6561.68 ft (0...2000 m) without derating
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 5-95 %
• Pep Code : ENVPEP1904009EN
• General Attributes
• Product Or Component Type : SIL motor starter
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications

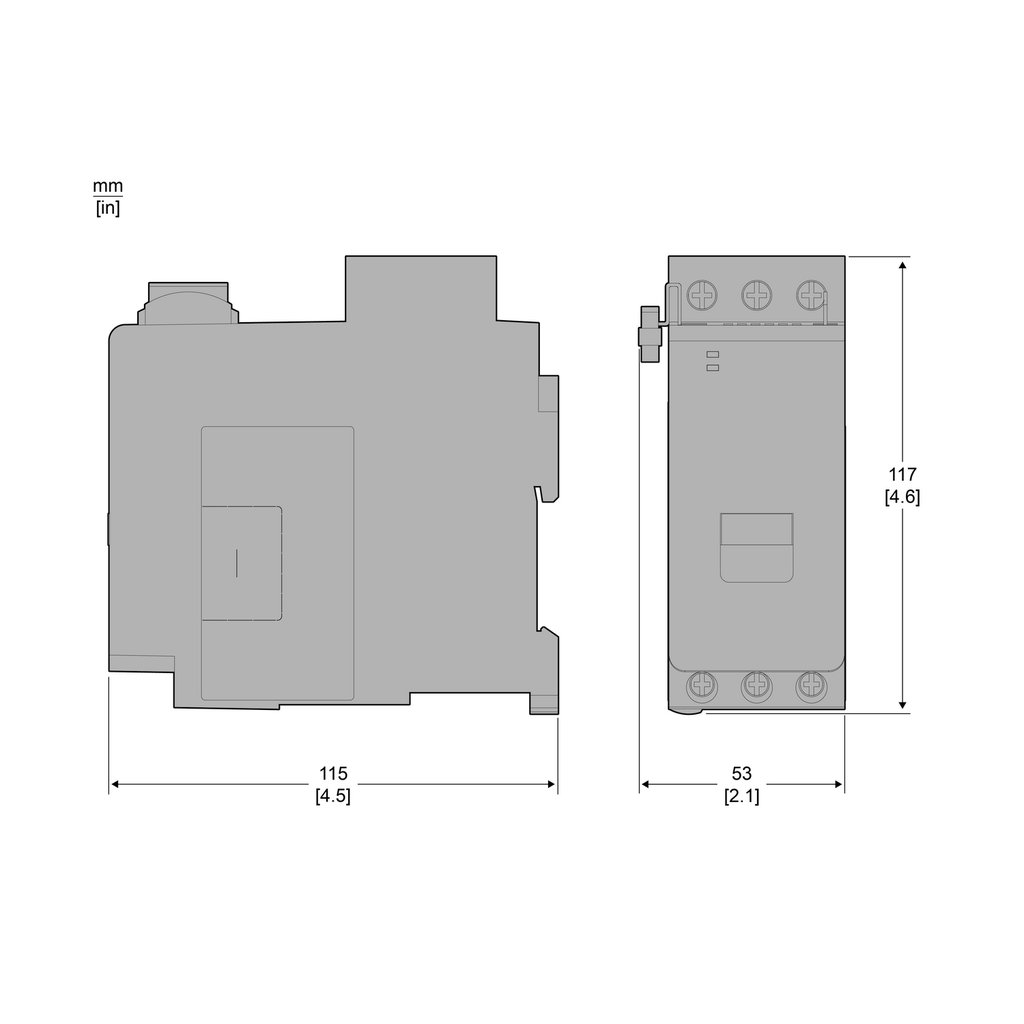

• Depth : 115 mm
• Overview Attributes
• Device Presentation : direct starter connected to an automation controller through a bus coupler, operational only when connected to a bus coupler
