analogue input cartridge, Modicon M241, 2 temperature inputs

TMC M241-2 TEMPERATURE IN

SQDTMC4TI2 TMC4TI2 3606480649202
277.24 / EA
http://schema.org/OutOfStock

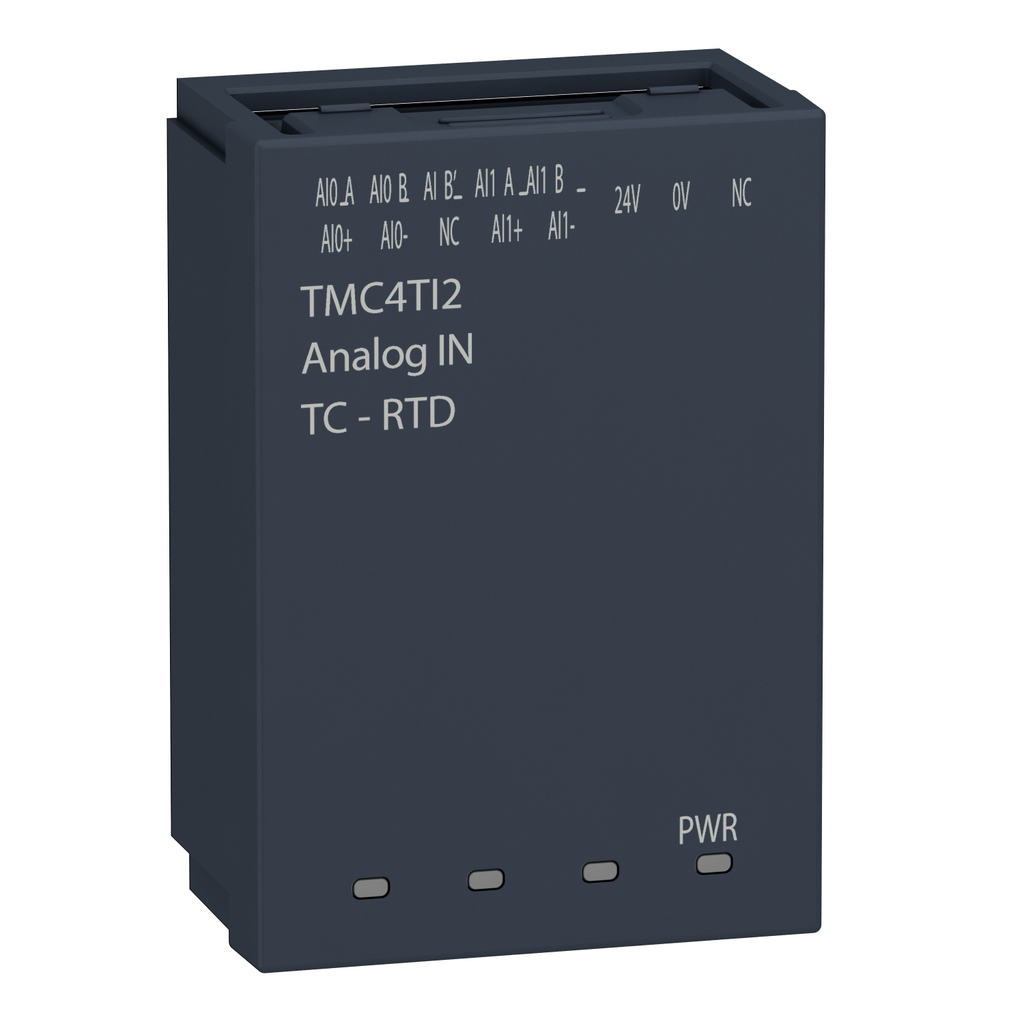

Mayer-DDS-analogue input cartridge, Modicon M241, 2 temperature inputs-1
  • Country of Origin: Mexico
  • Depth: 21 mm
This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This analogue input cartridge is for logic controllers. It provides 2 temperature inputs with 14bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between input and internal logic at 500V DC and no insulation between inputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. This analogue input cartridge is compatible with Modicon M241C PLC. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This analogue input cartridge is for logic controllers. It provides 2 temperature inputs with 14bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between input and internal logic at 500V DC and no insulation between inputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. This analogue input cartridge is compatible with Modicon M241C PLC. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000802_3D-CAD
  • Complementary Attributes
    • Maximum Cable Distance Between Devices : twisted shielded pairs cable <30 m input
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Insulation : between input and internal logic 500 V DC, non-insulated between inputs
    • Non Linearity : +/- 0.05 %FS, +/- 0.05 %FS
    • Repeat Accuracy : +/- 0.1 %FS, +/- 0.1 %FS
    • Carbon Footprint Of The Distribution Phase A4 : 0.0095475988, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0295623148
    • Carbon Footprint Of The Installation Phase A5 : 0.0002182772, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 4 kg CO2 eq., 3.5895709877
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 31 kg CO2 eq., 30.902
    • Medium Desc : analogue input cartridge, Modicon M241, 2 temperature inputs
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : N
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : No
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1403017EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Cross Talk : 80 dB
    • Electrical Connection : 1 x 1.5 mm² 1 spring terminal block with pitch 3.5 mm adjustment for outputs and supply
    • Immunity To Microbreaks : 10 ms
    • Local Signalling : 1 LED (green) for PWR
    • Lsb Value : 0.1 °C
    • Permissible Continuous Overload : 6 V
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : analogue input cartridge
    • Range Of Product : Modicon M241
    • Returnability : Yes
    • Sampling Duration : 100 ms
    • Software Version : EIME v5.6.0.1
    • Supply Voltage Limits : 20.4-28.8 V
    • Sustainable Packaging : Yes
    • Temperature Drift : +/- 0.008 %FS/°C
    • Total Lifecycle Carbon Footprint : 35 kg CO2 eq.
    • Type Of Cable : twisted shielded pairs cable
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Pep Code : ENVPEP1403017EN
    • Database Version : 2016-11
    • Pep Verification Date : 2018-08-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional Unit Description : to extend I/O communication capacities ( 2 analog inputs/outputs, 2 temperature inputs) of the Modicon M221 and M241 Logic Controllers 100% of the time for 10 years
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Indonesia
    • Energy Model Installation A5 2 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model Use B6 2 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 2 : Electricity mix; AC; < 1kV; EU-27
    • Height Nominal : 50 mm
    • Width Nominal : 34 mm
  • Environment Attributes Main
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 34.5308991784
    • Circularity Profile : ENVEOLI1403017EN
    • Environmental Disclosure : ENVPEP1403017EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Product Compatibility : Modicon M241C
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1403017EN
    • Pep Verification Date : 2018-08-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : analogue input cartridge
    • Range Of Product : Modicon M241
  • ETIM
    • ETIM 8 : EC001420
    • ETIM 9 : EC001420
  • Input Attributes
    • Analogue Input Type : thermocouple - 200...1000 °C thermocouple J, Pt 100 temperature probe - 200...850 °C, Pt 1000 temperature probe - 200...600 °C, thermocouple - 200...1300 °C thermocouple K, thermocouple 0...1760 °C thermocouple R, thermocouple 0...1760 °C thermocouple S, thermocouple 0...1820 °C thermocouple B, thermocouple - 200...400 °C thermocouple T, thermocouple - 200...1300 °C thermocouple N, thermocouple - 200...800 °C thermocouple E, Ni 100/Ni 1000 temperature probe - 60...180 °C
    • Input Impedance : >= 1 MOhm, >= 1 MOhm
    • Analogue Input Number : 2
    • Analogue Input Resolution : 14 bits
  • Specifications
    • Country of Origin : Mexico
    • Depth : 21 mm
