analogue output cartridge, Modicon M241, 2 analog outputs

TMC M241-2 ANALOG OUT

SQDTMC4AQ2 TMC4AQ2 3606480649172
252.74 / EA
http://schema.org/OutOfStock

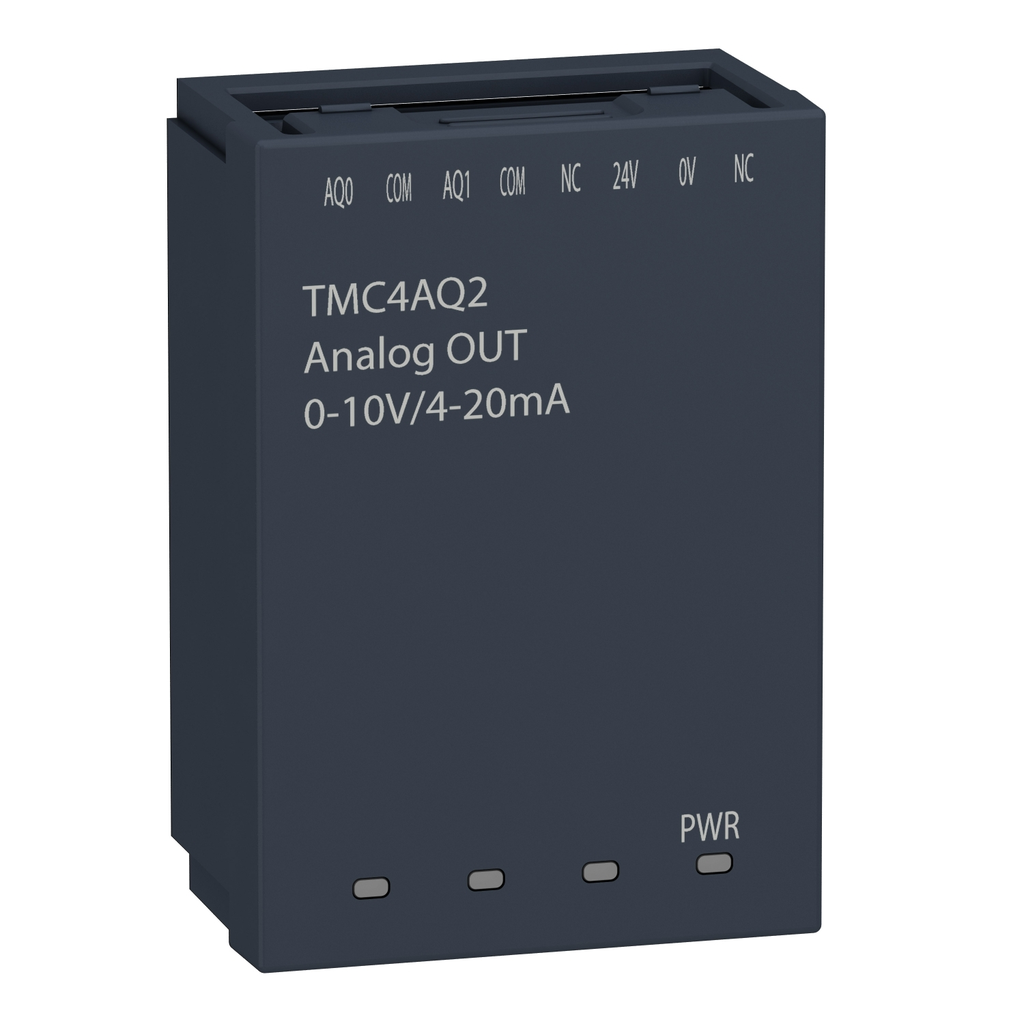

Mayer-DDS-analogue output cartridge, Modicon M241, 2 analog outputs-1
  • Country of Origin: USA
  • Depth: 21 mm
  • Height: 50 mm
  • Load Type: Resistive
  • Net Weight: 0.055 kg
  • Weight: 0.055 kg
  • Width: 34 mm
cartridge M241 - 2 analog outputs This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This analogue output cartridge is for Modicon M241 logic controllers. It provides 2 analogue current outputs with 16bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between output and internal logic at 500V DC and no insulation between outputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. This analogue output cartridge is compatible with Modicon M241C PLC. There is 1 slot for I/O cartridge on TM241C*24 . There are 2 slots for I/O cartridge on TM241C*40.
QTY
  • Product Description
  • Features
  • Specifications
cartridge M241 - 2 analog outputs This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This analogue output cartridge is for Modicon M241 logic controllers. It provides 2 analogue current outputs with 16bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between output and internal logic at 500V DC and no insulation between outputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. This analogue output cartridge is compatible with Modicon M241C PLC. There is 1 slot for I/O cartridge on TM241C*24 . There are 2 slots for I/O cartridge on TM241C*40.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Maximum Cable Distance Between Devices : twisted shielded pairs cable <30 m input
    • Electrical Connection : 1 x 1.5 mm² 1 spring terminal block pitch 3.5 mm for outputs and supply
    • Height : 50 mm
    • Load Type : resistive
    • Analogue Output Type : current 4...20 mA || voltage 0...10 V
    • Non-Linearity : +/- 0.05 %FS
    • Lsb Value : 1 mV 0...10 V voltage || 2 µA 4...20 mA current
    • Net Weight : 0.055 kg
    • Type Of Cable : twisted shielded pairs cable
    • Absolute Accuracy Error : +/- 0.2 % of full scale at 25 °C
    • Analogue Output Resolution : 16 bits
    • Temperature Drift : +/- 0.006 %FS/°C
    • Supply Voltage Limits : 20.4-28.8 V
    • Stabilisation Time : 10 ms
    • Analogue Output Number : 2
    • Load Impedance Ohmic : <= 500 Ohm current || >= 2 kOhm voltage
    • Output Ripple : +/- 20 mV
    • Local Signalling : for PWR 1 LED (green)
    • Cross Talk : 80 dB
    • Width : 34 mm
    • Depth : 21 mm
    • Conversion Time : 10 ms + 1 controller cycle time
    • Insulation : between output and internal logic 500 V DC || non-insulated between outputs
    • Repeat Accuracy : +/- 0.5 %FS
  • Specifications
    • Country of Origin : United States
    • Width : 34 mm
    • Height : 50 mm
    • Weight : 0.055 kg
    • Range Of Product : Modicon M241
    • Product Or Component Type : analogue output cartridge
    • Product Compatibility : Modicon M241C
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP1403017EN
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : d8dbab46-37ab-4503-807f-893da69cb5e6
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI1403017EN
    • Take-Back : No
    • Pvc Free : Yes
  • Environment
    • Immunity To Microbreaks : 10 ms
