SQUARE D

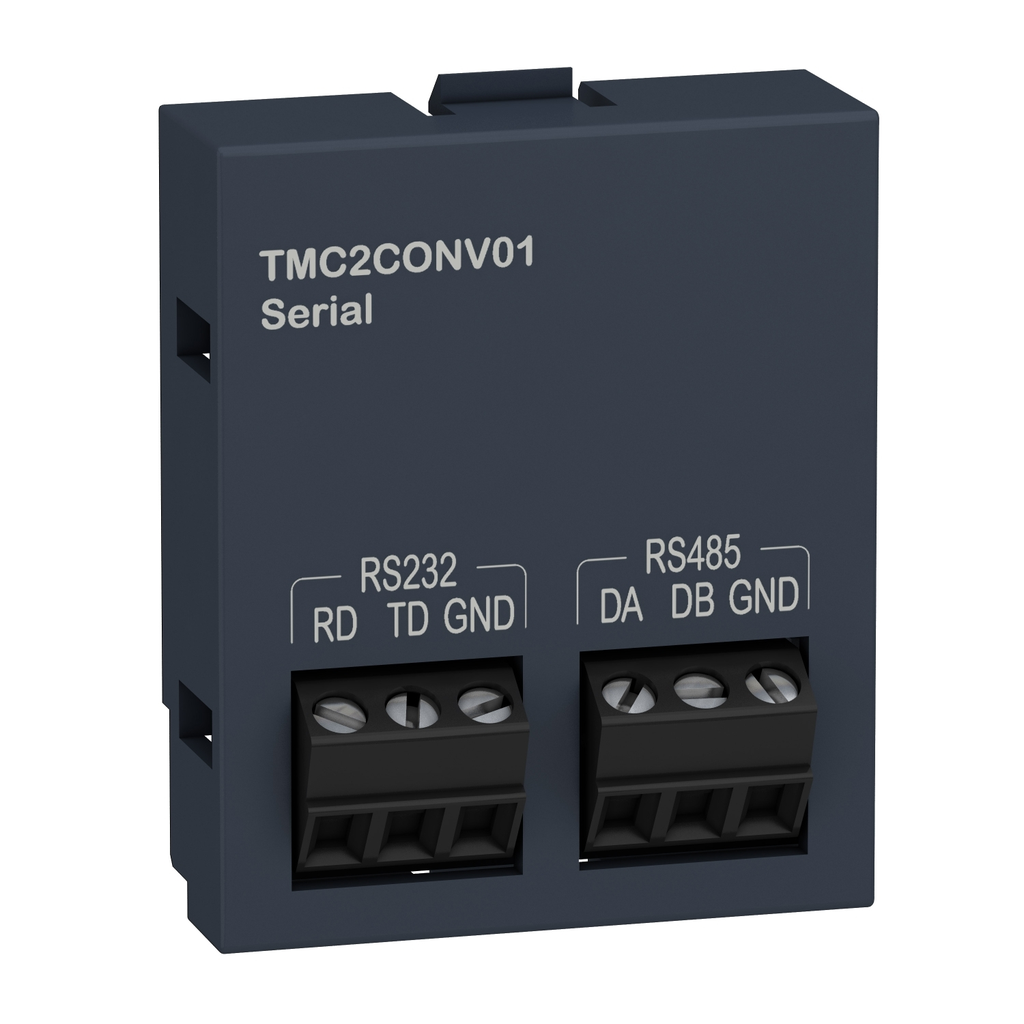

Serial line cartridge, Modicon M221, conveying 1 I/O extension

TMC M221-CONVEY 1 SERIAL

SQDTMC2CONV01 TMC2CONV01 3606480649110
227.50 / EA
http://schema.org/OutOfStock
Mayer-DDS-Serial line cartridge, Modicon M221, conveying 1 I/O extension-1
  • Country of Origin: Taiwan
  • Depth: 15 mm
  • Height: 41 mm
  • Net Weight: 0.015 kg
  • Weight: 0.015 kg
  • Width: 35 mm
cartridge M221 - conveying 1 serial line - I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This application cartridge is an option for Modicon M221C logic controller. It provides a serial link port for conveying application. The non isolated serial link type is Modbus master - slave. This product requires minimal installation and offers tremendous versatility. The serial line can be configured with Modbus RTU, Modbus ASCII or ASCII protocols. There is no insulation between lines and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.
QTY
  • Product Description
  • Features
  • Specifications
cartridge M221 - conveying 1 serial line - I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This application cartridge is an option for Modicon M221C logic controller. It provides a serial link port for conveying application. The non isolated serial link type is Modbus master - slave. This product requires minimal installation and offers tremendous versatility. The serial line can be configured with Modbus RTU, Modbus ASCII or ASCII protocols. There is no insulation between lines and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Specifications
    • Country of Origin : Taiwan
    • Width : 35 mm
    • Height : 41 mm
    • Weight : 0.015 kg
    • Range Of Product : Modicon M221
    • Product Or Component Type : serial line cartridge
    • Product Specific Application : conveying applications
    • Product Compatibility : Modicon M221C
  • Complementary
    • Height : 41 mm
    • Transmission Rate : 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232
    • Communication Port Protocol : non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
    • Net Weight : 0.015 kg
    • Integrated Connection Type : non isolated serial link - screw terminal block RS232 || non isolated serial link - screw terminal block RS485
    • Width : 35 mm
    • Depth : 15 mm
    • Insulation : non-insulated between lines and internal logic
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1403017EN
    • Packaging Without Single Use Plastic : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI1403017EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 4.7211388889
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.970154321
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Pvc Free : Yes
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 6 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.0079898148
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 5.7019224506
