analogue input cartridge, Modicon M221, 2 analog inputs, IO extension

TMC M221-2 ANALOG IN

SQDTMC2AI2 TMC2AI2 3606480649080
136.34 / EA
http://schema.org/OutOfStock

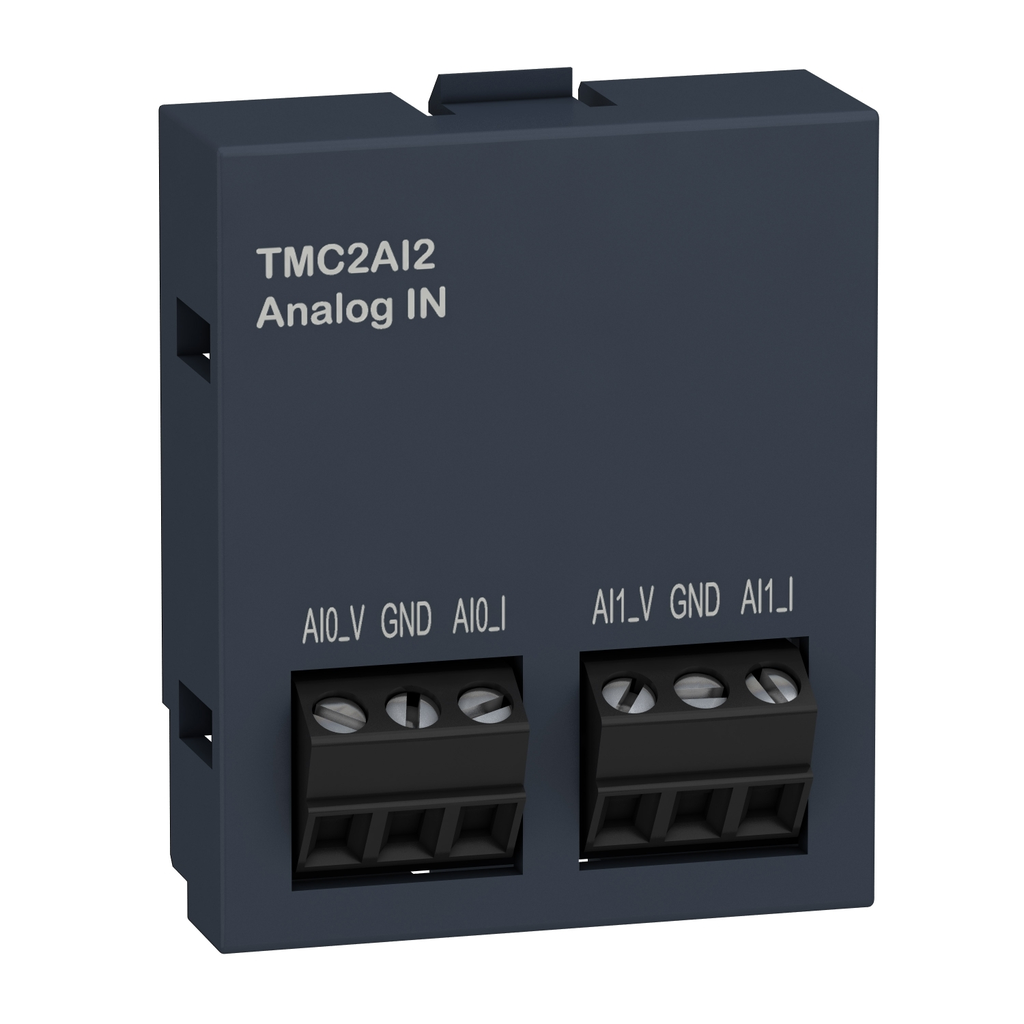

Mayer-DDS-analogue input cartridge, Modicon M221, 2 analog inputs, IO extension-1
  • Depth: 15 mm
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analogue input cartridge provides 2 inputs with 12bit input resolution. This product requires minimal installation and offers tremendous versatility. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue input and internal logic. It is furnished with screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analogue input cartridge provides 2 inputs with 12bit input resolution. This product requires minimal installation and offers tremendous versatility. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue input and internal logic. It is furnished with screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000799_3D-CAD
  • Complementary Attributes
    • Maximum Cable Distance Between Devices : twisted shielded pairs cable <30 m input
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Cross Talk : <= 1 LSB, <= 1 LSB
    • Lsb Value : 2.44 mV 0...10 V voltage, 4.88 µA 0...20 mA current, 3.91 µA 4...20 mA current
    • Non Linearity : +/- 0.01 %FS, +/- 0.01 %FS
    • Permissible Continuous Overload : 13 V voltage, 40 mA current
    • Repeat Accuracy : +/- 0.5 %FS, +/- 0.5 %FS
    • Medium Desc : analogue input cartridge, Modicon M221, 2 analog inputs, IO extension
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Country Of Origin 6 : US
    • Stocking Flag : N
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : No
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1403017EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Conversion Time : 20 ms
    • Electrical Connection : 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs
    • Immunity To Microbreaks : 10 ms
    • Insulation : non-insulated between analogue input and internal logic
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : analogue input cartridge
    • Range Of Product : Modicon M221
    • Returnability : Yes
    • Sampling Duration : 10 ms
    • Sustainable Packaging : No
    • Temperature Drift : +/- 0.02 %FS/°C
    • Type Of Cable : twisted shielded pairs cable
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Pep Code : ENVPEP1403017EN
    • Height Nominal : 41 mm
    • Width Nominal : 35 mm
  • Environment Attributes Main
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI1403017EN
    • Environmental Disclosure : ENVPEP1403017EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Product Compatibility : Modicon M221C
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1403017EN
  • General Attributes
    • Product Or Component Type : analogue input cartridge
    • Range Of Product : Modicon M221
  • ETIM
    • ETIM 8 : EC001420
    • ETIM 9 : EC001420
  • Input Attributes
    • Analogue Input Type : current 4...20 mA, current 0...20 mA, voltage 0...10 V
    • Input Impedance : <= 250 Ohm current, <= 250 Ohm current, >= 1 MOhm voltage, >= 1 MOhm voltage, <= 250 Ohm current, <= 250 Ohm current, >= 1 MOhm voltage, >= 1 MOhm voltage
    • Analogue Input Number : 2
    • Analogue Input Resolution : 12 bits
  • Specifications
    • Country of Origin : Japan, Mexico
    • Depth : 15 mm
