SQUARE D

CANopen X80 Master

CANOPEN X80 MASTER

SQDBMECXM0100 BMECXM0100 3606485407142
1518.71 / EA
http://schema.org/OutOfStock

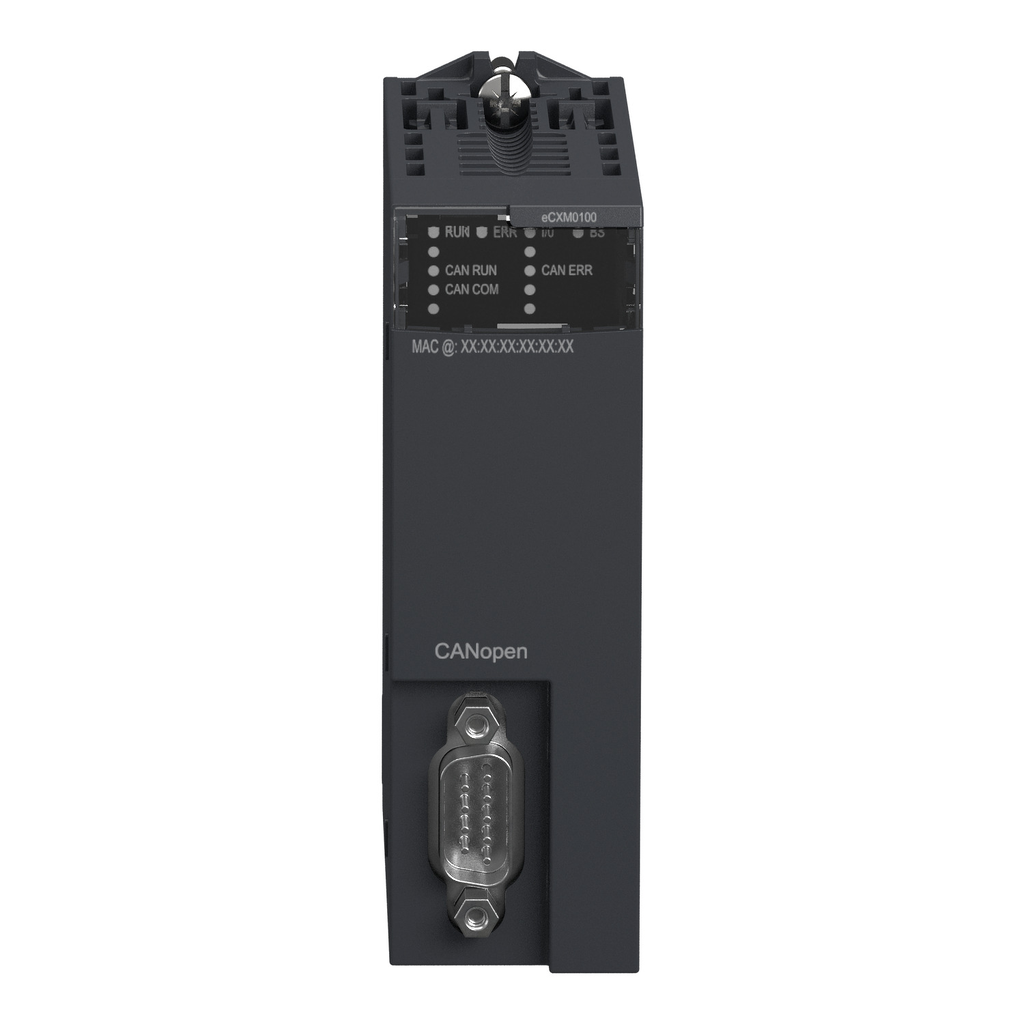

Mayer-DDS-CANopen X80 Master-1
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This CANopen communication module has 63 slaves, DB9 connector interface. It is a communication module which support CANopen twisted shielded pairs cable as transmission medium. It supports 10/100Mbps transmission rate, maximum cable distance between devices is 100m. This product is robust, high quality and based on the latest innovative technology. The communication service is CiA DSP 301 V4.02 with standard module format. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with M580 Programmable Logic Controllers (PLC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This CANopen communication module has 63 slaves, DB9 connector interface. It is a communication module which support CANopen twisted shielded pairs cable as transmission medium. It supports 10/100Mbps transmission rate, maximum cable distance between devices is 100m. This product is robust, high quality and based on the latest innovative technology. The communication service is CiA DSP 301 V4.02 with standard module format. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with M580 Programmable Logic Controllers (PLC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000197_3D-CAD
  • Communications & Management Attributes
    • Communication Service : CiA DSP 301 V4.02
  • Complementary Attributes
    • Us Rated Supply Voltage : 24 V DC internal
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Transmission Rate : 20 kbit/s, 2500 m CANopen with repeater, 50 kbit/s, 1000 m with repeater, 125 kbit/s, 500 m with repeater, 250 kbit/s, 250 m with repeater, 500 kbit/s, 100 m without repeater, 1 Mbit/s, 20 m without repeater
    • Carbon Footprint Of The Distribution Phase A4 : 0.0235378125, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.2896875
    • Carbon Footprint Of The Installation Phase A5 : 0.0716554688, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 12 kg CO2 eq., 12.2596875
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 107 kg CO2 eq., 107.0254545455
    • Medium Desc : CANopen X80 Master
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-02-24
    • Global Commercial Status : End of commerc. announced
    • Return Indicator : N
    • Country Of Origin 6 : US
    • Stocking Flag : Y
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2402021EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Current Consumption : 100 mA
    • Method Of Access : CSMA/CA CANopen
    • Mode Of Transmission : NRZ
    • Module Format : standard
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : CANopen communication module
    • Range Of Product : Modicon X80
    • Returnability : No
    • Software Version : v5.9.4
    • Structure Type : open industrial fieldbus
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 120 kg CO2 eq.
    • Transmission Support Medium : CANopen twisted shielded pairs cable
    • Pep Code : ENVPEP2402021EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; FR
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
  • Environment Attributes Main
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    • Take Back : Nej
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 119.6700228267
    • Ambient Air Temperature For Operation : 0-60 °C
    • Ambient Air Temperature For Storage : -45-85 °C
    • Circularity Profile : ENVEOLI2402021EN
    • Environmental Disclosure : ENVPEP2402021EN
    • Eu Rohs Directive : Compliant By Exemption
    • Operating Altitude : <= 6561.68 ft (2000 m)
    • Packaging Made With Recycled Cardboard : Yes
    • Product Compatibility : M580 PLC
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Relative Humidity : 10-95 % without condensation
    • Pep Code : ENVPEP2402021EN
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : CANopen communication module
    • Range Of Product : Modicon X80
  • ETIM
    • ETIM 8 : EC001423
    • ETIM 9 : EC001423
  • Specifications
    • Country of Origin : Ireland, Sweden
