Analogue input cartridge, Modicon M241, hoisting 1 analog

Analogue input cartridge, Modicon M241, hoisting 1 analog

SQDTMC4HOIS01 TMC4HOIS01 3606480649189
270.17 / EA
http://schema.org/OutOfStock

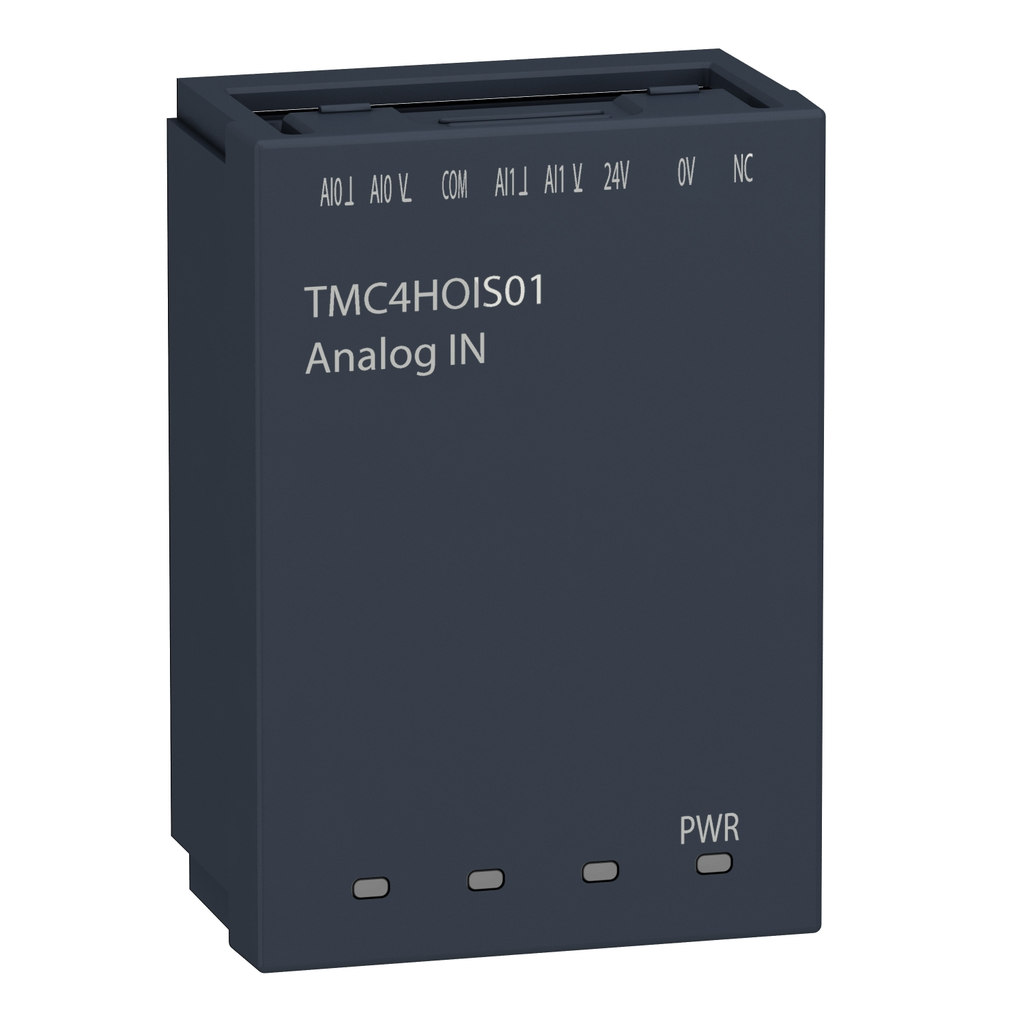

Mayer-DDS-Analogue input cartridge, Modicon M241, hoisting 1 analog-1
  • Country of Origin: Indonesia
  • Depth: 21 mm
  • Weight: 74 g
cartridge M241 - hoisting 1 analog input This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This application cartridge is for Modicon M241 logic controllers. It provides 2 analog inputs (voltage or current) for hoisting load cell with 16bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between input and internal logic at 500V DC and no insulation between inputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. This analogue output cartridge is compatible with Modicon M241C PLC. There is 1 slot for application cartridge on TM241C*24 . There are 2 slots for application cartridge on TM241C*40.
QTY
  • Product Description
  • Features
  • Specifications
cartridge M241 - hoisting 1 analog input This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This application cartridge is for Modicon M241 logic controllers. It provides 2 analog inputs (voltage or current) for hoisting load cell with 16bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between input and internal logic at 500V DC and no insulation between inputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. This analogue output cartridge is compatible with Modicon M241C PLC. There is 1 slot for application cartridge on TM241C*24 . There are 2 slots for application cartridge on TM241C*40.
  • Features
    • Intuitive machine programming with EcoStruxure Machine Expert.
    • Ready-to-use applications and function blocks.
    • Flexible and scalable machine control allowing an easy upgrade to higher performance platforms to improve efficiency.
    • Connected everywhere via Ethernet, wireless access, web servers to simplify machine integration and maintenance
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Maximum Cable Distance Between Devices : twisted shielded pairs cable <30 m input
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Insulation : between input and internal logic 500 V DC, non-insulated between inputs
    • Lsb Value : 1 mV voltage 0...10 V, 2 µA current 0...20 mA, 2 µA current 4...20 mA
    • Temperature Drift : +/- 0.006 %FS/°C, +/- 0.006 %FS/°C
    • Non Linearity : +/- 0.05 %FS, +/- 0.05 %FS
    • Carbon Footprint Of The Distribution Phase A4 : 0.0095475988, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0295623148
    • Carbon Footprint Of The Installation Phase A5 : 0.0002182772, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 4 kg CO2 eq., 3.5895709877
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 31 kg CO2 eq., 30.902
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Return Indicator : N
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : No
    • Use Carbon Footprint : 30.902
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1403017EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 1845
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Cross Talk : 80 dB
    • Electrical Connection : 1 x 1.5 mm² 1 spring terminal block with pitch 3.5 mm adjustment for inputs and supply
    • Immunity To Microbreaks : 10 ms
    • Local Signalling : 1 LED (green) for PWR
    • Permissible Continuous Overload : 40 mA current30 V voltage
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : analogue input cartridge
    • Product Specific Application : hoisting applications
    • Range Of Product : Modicon M241
    • Repeat Accuracy : +/- 0.2 %FS+/- 0.2 %FS
    • Returnability : No
    • Sampling Duration : 10 ms
    • Software Version : EIME v5.6.0.1
    • Supply Voltage Limits : 20.4-28.8 V
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 35 kg CO2 eq.
    • Type Of Cable : twisted shielded pairs cable
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Database Version : 2016-11
    • Data Source : extrapolated product
    • Height Nominal : 50 mm
    • Width Nominal : 34 mm
    • Nbr. Of Units In Pkg. : 1
    • Customs Code : 8537109170
    • Warranty In Months : 18
    • Functional Unit Description : to extend I/O communication capacities ( 2 analog inputs/outputs, 2 temperature inputs) of the Modicon M221 and M241 Logic Controllers 100% of the time for 10 years
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 63.072
  • Environment Attributes Main
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 34.5308991784
    • Circularity Profile : ENVEOLI1403017EN
    • Environmental Disclosure : ENVPEP1403017EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Product Compatibility : Modicon M241C
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1403017EN
    • Pep Verification Date : 2018-08-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : analogue input cartridge
    • Range Of Product : Modicon M241
  • ETIM
    • ETIM 8 : EC001420
    • ETIM 9 : EC001420
    • ETIM 10 : EC001420
  • Input Attributes
    • Analogue Input Type : current 4...20 mA, current 0...20 mAvoltage 0...10 V
    • Input Impedance : <= 250 Ohm current, <= 250 Ohm current, >= 1 MOhm voltage, >= 1 MOhm voltage<= 250 Ohm current, <= 250 Ohm current, >= 1 MOhm voltage, >= 1 MOhm voltage
    • Analogue Input Number : 2
    • Analogue Input Resolution : 16 bits
  • Specifications
    • Country of Origin : Indonesia
    • Weight : 74 g
    • Depth : 21 mm
