Analogue input cartridge, Modicon M221, packaging 2 analog inputs, I/O extension

ANALOGUE INPUT CARTRIDGE, MODI

SQDTMC2PACK01 TMC2PACK01 3606480649134
227.50 / EA
http://schema.org/OutOfStock
Mayer-DDS-Analogue input cartridge, Modicon M221, packaging 2 analog inputs, I/O extension-1
  • Depth: 15 mm

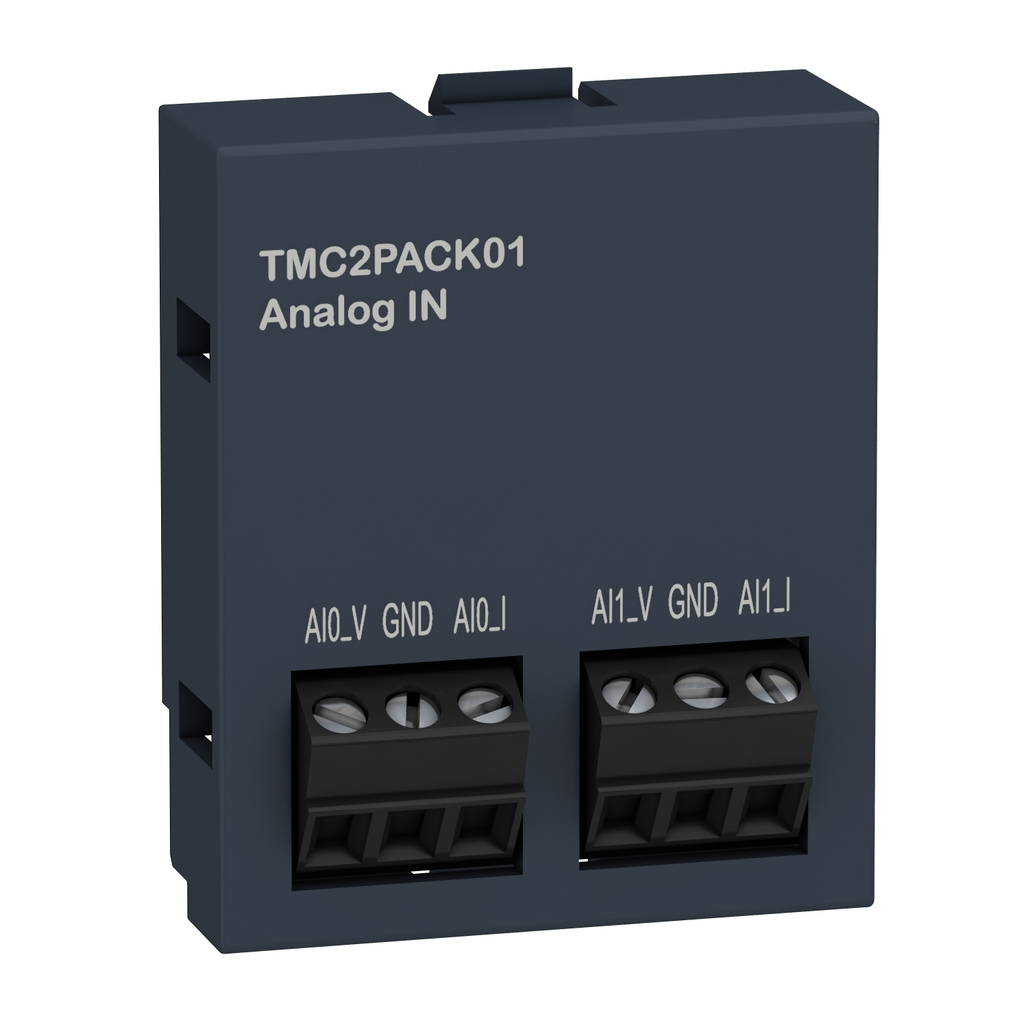

cartridge M221 - packaging 2 analog inputs - I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This application cartridge is an option for Modicon M221C logic controller. It provides 2 dedicated analog inputs for controlling the temperature on a packaging machine. The analog input types are current 0 to 20 mA, 4 to 20 mA and voltage 0 to 10 v. This product requires minimal installation and offers tremendous versatility. The input cable type is twisted shielded pairs cable. The electrical connection is 3x 1.5mm², on 2 screw terminal blocks with pitch 3.81mm adjustment for inputs. The max. cable distance between devices is lower than 30m for input. There is no insulation between analog input and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.
QTY
  • Product Description
  • Features
  • Specifications
cartridge M221 - packaging 2 analog inputs - I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This application cartridge is an option for Modicon M221C logic controller. It provides 2 dedicated analog inputs for controlling the temperature on a packaging machine. The analog input types are current 0 to 20 mA, 4 to 20 mA and voltage 0 to 10 v. This product requires minimal installation and offers tremendous versatility. The input cable type is twisted shielded pairs cable. The electrical connection is 3x 1.5mm², on 2 screw terminal blocks with pitch 3.81mm adjustment for inputs. The max. cable distance between devices is lower than 30m for input. There is no insulation between analog input and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000801_3D-CAD
  • Complementary Attributes
    • Maximum Cable Distance Between Devices : twisted shielded pairs cable <30 m input
  • Important Information Attributes
    • Cross Talk : <= 1 LSB, <= 1 LSB
    • Lsb Value : 2.44 mV 0...10 V voltage, 4.88 µA 0...20 mA current, 3.91 µA 4...20 mA current
    • Non Linearity : +/- 0.01 %FS, +/- 0.01 %FS
    • Permissible Continuous Overload : 13 V voltage, 40 mA current
    • Repeat Accuracy : +/- 0.5 %FS, +/- 0.5 %FS
    • Carbon Footprint Of The Distribution Phase A4 : 0.0051608642, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0159796296
    • Carbon Footprint Of The Installation Phase A5 : 0.0001179877, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 1.940308642
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 4 kg CO2 eq., 3.86275
    • Medium Desc : Analogue input cartridge, Modicon M221, packaging 2 analog inputs, I/O extension
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : No
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1403017EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Conversion Time : 20 ms
    • Electrical Connection : 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs
    • Immunity To Microbreaks : 10 ms
    • Insulation : non-insulated between analogue input and internal logic
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : analogue input cartridge
    • Product Specific Application : packaging
    • Range Of Product : Modicon M221
    • Returnability : No
    • Sampling Duration : 10 ms
    • Software Version : EIME v5.6.0.1
    • Sustainable Packaging : No
    • Temperature Drift : +/- 0.02 %FS/°C
    • Total Lifecycle Carbon Footprint : 6 kg CO2 eq.
    • Type Of Cable : twisted shielded pairs cable
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Pep Code : ENVPEP1403017EN
    • Database Version : 2016-11
    • Pep Verification Date : 2018-08-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional Unit Description : to extend I/O communication capacities ( 2 analog inputs/outputs, 2 temperature inputs) of the Modicon M221 and M241 Logic Controllers 100% of the time for 10 years
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Indonesia
    • Energy Model Installation A5 2 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model Use B6 2 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 2 : Electricity mix; AC; < 1kV; EU-27
    • Height Nominal : 41 mm
    • Width Nominal : 35 mm
  • Environment Attributes Main
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 5.8243171235
    • Circularity Profile : ENVEOLI1403017EN
    • Environmental Disclosure : ENVPEP1403017EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Product Compatibility : Modicon M221C
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1403017EN
    • Pep Verification Date : 2018-08-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : analogue input cartridge
    • Range Of Product : Modicon M221
  • ETIM
    • ETIM 8 : EC001420
    • ETIM 9 : EC001420
  • Input Attributes
    • Analogue Input Type : current 4...20 mA, current 0...20 mA, voltage 0...10 V
    • Input Impedance : <= 250 Ohm current, <= 250 Ohm current, >= 1 MOhm voltage, >= 1 MOhm voltage, <= 250 Ohm current, <= 250 Ohm current, >= 1 MOhm voltage, >= 1 MOhm voltage
    • Analogue Input Number : 2
    • Analogue Input Resolution : 12 bits
  • Specifications
    • Depth : 15 mm
