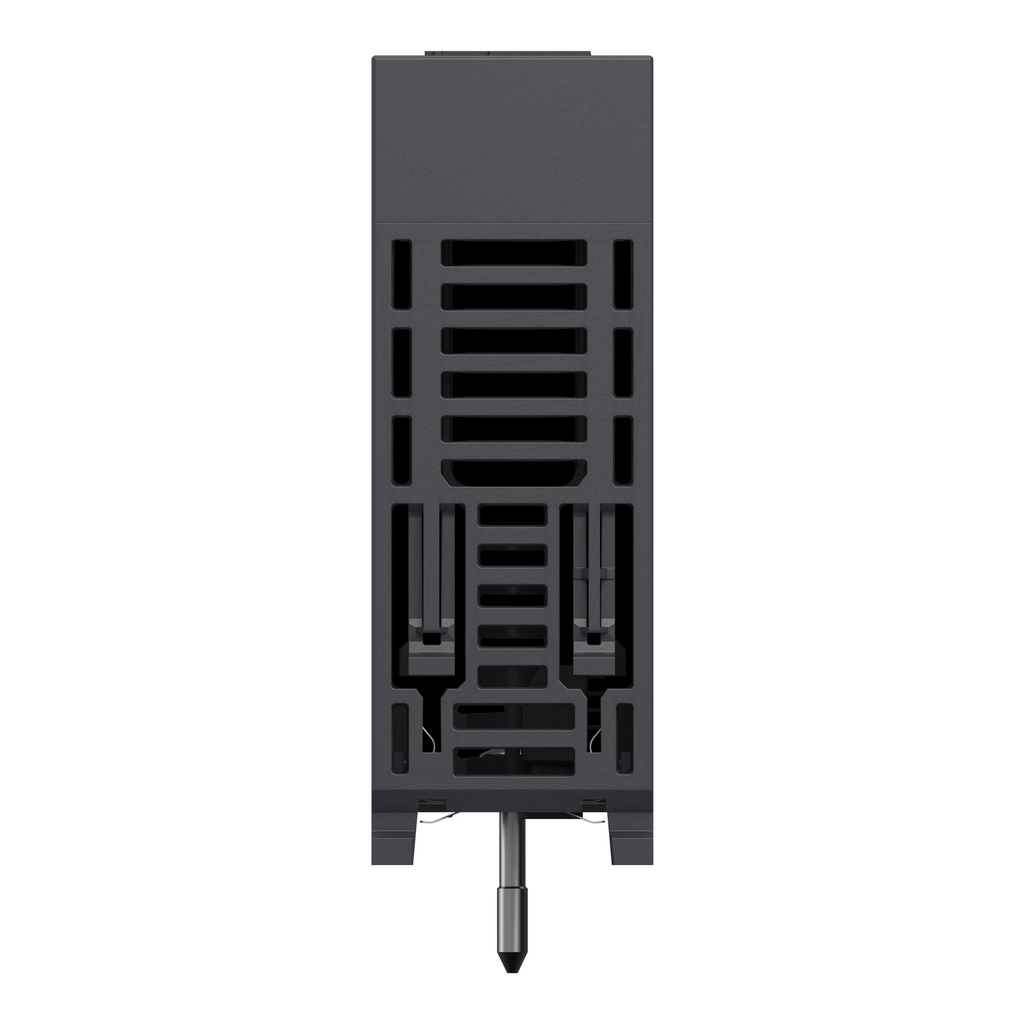

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an input module with a current of 4mA to 20mA input type with I/O mapping function. This product is robust, high quality and based on the latest innovative technology. It is furnished with Telefast and 20-way terminal block for electrical connection. It weighs 0.233kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with BMEP58xxx processor, BMXFTB20xxx terminal block, ABE7CPA31, BMEXBPxxx backplane, ABE7CPA02, ABE7CPA03, BMECRA31210 head module. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary
• Measurement Error : 0.15 % of full scale 25 °C || <= 0.3 % of full scale 0...60 °C
• Temperature Drift : 50 ppm/°C
• Analogue Input Resolution : 15 bits + sign
• Net Weight : 0.233 kg
• Input Impedance : 250 Ohm internally protective resistor (3.6 to 50 Ohm)
• Electrical Connection : 20 ways terminal block || Telefast
• Topology : point-to-point
• Input Output Isolation : isolated
• Analogue Input Number : 8
• Isolation Voltage : 1000 V DC 60 s between channels || 1400 V DC 60 s between channels and ground || 1400 V DC 60 s between channels and bus
• Function Available : I/O mapping
• Application Specific I/O : HART
• Product Compatibility : BMEP58... processor || BMXFTB20... terminal block || ABE7CPA31 || BMEXBP... backplane || ABE7CPA02 || ABE7CPA03 || head module BMECRA31210
• Analogue Input Type : current 4...20 mA
• Checks : broken wire detection
• Environment
• Ambient Air Temperature For Operation : 0-60 °C
• Standards : EN/IEC 61010-2-201 || EN/IEC 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
• Product Certifications : CE || RCM || CSA || EAC || Merchant Navy || UL
• Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
• Ip Degree Of Protection : IP20
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP2311046EN
• Packaging Without Single Use Plastic : Yes
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : ENVEOLI2311046EN
• Take-Back : No
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 137.7023923945
• Specifications
• Country of Origin : United States
• Weight : 0.233 kg
• Range Of Product : Modicon X80
• Product Or Component Type : analog input module
