SQUARE D

2 safety relay outputs expansion module with spring term

2 safety relay outputs expansi

SQDXPSMCMER0002G XPSMCMER0002G 3606480748790
732.60 / EA
http://schema.org/OutOfStock

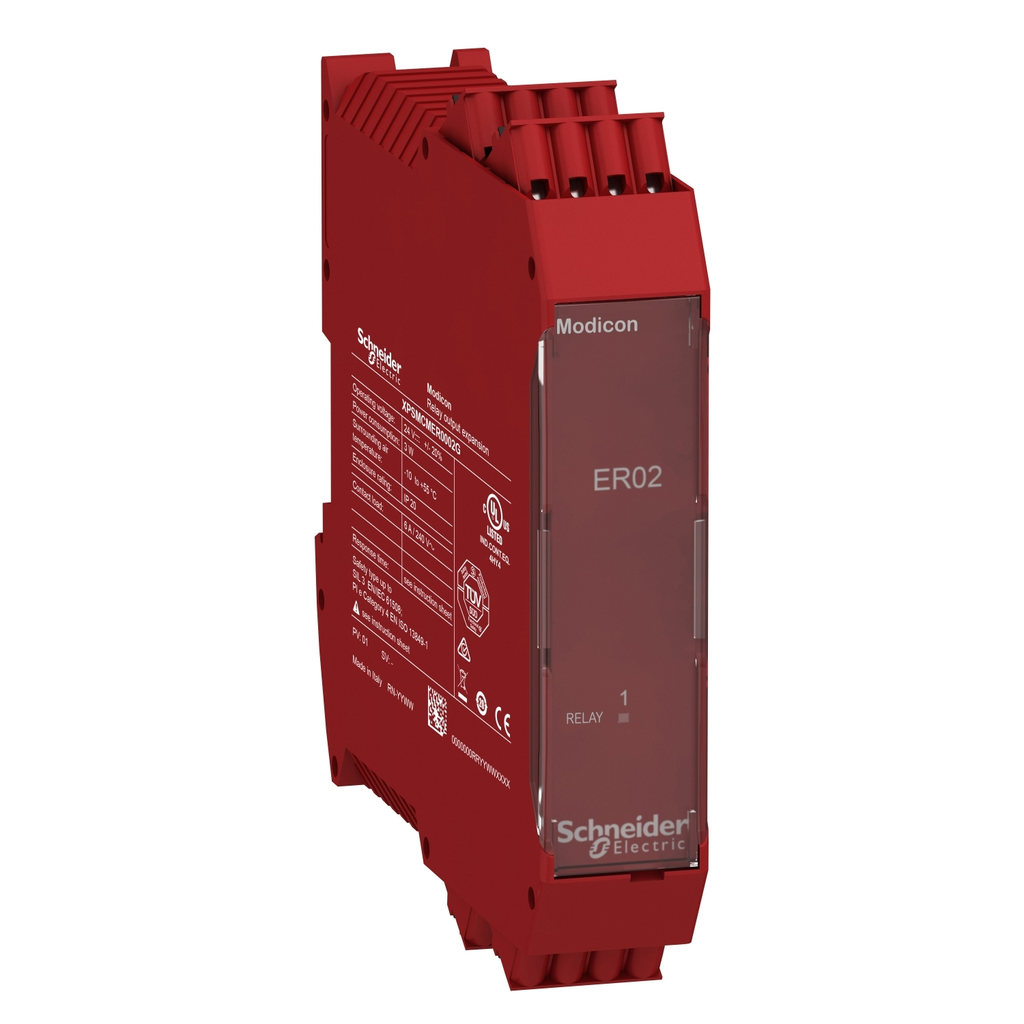

Mayer-DDS-2 safety relay outputs expansion module with spring term-1
  • Country of Origin: Italy
This Modicon MCM safe relay output expansion module has 2 guided contact safety relay outputs (2NO + 1NC), 1 start/restart interlock input, and is fitted with captive spring clamp terminals. It is designed to monitor safety actuators for relay outputs, with a rated supply voltage of 24V DC and a maximum power dissipation of 3W. It is furnished with spring clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. The safe relay modules type XPSMCMER0002 use guided contact safety relays, each of which provides two N.O. contacts and one N.C. contact in addition to the N.C. feedback contact. This safe relay output expansion module figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, inputs status, restart signal, output channels). The safe relay output modules type XPSMCMER0002 and XPSMCMER0004 do not require the backplane expansion connectors as they are directly wired to the selected OSSD. It weighs 0.25kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. The safe controller CPU Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessory for safe relay output module is a memory card. The module instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
QTY
  • Product Description
  • Features
  • Specifications
This Modicon MCM safe relay output expansion module has 2 guided contact safety relay outputs (2NO + 1NC), 1 start/restart interlock input, and is fitted with captive spring clamp terminals. It is designed to monitor safety actuators for relay outputs, with a rated supply voltage of 24V DC and a maximum power dissipation of 3W. It is furnished with spring clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. The safe relay modules type XPSMCMER0002 use guided contact safety relays, each of which provides two N.O. contacts and one N.C. contact in addition to the N.C. feedback contact. This safe relay output expansion module figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, inputs status, restart signal, output channels). The safe relay output modules type XPSMCMER0002 and XPSMCMER0004 do not require the backplane expansion connectors as they are directly wired to the selected OSSD. It weighs 0.25kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. The safe controller CPU Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessory for safe relay output module is a memory card. The module instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
  • US Rated Supply Voltage
    • 24 V - 20...20 % DC
  • Safety Reliability Data
    • B10d = 300000 AC-15 230 V, , <3 A ISO 13849-1
    • B10d = 750000 AC-15 230 V, , <1 A ISO 13849-1
    • B10d = 10000000 DC-13 24 V, , <2 A ISO 13849-1
  • Connections Terminals
    • 1 spring clamp terminals, removable terminal block
    • 2 spring clamp terminals, removable terminal block
  • Mounting Support
    • omega 35 mm DIN rail EN 50022
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Function Of Module
    • monitoring safety actuators relay output
  • Maximum Switching Voltage
    • 400 V AC
    • 250 V DC
  • Output Type
    • relay, 2 NO + 1 NC, volt-free
  • Switching Voltage
    • 10 V DC
  • Vibration Resistance
    • +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
  • Safety Level
    • can reach category 4 ISO 13849-1
    • can reach PL = e ISO 13849-1
    • can reach SIL 3 IEC 61508
    • SILCL 3 IEC 62061
  • Electromagnetic Compatibility
    • electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2
    • electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2
    • susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3
    • susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
  • Number Of Outputs
    • 2 relay
  • Cable Cross Section
    • 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end
    • 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel
    • 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel
    • 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end
    • 0.5-1 mm² - AWG 20...AWG 18 flexible with cable end, with double bezel
  • Insulation
    • 250 V AC between power supply and housing IEC 61800-5-1
  • Shock Resistance
    • 10 gn 16 ms 1000 shocks on each axis)IEC 61496-1
  • Associated Fuse Rating
    • 3.5 A, slow-blow
  • Local Signalling
    • 1 LED green PWR power ON
    • 1 LED green RUN RUN (status)
    • 1 LED red E IN internal error
    • 1 LED red E EX external error
    • 2 LEDs orange ADDR node address
    • 1 LED green/red RELAY K1 relay contact
  • UIMP Rated Impulse Withstand Voltage
    • 4 kV IEC 61800-5-1
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001232_3D-CAD
  • Complementary Attributes
    • Maximum Power Dissipation In W : 3 W
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-01-12
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1847
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Device Short Name : XPSMCM
    • Number Of Terminal Blocks : 4
    • Package Weight Lbs : 241.0 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : safe relay output module
    • Quality Labels : CE
    • Range Of Product : Preventa Safety automation
    • Returnability : No
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Accessories : XPSMCMCN0000SG
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : safe relay output module
    • Range Of Product : Preventa Safety automation
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=416421692&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Relative Humidity : 10-95 %
  • Specifications
    • Country of Origin : Italy
