Schneider Electric at Mayer

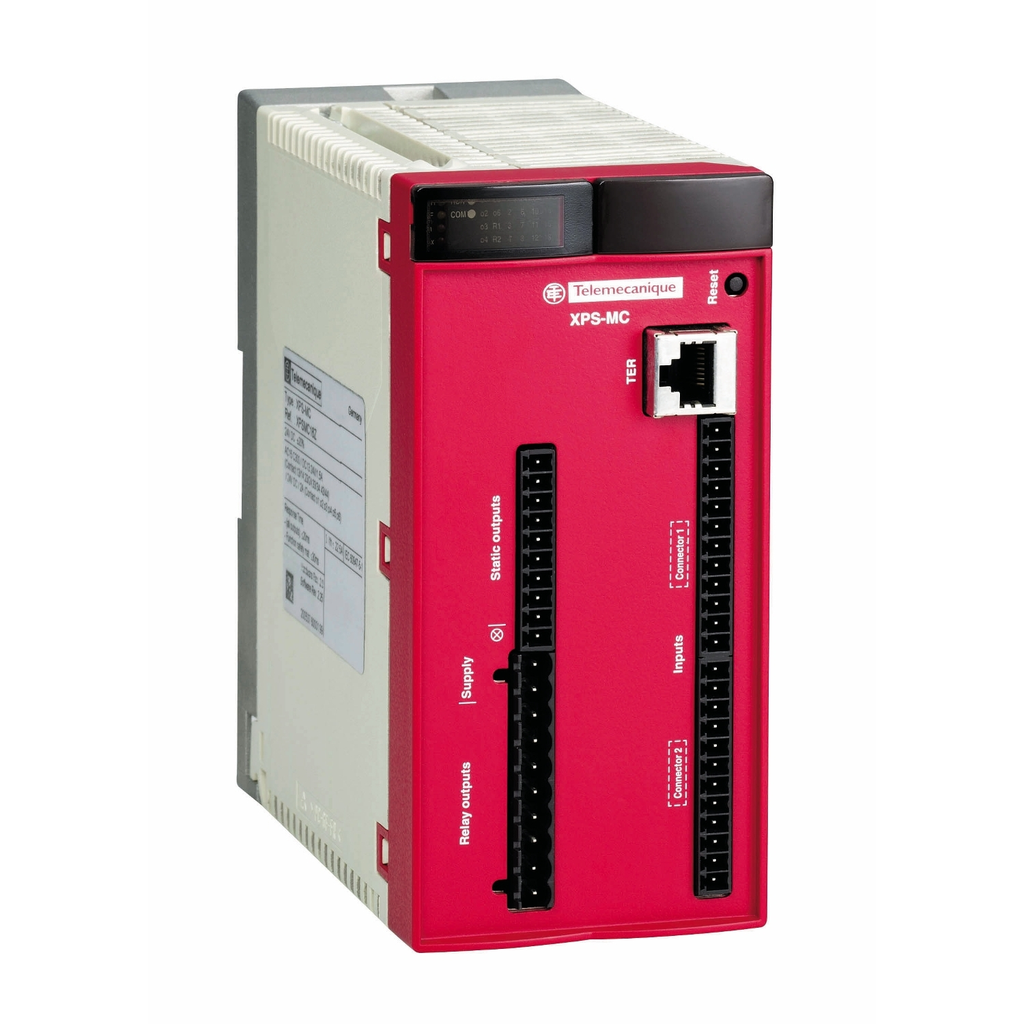

safety controller XPS-MC - 24 V DC - 16 input - 32 LEDs signalling

safety controller XPS-MC - 24

SQDXPSMC16ZP XPSMC16ZP 3389119010269
3703.83 / EA
http://schema.org/OutOfStock
safety controller XPS-MC - 24 V DC - 16 input - 32 LEDs signalling
  • Depth: 153 mm
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Port Protocol : Modbus/Profibus, Modbus 1 RJ45, serial link 1200 bps, 2400 bps, 4800 bps, 9600 bps or 19200 bps, Profibus 1 SUB-D 9-pin female, serial link 12 Mbps
  • Physical Attributes
    • Exchange Size : 14 words
  • Conformance Attributes
    • Product Certifications : UL, CSA, TÜV
    • Standards : EN 1760-1/ISO 13856-1, EN 574/ISO 13851, IEC 60947-5-1, IEC 61508, IEC 60204-1, EN 954-1/EN/ISO 13849-1, IEC 61496-1
  • Complementary Attributes
    • Maximum Line Resistance : 100 Ohm <2000 m
    • Minimum Output Current : 10 mA relay output
    • Minimum Output Voltage : 17 V relay output
    • Uc Control Circuit Voltage : 28.8 V
    • Ui Rated Insulation Voltage : 300 V 2)IEC 60647-5-1, DIN VDE 0110 part 1
    • Uimp Rated Impulse Withstand Voltage : 4 kV III IEC 60647-5-1, DIN VDE 0110 part 1
    • Us Rated Supply Voltage : 24 V DC - 20...20 %
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Associated Fuse Rating : 16 A gL power supply, 4 A gL relay output, 6 A fast blow relay output
    • Data Format : 1 start bit/8 data bits, 1 stop bit even or odd, 2 stop bits without parity, RTU (Remote Terminal Unit) mode
    • Function Of Module : emergency stop monitoring, with or without time delay, 1 or 2-channel wiring, enabling switch monitoring, 2 or 3 contacts, foot switch monitoring, guard monitoring with 1 or 2 limit switches, magnetic switch monitoring category 4 EN/IEC 61496, muting function of light curtains, position selector, safety mat monitoring, safety time delays, shaft/chain breaking monitor, zero speed detection, light curtain monitoring category 4 IEC 61496, two-hand control category 3 EN 574/ISO 13851
    • Number Of Addresses : 1-125 Profibus, 1-247 Modbus
    • Parity : even Modbus, no Modbus, odd Modbus
    • Safety Level : can reach PL e/category 4 EN 954-1/EN/ISO 13849-1, can reach SIL 3 IEC 61508
    • Safety Use Category : category 4 maximum EN 954-1/EN/ISO 13849-1, PLE maximum ISO 13849-1, SIL 3 maximum IEC 61508
    • Supported Modbus Function : 01 8-bit output data/32-bit input data, 02 32-bit input data/8-bit output data, 03 information and errors
    • Ith Conventional Free Air Thermal Current : 16 A relay output, 6.5 A static output circuit
    • Carbon Footprint Of The Distribution Phase A4 : 0.16566000093623626, 0.2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 2 kg CO2 eq., 2.1600534242863487
    • Carbon Footprint Of The Installation Phase A5 : 0.016962943622205358, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 44 kg CO2 eq., 43.57655055344971
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 446 kg CO2 eq., 446.0151741052107
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : End of commerc. announced
    • Return Indicator : N
    • Stocking Flag : Y
    • Stock Policy : 2
    • Device Type : PLC System - PLC CPU
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1406025EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 1901
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Local Signalling : 32 LEDs
    • Method Of Access : slave
    • Mounting Support : mounting plate
    • Power Consumption In W : 12 W
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : configurable safety controller
    • Range Of Product : Preventa Safety automation
    • Response Time : configurable : 20 ms or 30 ms with software XPSMCWIN
    • Returnability : No
    • Safety Module Name : XPSMC
    • Software Version : v6.2.4
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 529 kg CO2 eq.
    • Type Of Start : configurable
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Warranty In Months : 18
    • Pep Code : ENVPEP1406025_V3
    • Database Version : 2024-01
    • Pep Verification Date : 2026-01-15
    • Pcr Version : PCR-ed4-FR-2021 09 06
    • Psr Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : To monitor with multiple safety means the presence of residual and hazardous voltage and short-circuits between each input and earth and between 32 inputs in an industrial environment at 100% of the time for 10 years.To monitor with multiple safety means the presence of residual and hazardous voltage and short-circuits between each input and earth and between 32 inputs in an industrial environment at 100% of the time for 10 years.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Product Weight In G2 : 1270
    • Reference Lifetime In Y2 : 10
    • Energy Consumption On Product Lifetime In Kwh : 1051.2
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; France, FR
    • Energy Model Installation A5 2 : No energy used
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Europe, EU-27
    • Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
    • Recyclability Potential In 2 : 34
    • Offer Owner Code : 190786
    • Height Nominal : 151.5 mm
    • Width Nominal : 74 mm
  • Environment Attributes Main
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 529.3567631255956
    • Ambient Air Temperature For Operation : -10-55 °C
    • Ambient Air Temperature For Storage : -25-85 °C
    • Circularity Profile : ENVEOLI1406025EN
    • Environmental Disclosure : ENVPEP1406025_V3
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20 conforming to IEC 60529
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1406025_V3
    • Pep Verification Date : 2026-01-15
    • Pcr Version : PCR-ed4-FR-2021 09 06
    • Psr Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : configurable safety controller
    • Range Of Product : Preventa Safety automation
  • ETIM
    • ETIM 8 : EC001449
    • ETIM 9 : EC001449
  • Output Attributes
    • Output Thermal Current : 4 A for both outputs simultaneously, 6 A for 1 output and 2 A for the other relay output
    • Output Type : 2 relays, 2 NO contacts (4 NO total), solid state, 6, volt-free
    • Minimum Output Current : 10 mA relay output
    • Minimum Output Voltage : 17 V relay output
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Input Protection Type : external fuse 16 A
    • Number Of Inputs : 16
    • Synchronisation Time Between Inputs : depending on configuration selected
  • Specifications
    • Depth : 153 mm
