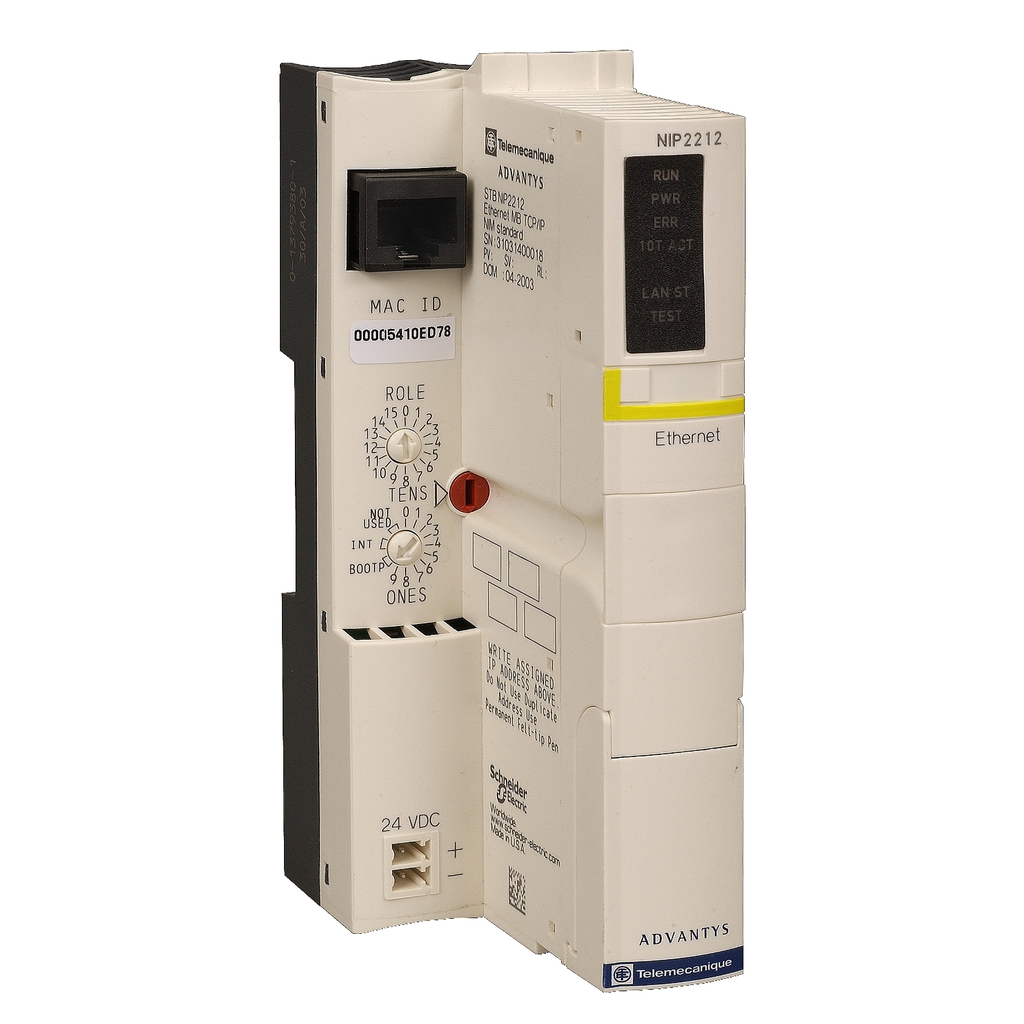

This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40.5mm (height) and weighs 0.13kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, FM Class 1 Division 2, C-Tick and UL. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

• Features
• Adaptable to network
• Simple, open and flexible
• Save time, money by simplifying maintenance, diagnostic task
• 1 primary and maximum 6 extension segments
• Industrial LAN structure
• SELV power supply
• IP20 degree of protection
• Wide range of operating temperature from 0°C to 60°C
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Communication Service : SNMP agent, Modbus TCP/IP messaging, embedded web (configuration,diagnostics and access to variable), BootP/DHCP protocol
• Important Information Attributes
• Persona Type Ids : EU, OM8, SI
• Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
• Local Signalling : 1 LED green status, 1 LED green 10T, 1 LED green island state (RUN), 1 LED green power supply (PWR)1 LED red module error (ERR)1 LED yellow test mode
• Vibration Resistance : +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)
• Certificate Agency : CSA, UL, FM Class 1 Division 2, ATEX Cat 3G, C-tick
• Local Data Status : Publishable
• Local Publishable Date : 2024-01-12
• Return Indicator : Y
• Device Type : Automation - Distributed inputs/ouputs
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2023
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 4
• Tier : 4
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Bearing Track Assembly Possible : true
• Electromagnetic Compatibility : immunity to electromagnetic interference IEC 61131-2
• Front Installation Possible : false
• Marking : CE
• Network Type : AC/DC
• Number Of Devices Per Segment : 0-256
• Number Of Hw Interfaces Industrial Ethernet : 1
• Number Of Segments : 1 primary, maximum 6 extensions
• Power Supply Type : SELV
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : standard Network Interface Module
• Radio Standard Bluetooth : false
• Radio Standard Gprs : false
• Radio Standard Gsm : false
• Radio Standard Umts : false
• Range Of Product : Modicon STB distributed I/O solution
• Returnability : Yes
• Shock Resistance : 30 gn 11 msIEC 88 reference 2-27
• Supporting Protocol For Asi : false
• Supporting Protocol For Can : false
• Supporting Protocol For Devicenet : false
• Supporting Protocol For Devicenet Safety : false
• Supporting Protocol For Ethercat : false
• Supporting Protocol For Foundation Fieldbus : false
• Supporting Protocol For Interbus : false
• Supporting Protocol For Knx : false
• Supporting Protocol For Lon : false
• Supporting Protocol For Modbus : false
• Supporting Protocol For Other Bus Systems : false
• Supporting Protocol For Profibus : false
• Supporting Protocol For Profinet Cba : false
• Supporting Protocol For Profinet Io : false
• Supporting Protocol For Profisafe : false
• Supporting Protocol For Safetybus P : false
• Supporting Protocol For Sercos : false
• Supporting Protocol For Suconet : false
• Sustainable Packaging : No
• Transmission Rate : 10 Mbit/s
• Certified For Ul Hazardous Location Class I : false
• Certified For Ul Hazardous Location Class Ii : false
• Certified For Ul Hazardous Location Class Iii : false
• Certified For Ul Hazardous Location Division 1 : false
• Certified For Ul Hazardous Location Division 2 : false
• Dc Supply Voltage : 24-24 V
• Potential Separation Present : true
• System Accessory : true
• Radio Standard Egprs : false
• Radio Standard Lte : false
• Height Nominal : 128.3 mm
• Width Nominal : 40.5 mm
• Number Of Addressable I/O Module : 0-32 per island
• Supporting Protocol For Ethernet/Ip : false
• Supporting Protocol For Tcp/Ip : false
• Wall Mounting/Direct Mounting Possible : false
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8517620090
• Appendant Operation Agent Ex Ia : false
• Appendant Operation Agent Ex Ib : false
• Certified For Ul Hazardous Location Group A Acetylene : false
• Certified For Ul Hazardous Location Group B Hydrogen : false
• Certified For Ul Hazardous Location Group C Ethylene : false
• Certified For Ul Hazardous Location Group D Propane : false
• Certified For Ul Hazardous Location Group E Metal Dusts : false
• Certified For Ul Hazardous Location Group F Carbonaceous Dust : false
• Certified For Ul Hazardous Location Group G Non Conductive Dust : false
• Io Link Master Present : false
• Performance Level According To En Iso 13849 1 : none
• Rack Assembly Possible : true
• Radio Standard Wi Fi 802.11 : false
• Supporting Protocol For As Interface Safety At Work : false
• Supporting Protocol For Data Highway : false
• Supporting Protocol For Interbus Safety : false
• Warranty In Months : 18
• Environment Attributes Main
• Ambient Air Temperature For Operation : -25-70 °C with derating factor, -25-70 °C with derating factor, 0-60 °C without derating, -25-70 °C with derating factor, -25-70 °C with derating factor
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Ambient Air Temperature For Storage : -40-85 °C-40-85 °C
• Environmental Disclosure : ENVPEP0808003EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP20
• Operating Altitude : <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 95-95 % 60-60 °C without condensation
• Pep Code : ENVPEP0808003EN
• General Attributes
• Product Or Component Type : standard Network Interface Module
• Range Of Product : Modicon STB distributed I/O solution
• ETIM
• ETIM 8 : EC001604
• ETIM 9 : EC001604
• ETIM 10 : EC001604
• Output Attributes
• Nominal Output Current : 0.575 A 60-70 °C, 1.2 A
• Output Voltage : 5.25 V DC +/- 0.21 %)logic bus
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Input Current : 430 mA supply circuit
• Specifications
• Country of Origin : France, United States
• Depth : 70 mm
