basic analog input kit, Modicon STB, 4 to 20mA, 2I, 10 bits

ANALOG C IN 2CHBASIC4-20AKIT C

SQDSTBACI1225K STBACI1225K 3595863948387
538.26 / EA
http://schema.org/OutOfStock

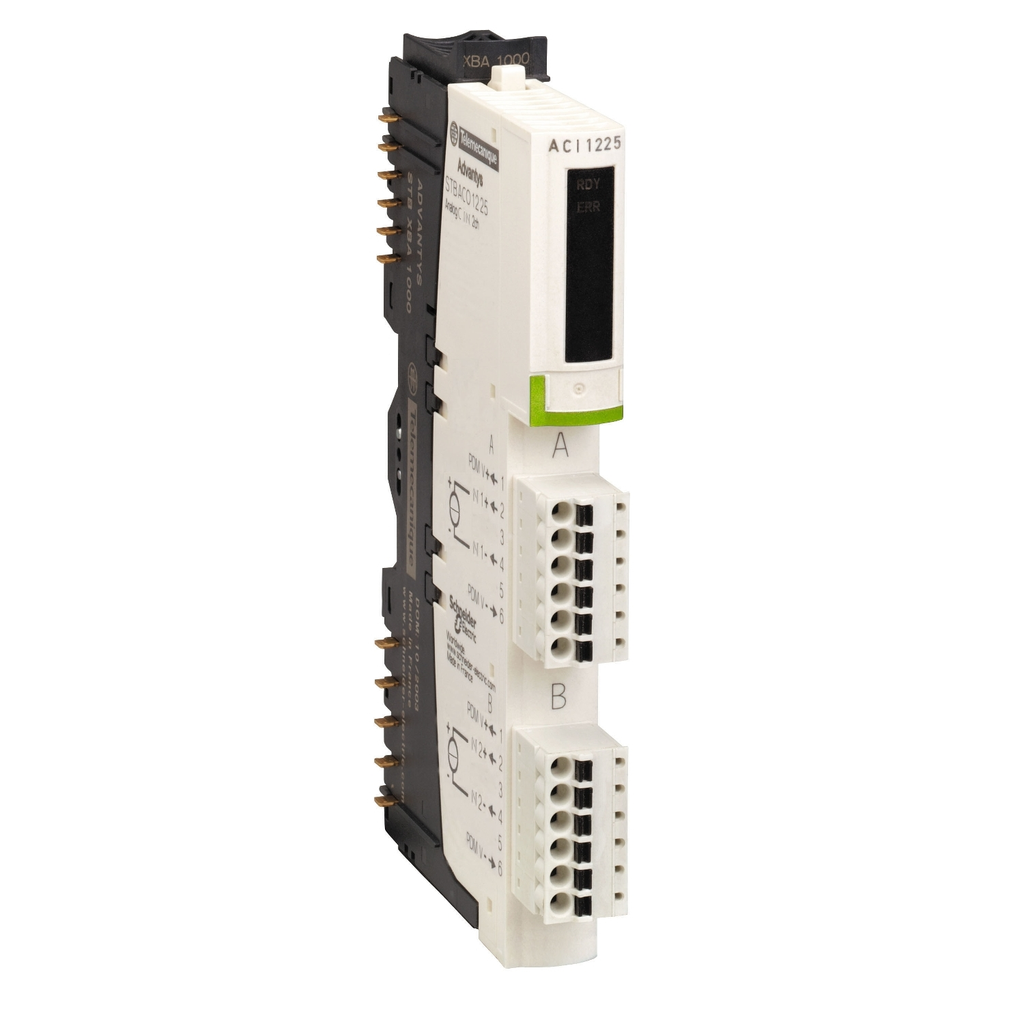

Mayer-DDS-basic analog input kit, Modicon STB, 4 to 20mA, 2I, 10 bits-1
  • Country of Origin: France
  • Depth: 70 mm
  • Height: 13.9 mm
  • Warranty Length: 18 mth
  • Width: 128.3 mm
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic analogue input kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 2 analogue inputs (current 4mA to 20mA) with 10bit resolution. This product is compatible with most major fieldbus networks. It is an analogue input kit with a rated supply voltage of 24V DC and a current consumption of 30mA at 5V DC for logic bus. The response time is 5ms. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, ATEX category 3G, CE, UL, CSA and C-Tick. This kit is suitable for use with mounting base STBXBA1000 and power distribution module STBPDT3100/3105. The kit includes STBXTS1100, 6-terminal screw type connector, STBXBA1000 base, STBXTS2100, 6-terminal spring clamp connector and STBACI1225 module. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a master controller via a bus or communication network.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic analogue input kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 2 analogue inputs (current 4mA to 20mA) with 10bit resolution. This product is compatible with most major fieldbus networks. It is an analogue input kit with a rated supply voltage of 24V DC and a current consumption of 30mA at 5V DC for logic bus. The response time is 5ms. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, ATEX category 3G, CE, UL, CSA and C-Tick. This kit is suitable for use with mounting base STBXBA1000 and power distribution module STBPDT3100/3105. The kit includes STBXTS1100, 6-terminal screw type connector, STBXBA1000 base, STBXTS2100, 6-terminal spring clamp connector and STBACI1225 module. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a master controller via a bus or communication network.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : C-tick || UL || CSA || FM Class 1 Division 2 || ATEX Cat 3G
    • Shock Resistance : 30 gn 11 ms IEC 88 reference 2-27
    • Vibration Resistance : +/-0.35 mm 10-58 Hz || 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail
    • Ip Degree Of Protection : IP20 conforming to IEC 61131-2 class 1
    • Pollution Degree : 2 IEC 60664-1
    • Ambient Air Temperature For Storage : -40-85 °C without derating
    • Relative Humidity : 95-95 % 60-60 °C without condensation
    • Operating Altitude : <= 6561.68 ft (2000 m)
    • Ambient Air Temperature For Operation : 32...140 °F without derating
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Scip Number : 6830dd70-e4bc-47df-85c7-e41f888576f4
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Take-Back : No
  • Complementary
    • Insulation Between Channels And Logic Bus : 1500 V for 1 minute
    • Cold Swapping : yes
    • Maximum Supply Current For Sensors : 100 mA per input channels
    • Input Impedance : <= 300 Ohm
    • Height : 13.9 mm
    • Insulation Between Channels And Sensor Bus : 30 V
    • Status Led : 1 LED (Green) module status (RDY)
    • Hot Swapping Fallback : no for basic NIMs
    • Differential Linearity : monotonic
    • Integral Linearity : +/- 0.2 %FS
    • Supply : power distribution module
    • Data Format : EN 61131-2 || IEC 61131-2
    • Current Consumption : 30 mA 5 V DC logic bus
    • Marking : CE
    • Temperature Drift : +/-0.01 %/°C
    • Addressing Requirement : 2 input words
    • Absolute Accuracy Error : +/- 0.5 % of full scale 25 °C
    • Response Time : 5 ms
    • Absolute Maximum Input : 25 mA/50 V DC
    • Update Time : 10 ms
    • Width : 128.3 mm
    • Overvoltage Category : II
    • Depth : 70 mm
    • Product Compatibility : mounting base STBXBA1000 || power distribution module STBPDT3100/3105
    • [Us] Rated Supply Voltage : 24 V DC
  • Specifications
    • Country of Origin : France
    • Width : 128.3 mm
    • Height : 13.9 mm
    • Range Of Product : Modicon STB distributed I/O solution
    • Type Of Filter : single low pass input filter 25 Hz
    • Product Or Component Type : basic analog input kit
    • Analogue Input Number : 2
    • Analogue Input Resolution : 10 bits
    • Kit Composition : STBXTS1100, 6-terminal screw type connector || STBXBA1000 base || STBXTS2100, 6-terminal spring clamp connector || STBACI1225 module
    • Analogue Input Type : current 4...20 mA
