basic analog input kit, Modicon STB, 0 to 10V, 2I, 10 bits

ANALOG 0-10V IN 2CH BASE KIT C

SQDSTBAVI1255K STBAVI1255K 3595863948912
538.26 / EA
http://schema.org/OutOfStock

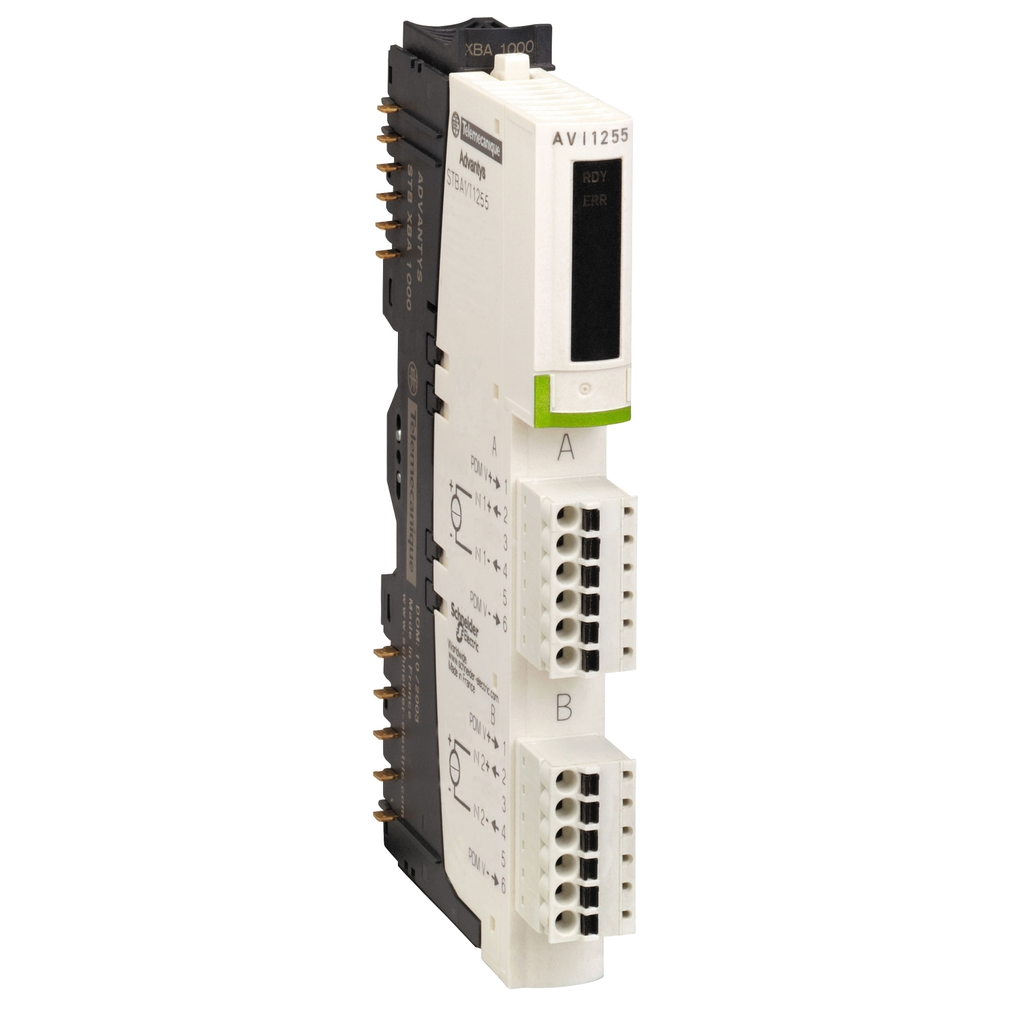

Mayer-DDS-basic analog input kit, Modicon STB, 0 to 10V, 2I, 10 bits-1
  • Country of Origin: Indonesia
  • Net Weight: 0.116 kg
  • Warranty Length: 18 mth
  • Weight: 0.116 kg
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic analogue input kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 2 analogue inputs (voltage 0V to 10V) with 10bit resolution. This product is compatible with most major fieldbus networks. It is an analogue input kit with a rated supply voltage of 24V DC and a current consumption of 30mA at 5V DC for logic bus. It is an IP20 rated product. It weighs 0.116kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, ATEX category 3G, CE, UL, CSA and C-Tick. This kit is suitable for use with mounting base STBXBA1000 and power distribution module STBPDT3100/3105. The kit includes STBAVI1255 module, STBXTS2100, 6-terminal spring clamp connector, STBXTS1100, 6-terminal screw type connector and STBXBA1000 base. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a master controller via a bus or communication network.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic analogue input kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 2 analogue inputs (voltage 0V to 10V) with 10bit resolution. This product is compatible with most major fieldbus networks. It is an analogue input kit with a rated supply voltage of 24V DC and a current consumption of 30mA at 5V DC for logic bus. It is an IP20 rated product. It weighs 0.116kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, ATEX category 3G, CE, UL, CSA and C-Tick. This kit is suitable for use with mounting base STBXBA1000 and power distribution module STBPDT3100/3105. The kit includes STBAVI1255 module, STBXTS2100, 6-terminal spring clamp connector, STBXTS1100, 6-terminal screw type connector and STBXBA1000 base. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a master controller via a bus or communication network.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : FM Class 1 Division 2 || ATEX Cat 3G || UL || CSA || C-tick
    • Shock Resistance : 30 gn 11 ms IEC 88 reference 2-27
    • Vibration Resistance : +/-0.35 mm 10-58 Hz || 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail
    • Ip Degree Of Protection : IP20 conforming to IEC 61131-2 class 1
    • Pollution Degree : 2 IEC 60664-1
    • Ambient Air Temperature For Storage : -40-85 °C without derating
    • Relative Humidity : 95-95 % 60-60 °C without condensation
    • Operating Altitude : <= 6561.68 ft (2000 m)
    • Ambient Air Temperature For Operation : 32...140 °F without derating
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Scip Number : 6830dd70-e4bc-47df-85c7-e41f888576f4
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Take-Back : No
  • Complementary
    • Insulation Between Channels And Logic Bus : 1500 V for 1 minute
    • Cold Swapping : yes
    • Maximum Supply Current For Sensors : 100 mA per input channels
    • Input Impedance : 400 kOhm
    • Insulation Between Channels And Sensor Bus : 30 V
    • Status Led : 1 LED (Green) module status (RDY)
    • Hot Swapping Fallback : no for basic NIMs
    • Differential Linearity : monotonic
    • Integral Linearity : +/- 0.2 %FS
    • Supply : power distribution module
    • Data Format : EN 61131-2 || IEC 61131-2
    • Current Consumption : 30 mA 5 V DC logic bus
    • Marking : CE
    • Net Weight : 0.116 kg
    • Temperature Drift : +/-0.01 %/°C
    • Addressing Requirement : 2 input words
    • Absolute Accuracy Error : +/- 0.5 % of full scale 25 °C
    • Response Time : 5 ms
    • Absolute Maximum Input : 50 V DC
    • Maximum Source Impedance : 1 kOhm
    • Update Time : 10 ms
    • Overvoltage Category : II
    • Product Compatibility : mounting base STBXBA1000 || power distribution module STBPDT3100/3105
    • [Us] Rated Supply Voltage : 24 V DC
  • Specifications
    • Country of Origin : Indonesia
    • Weight : 0.116 kg
    • Range Of Product : Modicon STB distributed I/O solution
    • Type Of Filter : single low pass input filter 25 Hz
    • Product Or Component Type : basic analog input kit
    • Analogue Input Number : 2
    • Analogue Input Resolution : 10 bits
    • Kit Composition : STBAVI1255 module || STBXTS2100, 6-terminal spring clamp connector || STBXTS1100, 6-terminal screw type connector || STBXBA1000 base
    • Analogue Input Type : voltage 0...10 V
