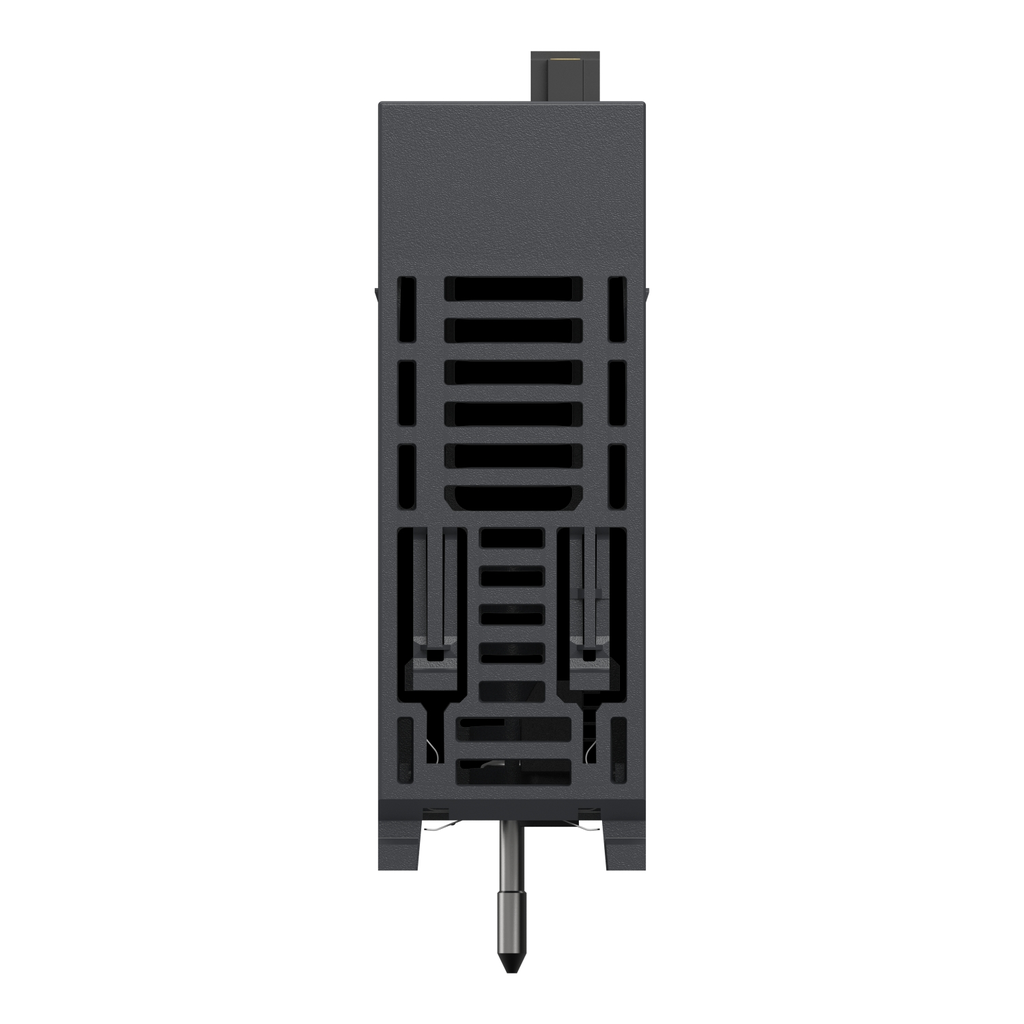

This analog input module is part of the Modicon X80 modules. It has 4 isolated low level inputs (15 bits + sign). It offers, voltage, thermocouple, temperature probe or resistor inputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

• Features
• Modularity and scalability
• Robustness and reliability
• IP20 protection for harshest environments
• Wide range of operating temperature from 0°C to 60°C
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Conversion Value : +/- 100 % 400 Ohm, +/- 100 % 400 Ohm, +/- 100 % 4000 Ohm, +/- 100 % 4000 Ohm, +/- 102.5 % +/- 1.28 V, +/- 102.5 % +/- 1.28 V, +/- 102.5 % +/- 160 mV, +/- 102.5 % +/- 160 mV, +/- 102.5 % +/- 320 mV, +/- 102.5 % +/- 320 mV, +/- 102.5 % +/- 40 mV, +/- 102.5 % +/- 40 mV, +/- 102.5 % +/- 640 mV, +/- 102.5 % +/- 640 mV, +/- 102.5 % +/- 80 mV, +/- 102.5 % +/- 80 mV, +/- 100 % 400 Ohm, +/- 100 % 400 Ohm, +/- 100 % 4000 Ohm, +/- 102.5 % +/- 1.28 V, +/- 102.5 % +/- 1.28 V, +/- 102.5 % +/- 160 mV, +/- 102.5 % +/- 320 mV, +/- 102.5 % +/- 40 mV, +/- 102.5 % +/- 640 mV, +/- 102.5 % +/- 80 mV
• Maximum Wiring Resistance : 20 Ohm 3 wires Ni 100, 20 Ohm 3 wires Pt 100, 200 Ohm 3 wires Ni 1000, 200 Ohm 3 wires Pt 100050 Ohm 4 wires Ni 100, 50 Ohm 4 wires Pt 100500 Ohm 4 wires Pt 100020 Ohm 2 wires Cu 10, 20 Ohm 2 wires Ni 100, 20 Ohm 2 wires Pt 100, 20 Ohm 3 wires Cu 10200 Ohm 2 wires Ni 1000, 200 Ohm 2 wires Pt 100050 Ohm 4 wires Cu 10, 500 Ohm 4 wires Ni 1000
• Important Information Attributes
• Persona Type Ids : EU, OM8, SI
• Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
• Detection Type : open circuit Cu 10, open circuit Ni 100, open circuit Ni 1000, open circuit Pt 100, open circuit Pt 1000, open circuit thermocouple B, open circuit thermocouple E, open circuit thermocouple J, open circuit thermocouple K, open circuit thermocouple L, open circuit thermocouple N, open circuit thermocouple R, open circuit thermocouple S, open circuit thermocouple T, open circuit thermocouple U
• Isolation Voltage : 1400 V DC between channels and bus750 V DC between channels, 750 V DC between channels and ground
• Measurement Error : +/- 0.7 °C Ni 1000 25 °C, +/- 0.7 °C Ni 1000 25 °C, +/- 0.7 °C Ni 1000 25 °C, +/- 1.3 °C Ni 1000 0...60 °C, +/- 1.3 °C Ni 1000 0...60 °C, +/- 1.3 °C Ni 1000 0...60 °C, +/- 2 °C Pt 100 0...60 °C, +/- 2 °C Pt 100 0...60 °C, +/- 2 °C Pt 100 0...60 °C, +/- 2 °C Pt 1000 0...60 °C, +/- 2 °C Pt 1000 0...60 °C, +/- 2 °C Pt 1000 0...60 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2.1 °C Pt 100 25 °C, +/- 2.1 °C Pt 100 25 °C, +/- 2.1 °C Pt 100 25 °C, +/- 2.1 °C Pt 1000 25 °C, +/- 2.1 °C Pt 1000 25 °C, +/- 2.1 °C Pt 1000 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 3 °C Ni 100 0...60 °C, +/- 3 °C Ni 100 0...60 °C, +/- 3 °C Ni 100 0...60 °C, +/- 3 °C thermocouple L 25 °C, +/- 3 °C thermocouple L 25 °C, +/- 3 °C thermocouple L 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 4 °C Cu 10 0...60 °C, +/- 4 °C Cu 10 0...60 °C, +/- 4 °C Cu 10 0...60 °C, +/- 4 °C Cu 10 25 °C, +/- 4 °C Cu 10 25 °C, +/- 4 °C Cu 10 25 °C, +/- 4.5 °C thermocouple J 0...60 °C, +/- 4.5 °C thermocouple J 0...60 °C, +/- 4.5 °C thermocouple J 0...60 °C, +/- 4.5 °C thermocouple L 0...60 °C, +/- 4.5 °C thermocouple L 0...60 °C, +/- 4.5 °C thermocouple L 0...60 °C, +/- 4.5 °C thermocouple R 0...60 °C, +/- 4.5 °C thermocouple R 0...60 °C, +/- 4.5 °C thermocouple R 0...60 °C, +/- 4.5 °C thermocouple S 0...60 °C, +/- 4.5 °C thermocouple S 0...60 °C, +/- 4.5 °C thermocouple S 0...60 °C, +/- 4.5 °C thermocouple U 0...60 °C, +/- 4.5 °C thermocouple U 0...60 °C, +/- 4.5 °C thermocouple U 0...60 °C, +/- 5 °C thermocouple B 0...60 °C, +/- 5 °C thermocouple B 0...60 °C, +/- 5 °C thermocouple B 0...60 °C, +/- 5 °C thermocouple E 0...60 °C, +/- 5 °C thermocouple E 0...60 °C, +/- 5 °C thermocouple E 0...60 °C, +/- 5 °C thermocouple K 0...60 °C, +/- 5 °C thermocouple K 0...60 °C, +/- 5 °C thermocouple K 0...60 °C, +/- 5 °C thermocouple N 0...60 °C, +/- 5 °C thermocouple N 0...60 °C, +/- 5 °C thermocouple N 0...60 °C, +/- 5 °C thermocouple T 0...60 °C, +/- 5 °C thermocouple T 0...60 °C, +/- 5 °C thermocouple T 0...60 °C, <= 0.15 % of full scale +/- 1.28 V 0...60 °C, <= 0.15 % of full scale +/- 1.28 V 0...60 °C, <= 0.15 % of full scale +/- 1.28 V 0...60 °C, <= 0.15 % of full scale +/- 160 mV 0...60 °C, <= 0.15 % of full scale +/- 160 mV 0...60 °C, <= 0.15 % of full scale +/- 160 mV 0...60 °C, <= 0.15 % of full scale +/- 320 mV 0...60 °C, <= 0.15 % of full scale +/- 320 mV 0...60 °C, <= 0.15 % of full scale +/- 320 mV 0...60 °C, <= 0.15 % of full scale +/- 40 mV 0...60 °C, <= 0.15 % of full scale +/- 40 mV 0...60 °C, <= 0.15 % of full scale +/- 40 mV 0...60 °C, <= 0.15 % of full scale +/- 640 mV 0...60 °C, <= 0.15 % of full scale +/- 640 mV 0...60 °C, <= 0.15 % of full scale +/- 640 mV 0...60 °C, <= 0.15 % of full scale +/- 80 mV 0...60 °C, <= 0.15 % of full scale +/- 80 mV 0...60 °C, <= 0.15 % of full scale +/- 80 mV 0...60 °C, <= 0.2 % of full scale 400 Ohm 0...60 °C, <= 0.2 % of full scale 400 Ohm 0...60 °C, <= 0.2 % of full scale 400 Ohm 0...60 °C, <= 0.2 % of full scale 4000 Ohm 0...60 °C, <= 0.2 % of full scale 4000 Ohm 0...60 °C, <= 0.2 % of full scale 4000 Ohm 0...60 °C0.05 % of full scale +/- 160 mV 25 °C, 0.05 % of full scale +/- 320 mV 25 °C, 0.05 % of full scale +/- 40 mV 25 °C, 0.05 % of full scale +/- 640 mV 25 °C, 0.05 % of full scale +/- 80 mV 25 °C0.12 % of full scale 4000 Ohm 25 °C+/- 0.7 °C Ni 1000 25 °C, +/- 0.7 °C Ni 1000 25 °C, +/- 0.7 °C Ni 1000 25 °C, +/- 1.3 °C Ni 1000 0...60 °C, +/- 1.3 °C Ni 1000 0...60 °C, +/- 2 °C Pt 100 0...60 °C, +/- 2 °C Pt 100 0...60 °C, +/- 2 °C Pt 1000 0...60 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 3 °C Ni 100 0...60 °C, +/- 3 °C thermocouple L 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 4 °C Cu 10 0...60 °C, +/- 4 °C Cu 10 0...60 °C, +/- 4.5 °C thermocouple J 0...60 °C, +/- 5 °C thermocouple B 0...60 °C, <= 0.15 % of full scale +/- 1.28 V 0...60 °C, <= 0.15 % of full scale +/- 1.28 V 0...60 °C, <= 0.15 % of full scale +/- 160 mV 0...60 °C, <= 0.15 % of full scale +/- 320 mV 0...60 °C, <= 0.15 % of full scale +/- 40 mV 0...60 °C, <= 0.15 % of full scale +/- 640 mV 0...60 °C, <= 0.15 % of full scale +/- 80 mV 0...60 °C, <= 0.2 % of full scale 400 Ohm 0...60 °C, <= 0.2 % of full scale 400 Ohm 0...60 °C, <= 0.2 % of full scale 4000 Ohm 0...60 °C, 0.05 % of full scale +/- 1.28 V 25 °C, 0.12 % of full scale 400 Ohm 25 °C
• Measurement Resolution : 0.1 °C Cu 10, 0.1 °C Ni 100, 0.1 °C Ni 1000, 0.1 °C Pt 100, 0.1 °C Pt 1000, 0.1 °C thermocouple B, 0.1 °C thermocouple E, 0.1 °C thermocouple J, 0.1 °C thermocouple K, 0.1 °C thermocouple L, 0.1 °C thermocouple N, 0.1 °C thermocouple R, 0.1 °C thermocouple S, 0.1 °C thermocouple T, 0.1 °C thermocouple U1280/2exp14 mV +/- 1.28 V160/2exp14 mV +/- 160 mV320/2exp14 mV +/- 320 mV40/2exp14 mV +/- 40 mV12.5 mOhm 400 Ohm125 mOhm 4000 Ohm640/2exp14 mV +/- 640 mV80/2exp14 mV +/- 80 mV
• Nominal Read Cycle Time : 400 ms with temperature probe, 200 ms with thermocouple
• Status Led : 1 LED (Green) RUN1 LED per channel (Green) channel diagnostic1 LED (Red) ERR, 1 LED (Red) I/O
• Temperature Drift : 25 ppm/°C 400 Ohm, 25 ppm/°C 4000 Ohm, 25 ppm/°C Ni 1000, 25 ppm/°C thermocouple B, 25 ppm/°C thermocouple E, 25 ppm/°C thermocouple J, 25 ppm/°C thermocouple K, 25 ppm/°C thermocouple L, 25 ppm/°C thermocouple N, 25 ppm/°C thermocouple R, 25 ppm/°C thermocouple S, 25 ppm/°C thermocouple T, 25 ppm/°C thermocouple U30 ppm/°C +/- 1.28 V, 30 ppm/°C +/- 160 mV, 30 ppm/°C +/- 320 mV, 30 ppm/°C +/- 40 mV, 30 ppm/°C +/- 640 mV, 30 ppm/°C +/- 80 mV, 30 ppm/°C Cu 10, 30 ppm/°C Ni 100, 30 ppm/°C Pt 100, 30 ppm/°C Pt 1000
• Certificate Agency : EAC, RCM, UL, Merchant Navy, CSA, CE
• Carbon Footprint Of The Distribution Phase A4 : 0.0217067636, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.2945544242
• Carbon Footprint Of The Installation Phase A5 : 0.0442022788, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 21 kg CO2 eq., 21.209769697
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 41 kg CO2 eq., 40.6082067039
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-23
• Return Indicator : Y
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2311046EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2438
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Cold Junction Compensation : external by Pt100 probe
• Common Mode Rejection : 120 dB 50/60 Hz
• Current Consumption : 150 mA 3.3 V DC40 mA 24 V DC
• Differential Mode Rejection : 60 dB 50/60 Hz
• Electrical Connection : 40 ways 1 connector
• Mtbf Reliability : 1400000 H
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : analog input module
• Protective Treatment : standard version
• Range Of Product : Modicon X80
• Recalibration : internal
• Returnability : Yes
• Shock Resistance : 30 gn
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 62 kg CO2 eq.
• Type Of Filter : first order digital filtering
• Vibration Resistance : 3 gn
• Database Version : 2022-01
• Data Source : extrapolated product
• Analog/Digital Conversion : sigma delta 16 bits
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8538908180
• Warranty In Months : 18
• Functional Unit Description : The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 62.2836
• Recyclability Potential In % : 3
• Environment Attributes Main
• Ambient Air Temperature For Storage : -40-85 °C, -40-85 °C
• Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 62.1784398675
• Ambient Air Temperature For Operation : 0-60 °C
• Circularity Profile : ENVEOLI2311046EN
• Environmental Disclosure : ENVPEP2311046EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP20
• Operating Altitude : 0...6561.68 ft (0...2000 m)2000...5000 m with derating factor
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 5-95 % 55-55 °C without condensation
• Pep Code : ENVPEP2311046EN
• Pep Verification Date : 2023-11-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : analog input module
• Range Of Product : Modicon X80
• ETIM
• ETIM 8 : EC001420
• ETIM 9 : EC001420
• ETIM 10 : EC001420
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Analogue Input Type : resistor 4000 Ohm 3 wires, resistor 4000 Ohm 4 wires, temperature probe -200...+850 °C Pt 1000 IEC, voltage +/- 1.28 V, voltage +/- 160 mV, voltage +/- 320 mV, voltage +/- 40 mV, voltage +/- 640 mV, voltage +/- 80 mV, resistor 400 Ohm 2 wires, resistor 400 Ohm 3 wires, resistor 400 Ohm 4 wires, resistor 4000 Ohm 2 wires, temperature probe -100...+260 °C Cu 10, temperature probe -100...+450 °C Pt 100 UL/JIS, temperature probe -100...+450 °C Pt 1000 UL/JIStemperature probe -200...+850 °C Pt 100 IECtemperature probe -60...+180 °C Ni 100, temperature probe -60...+180 °C Ni 1000, thermocouple +130...+1820 °C thermocouple Bthermocouple +270...+1300 °C thermocouple Nthermocouple -200...+600 °C thermocouple Uthermocouple -200...+760 °C thermocouple Jthermocouple -200...+900 °C thermocouple Lthermocouple -270...+1000 °C thermocouple Ethermocouple -270...+1370 °C thermocouple Kthermocouple -270...+400 °C thermocouple Tthermocouple -50...+1769 °C thermocouple R, thermocouple -50...+1769 °C thermocouple S
• Input Output Isolation : isolated, isolated
• Permitted Overload On Inputs : +/- 7.5 V +/- 1.28 V, +/- 7.5 V +/- 1.28 V, +/- 7.5 V +/- 160 mV, +/- 7.5 V +/- 160 mV, +/- 7.5 V +/- 320 mV, +/- 7.5 V +/- 320 mV, +/- 7.5 V +/- 40 mV, +/- 7.5 V +/- 40 mV, +/- 7.5 V +/- 640 mV, +/- 7.5 V +/- 640 mV, +/- 7.5 V +/- 80 mV, +/- 7.5 V +/- 80 mV, +/- 7.5 V +/- 1.28 V, +/- 7.5 V +/- 1.28 V, +/- 7.5 V +/- 160 mV, +/- 7.5 V +/- 320 mV, +/- 7.5 V +/- 40 mV, +/- 7.5 V +/- 640 mV, +/- 7.5 V +/- 80 mV
• Analogue Input Number : 4
• Analogue Input Resolution : 15 bits + sign
• Input Level : low level
• Specifications
• Country of Origin : France
• Weight : 166 g
