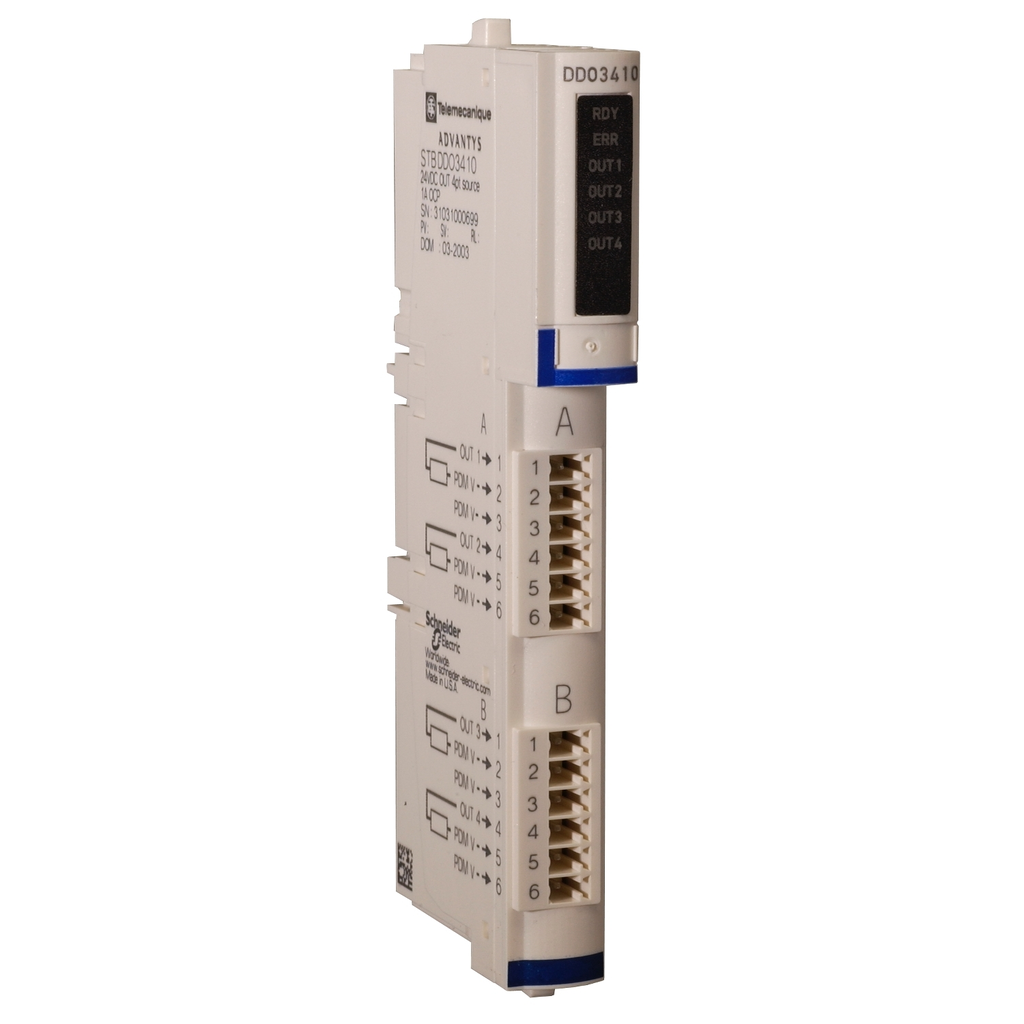

digital output kit, Modicon STB, standard, 24V DC, 4 O

24VDC OUT 4PT KIT CONNS,"

SQDSTBDDO3410K STBDDO3410K 3595863989298
125.70 / EA
http://schema.org/OutOfStock
Mayer-DDS-digital output kit, Modicon STB, standard, 24V DC, 4 O-1
  • Country of Origin: Indonesia
  • Depth: 70 mm
  • Output Voltage: 19.2-30 V
  • Warranty Length: 18 mth
  • Weight: 133 g
This output kit is part of the Modicon STB range, an offer of modular distributed I/O. This standard digital output kit is an accessory kit for Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It includes a digital input module, an STB base, one spring clamp connector, and one screw type connector. Setting can be done via Advantys STB configuration software. It weighs 0.11kg. The kit includes STBXBA1000 base, STBDDO3410 module, STBXTS1100 6-terminal screw type connector, and STBXTS2100 6-terminal spring clamp connector. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a primary controller via a bus or communication network.
QTY
  • Product Description
  • Features
  • Specifications
This output kit is part of the Modicon STB range, an offer of modular distributed I/O. This standard digital output kit is an accessory kit for Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It includes a digital input module, an STB base, one spring clamp connector, and one screw type connector. Setting can be done via Advantys STB configuration software. It weighs 0.11kg. The kit includes STBXBA1000 base, STBDDO3410 module, STBXTS1100 6-terminal screw type connector, and STBXTS2100 6-terminal spring clamp connector. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a primary controller via a bus or communication network.
  • Features
    • Easy to connect
    • 4 outputs
    • Power supply 24 V DC
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Absolute Maximum Voltage : 56 V 1.3 ms
    • Maximum Leakage Current : 0.4 mA 30 V DC at state 0
    • Minimum Load : 0.5 mA
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Kit Composition : STBXTS1100, 6-terminal screw type connector, STBXTS2100, 6-terminal spring clamp connector, STBXBA1000 base, STBDDO3410 module
    • Vibration Resistance : +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)3 gn 58-150 Hz) on 35 x 7.5 mm symmetrical DIN rail5 gn 58-150 Hz) on 35 x 15 mm symmetrical DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)
    • Certificate Agency : FM Class 1 Division 2, UL, CSA
    • Carbon Footprint Of The Distribution Phase A4 : 0.01715985, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.03962735, 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.00555598
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 7 kg CO2 eq., 6.935665
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 16 kg CO2 eq., 16.2918
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Return Indicator : N
    • Device Type : Automation - Distributed inputs/ouputs
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Use Carbon Footprint : 16.2918
    • Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1511012EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 1920
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 4
    • Tier : 4
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Device Application : Industrial Application
    • Electrical Connection : screw terminal
    • Fallback Status : state 0 basic NIMsuser configurable standard NIMs
    • Front Installation Possible : false
    • Hot Swapping Fallback : yes for standard NIMs
    • Isolation Between Channels And Bus : 1500 V for 1 minute
    • Local Signalling : 1 LED (green) for module status (RDY)1 LED per channel (green) for channel status (OUT1 to OUT4)1 LED (red) for module error (ERR)
    • Marking : CE
    • Network Type : AC/DC
    • Optical Interface Present : false
    • Overvoltage Category : II
    • Power Supply Type : power distribution module
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : standard digital output kit
    • Radio Standard Bluetooth : false
    • Radio Standard Gprs : false
    • Radio Standard Gsm : false
    • Radio Standard Umts : false
    • Range Of Product : Modicon STB distributed I/O solution
    • Reset : manual reset COM fault
    • Returnability : No
    • Shock Resistance : 30 gn 11 msIEC 88 reference 2-27
    • Software Version : EIME v5.5
    • Supporting Protocol For Asi : false
    • Supporting Protocol For Can : true
    • Supporting Protocol For Devicenet : true
    • Supporting Protocol For Devicenet Safety : false
    • Supporting Protocol For Ethercat : false
    • Supporting Protocol For Foundation Fieldbus : false
    • Supporting Protocol For Interbus : true
    • Supporting Protocol For Knx : false
    • Supporting Protocol For Lon : false
    • Supporting Protocol For Modbus : true
    • Supporting Protocol For Other Bus Systems : false
    • Supporting Protocol For Profibus : true
    • Supporting Protocol For Profinet Cba : false
    • Supporting Protocol For Profinet Io : false
    • Supporting Protocol For Profisafe : false
    • Supporting Protocol For Safetybus P : false
    • Supporting Protocol For Sercos : false
    • Supporting Protocol For Suconet : false
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 23 kg CO2 eq.
    • Typical Current Consumption : 70 mA 5 V DC
    • Certified For Ul Hazardous Location Class I : false
    • Certified For Ul Hazardous Location Class Ii : false
    • Certified For Ul Hazardous Location Class Iii : false
    • Certified For Ul Hazardous Location Division 1 : false
    • Certified For Ul Hazardous Location Division 2 : false
    • Digital Outputs Configurable : true
    • Fieldbus Connection Over Separate Bus Coupler Possible : true
    • Database Version : 2015-04
    • Data Source : extrapolated product
    • Height Nominal : 13.9 mm
    • Width Nominal : 128.3 mm
    • Supporting Protocol For Ethernet/Ip : true
    • Supporting Protocol For Tcp/Ip : true
    • Wall Mounting/Direct Mounting Possible : false
    • Nbr. Of Units In Pkg. : 1
    • Customs Code : 8538908180
    • Appendant Operation Agent Ex Ia : false
    • Appendant Operation Agent Ex Ib : false
    • Certified For Ul Hazardous Location Group A Acetylene : false
    • Certified For Ul Hazardous Location Group B Hydrogen : false
    • Certified For Ul Hazardous Location Group C Ethylene : false
    • Certified For Ul Hazardous Location Group D Propane : false
    • Certified For Ul Hazardous Location Group E Metal Dusts : false
    • Certified For Ul Hazardous Location Group F Carbonaceous Dust : false
    • Certified For Ul Hazardous Location Group G Non Conductive Dust : false
    • Io Link Master Present : false
    • Rack Assembly Possible : true
    • Supporting Protocol For As Interface Safety At Work : false
    • Supporting Protocol For Data Highway : false
    • Warranty In Months : 18
    • Functional Unit Description : To monitor and control industrial automation process during 10 years 100% of the time
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 27.594
  • Environment Attributes Main
    • Ambient Air Temperature For Storage : -40-85 °C without derating, -40-85 °C without derating-40-85 °C without derating, -40-85 °C without derating
    • Product Compatibility : power distribution module STBPDT3100/3105, I/O base STBXBA1000
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 23.28980818
    • Ambient Air Temperature For Operation : 0-60 °C without derating)
    • Circularity Profile : ENVEOLI1511012EN
    • Environmental Disclosure : ENVPEP1511012EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Operating Altitude : <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 95-95 % 60-60 °C without condensation
    • Pep Code : ENVPEP1511012EN
    • Pep Verification Date : 2015-11-01
    • Pcr Version : PEP-PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : standard digital output kit
    • Range Of Product : Modicon STB distributed I/O solution
  • ETIM
    • ETIM 8 : EC001599
    • ETIM 9 : EC001599
    • ETIM 10 : EC001599
  • Output Attributes
    • Discrete Output Number : solid state at 24 V DC, 4
    • Output Protection Type : power protection integrated fuse on PDM time lag 10 A, reverse polarity protection, short-circuit protection, thermal overload protection
    • Discrete Output Current : 500 mA
    • Discrete Output Logic : positive logic (source)/negative logic (sink)
    • Discrete Output Type : solid state
    • Discrete Output Voltage : 24 V DCsolid state
    • Discrete Output Voltage Type : DC
    • Output Voltage : 19.2...30 V DC
    • Response Time On Output : 560 µs off to on870 µs on to off
  • Surge Protection And Filtering Attributes
    • Surge Current : 5 A 0.5 ms
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Indonesia
    • Weight : 133 g
    • Depth : 70 mm
