network interface module, Modicon STB, standard, Modbus Plus 1Mbit/s

MODBUS PLUS NIM STANDARD

SQDSTBNMP2212 STBNMP2212 3595862055109
504.56 / EA
http://schema.org/OutOfStock

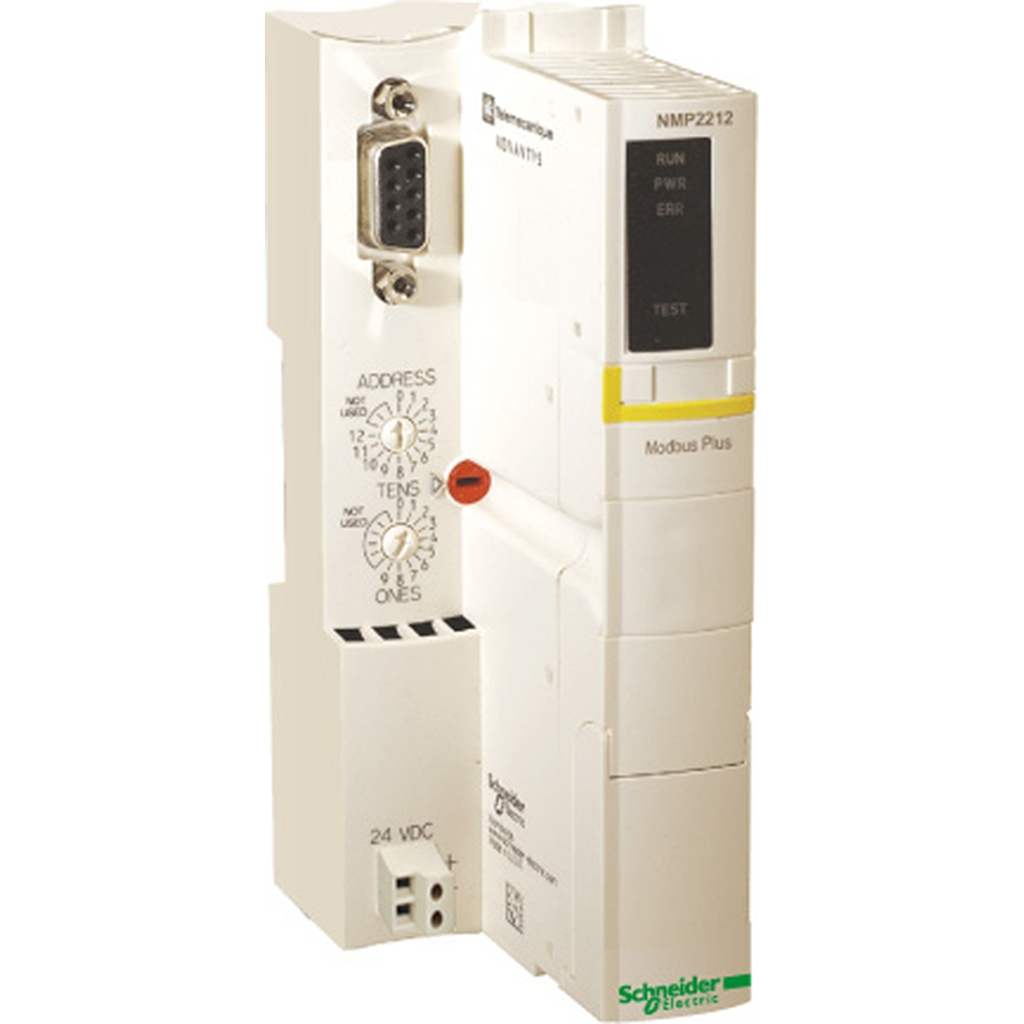

Mayer-DDS-network interface module, Modicon STB, standard, Modbus Plus 1Mbit/s-1
  • Country of Origin: France
  • Depth: 70 mm
  • Height: 40 mm
  • Net Weight: 0.145 kg
  • Output Voltage: 0.21 %, 5.25 V
  • Warranty Length: 18 mth
  • Weight: 0.145 kg
  • Width: 128.3 mm
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : CSA || UL || FM Class 1 Division 2 || C-tick || ATEX Cat 3G
    • Ambient Air Temperature For Operation : 0-60 °C (without derating) || -25-70 °C (with derating factor)
    • Electromagnetic Compatibility : immunity to electromagnetic interference IEC 61131-2
    • Shock Resistance : 30 gn 11 ms IEC 88 reference 2-27
    • Vibration Resistance : 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
    • Ip Degree Of Protection : IP20 conforming to IEC 61131-2 class 1
    • Pollution Degree : 2 IEC 60664-1
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 95-95 % 60-60 °C without condensation
    • Operating Altitude : <= 6561.68 ft (2000 m)
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • Scip Number : f760fd97-89c1-4651-a374-9b8eff254b6a
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Height : 40 mm
    • Number Of Addressable I/O Module : 0-32 per island
    • Status Led : 1 LED (Green) island state (RUN) || 1 LED (Green) power supply (PWR) || 1 LED (Red) module error (ERR) || 1 LED (Yellow) MB+ || 1 LED (Yellow) test mode
    • Output Voltage : 5.25 V DC +/- 0.21 %)logic bus
    • Communication Service : Global Data || peer cop dialogue || peer to peer dialogue
    • Marking : CE
    • Power Supply Type : SELV
    • Input Current : 430 mA supply circuit
    • Net Weight : 0.145 kg
    • Supply Voltage Limits : 19.2-30 V
    • Maximum Supply Current : 700 A
    • Width : 128.3 mm
    • Overvoltage Category : II
    • Depth : 70 mm
    • [Us] Rated Supply Voltage : 24 V DC
    • Nominal Output Current : 0.575 A 60-70 °C || 1.2 A
  • Specifications
    • Country of Origin : France
    • Width : 128.3 mm
    • Height : 40 mm
    • Weight : 0.145 kg
    • Number Of Devices Per Segment : 0-32 per segment || 0-64 all segment
    • Range Of Product : Modicon STB distributed I/O solution
    • Number Of Segments : 1 primary, maximum 6 extensions
    • Transmission Rate : 1 Mbit/s 0-1800 m per segment with 3 repeaters || 1 Mbit/s 0-450 m per segment
    • Product Or Component Type : standard Network Interface Module
    • Structure Type : industrial LAN
    • Integrated Connection Type : Modbus Plus modbus.org 9-way female SUB-D connector 1 twisted pair network) || Modbus Plus modbus.org HE-13 RS232 port) || Modbus Plus modbus.org 8-way female RS232 port)
