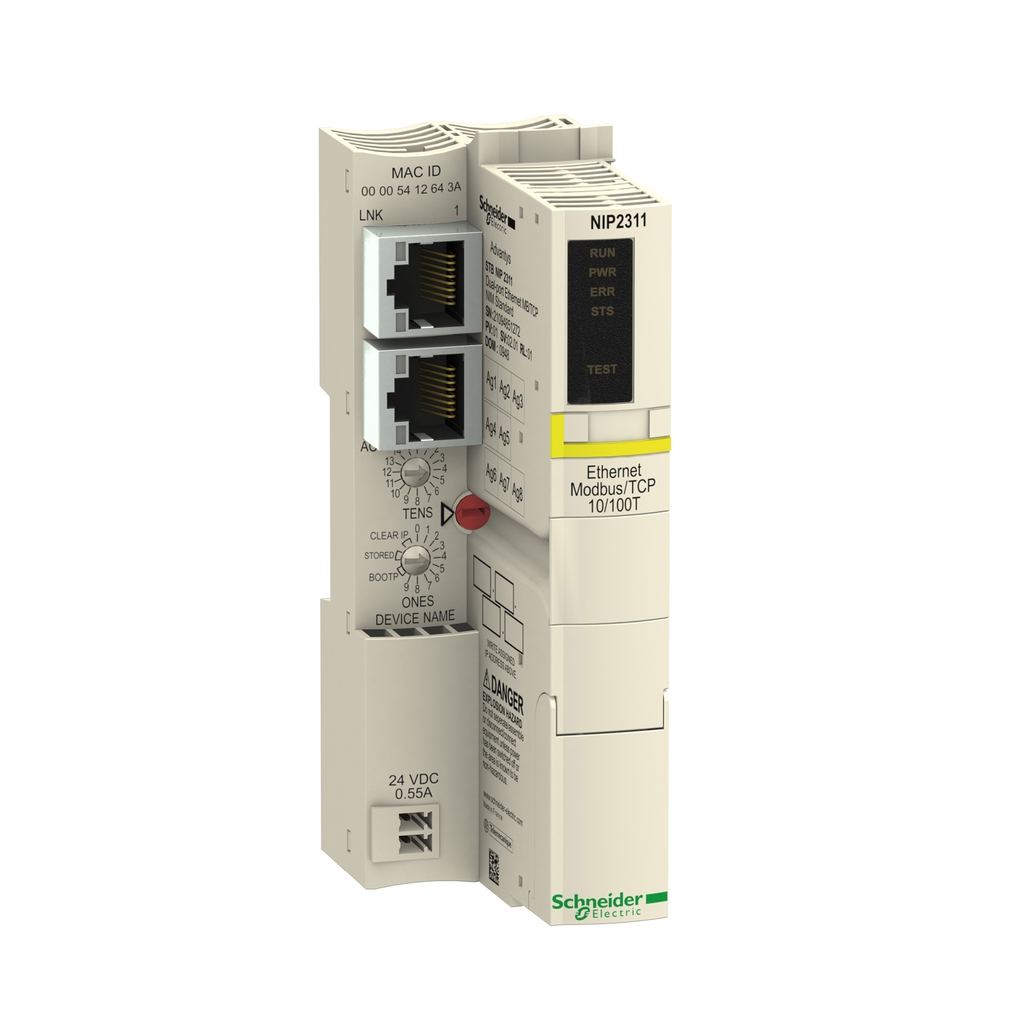

network interface module, Modicon STB, standard, Ethernet, modbus TCP/IP, 10-100Mbits

network interface module, Modicon STB, standard, Ethernet, modbus TCP/IP, 10-100Mbits

SQDSTBNIP2311 STBNIP2311 3595864062273
581.45 / EA
http://schema.org/OutOfStock
Mayer-DDS-network interface module, Modicon STB, standard, Ethernet, modbus TCP/IP, 10-100Mbits-1
  • Country of Origin: France
  • Depth: 70 mm
  • Height: 40.5 mm
  • Net Weight: 0.145 kg
  • Output Voltage: 0.21 %, 5.25 V
  • Warranty Length: 18 mth
  • Weight: 0.145 kg
  • Width: 130 mm
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 130mm (width) x 70mm (depth) x 40.5mm (height) and weighs 0.145kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, ODVA, C-Tick, UL, it meets IEC 61131-2 2003 and FM Class 1 division 2, groups A, B, C and D T4A standards. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 130mm (width) x 70mm (depth) x 40.5mm (height) and weighs 0.145kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, ODVA, C-Tick, UL, it meets IEC 61131-2 2003 and FM Class 1 division 2, groups A, B, C and D T4A standards. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL || ODVA || C-tick || ATEX Cat 3G || CSA
    • Standards : IEC 61131-2 : 2003 || FM Class 1 division 2, groups A, B, C and D T4A with 70 °C
    • Ambient Air Temperature For Operation : 0-60 °C (without derating) || -25-70 °C (with derating factor)
    • Shock Resistance : 30 gn 11 ms IEC 88 reference 2-27
    • Vibration Resistance : 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
    • Ip Degree Of Protection : IP20 conforming to IEC 61131-2 class 1
    • Pollution Degree : 2 IEC 60664-1
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 95-95 % 60-60 °C without condensation
    • Operating Altitude : <= 6561.68 ft (2000 m)
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP080803EN
    • Packaging Without Single Use Plastic : No
    • Scip Number : f760fd97-89c1-4651-a374-9b8eff254b6a
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Height : 40.5 mm
    • Number Of Addressable I/O Module : 0-32 per island
    • Status Led : 1 LED ACT || 1 LED island state (RUN) || 1 LED module error (ERR) || 1 LED MS || 1 LED NS || 1 LED power supply (PWR) || 1 LED test mode (TEST)
    • Output Voltage : 5.25 V DC +/- 0.21 %)logic bus
    • Communication Service : SNMP agent || BootP/DHCP protocol || Modbus TCP/IP messaging || embedded web (configuration,diagnostics and access to variable)
    • Marking : CE
    • Power Supply Type : SELV
    • Input Current : 550 mA supply circuit
    • Net Weight : 0.145 kg
    • Supply Voltage Limits : 19.2-30 V
    • Maximum Supply Current : 700 A
    • Width : 130 mm
    • Overvoltage Category : II
    • Depth : 70 mm
    • [Us] Rated Supply Voltage : 24 V DC
    • Nominal Output Current : 0.575 A 60-70 °C || 1.2 A
  • Specifications
    • Country of Origin : France
    • Width : 130 mm
    • Height : 40.5 mm
    • Weight : 0.145 kg
    • Range Of Product : Modicon STB distributed I/O solution
    • Number Of Segments : 1 primary, maximum 6 extensions
    • Exchange Mode : half or full duplex
    • Transmission Rate : 10/100 Mbit/s 0-100 m per segment
    • Product Or Component Type : standard Network Interface Module
    • Structure Type : industrial LAN || Ethernet Modbus TCP/IP network
    • Integrated Connection Type : Ethernet Modbus TCP/IP IEEE 802.3 2 female RJ45 double shielded twisted pair via Ethernet network) || Ethernet Modbus TCP/IP IEEE 802.3 HE-13 RS232 port) || Ethernet Modbus TCP/IP IEEE 802.3 8-way female RS232 port)
    • Port Ethernet : 10BASE-T/100BASE-T
