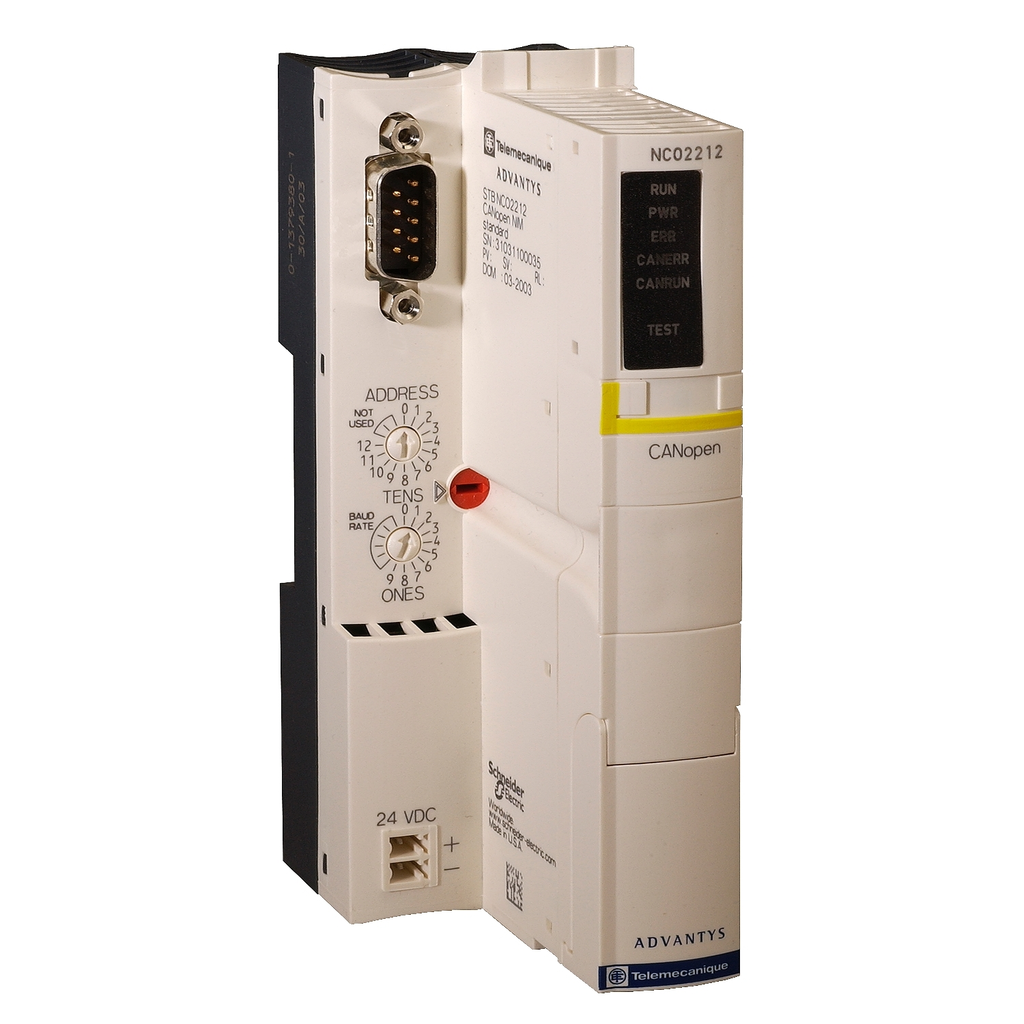

network interface module, Modicon STB, standard, CANopen bus, 1Mbps

network interface module, Modicon STB, standard, CANopen bus, 1Mbps

SQDSTBNCO2212 STBNCO2212 3595862055154
534.34 / EA
http://schema.org/OutOfStock
Mayer-DDS-network interface module, Modicon STB, standard, CANopen bus, 1Mbps-1
  • Country of Origin: France
  • Depth: 70 mm
  • Height: 40 mm
  • Net Weight: 0.135 kg
  • Output Voltage: 0.21 %, 5.25 V
  • Warranty Length: 18 mth
  • Weight: 0.135 kg
  • Width: 128.3 mm
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments and 127 slaves. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and output current of 1.2A. Communication services are service data object (SDO), network management (NMT) etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height) and weighs 0.135kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, FM Class 1 Division 2, C-Tick and UL. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments and 127 slaves. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and output current of 1.2A. Communication services are service data object (SDO), network management (NMT) etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height) and weighs 0.135kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, FM Class 1 Division 2, C-Tick and UL. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : ATEX Cat 3G || FM Class 1 Division 2 || CSA || UL || C-tick
    • Ambient Air Temperature For Operation : 0-60 °C (without derating) || -25-70 °C (with derating factor)
    • Electromagnetic Compatibility : immunity to electromagnetic interference IEC 61131-2
    • Shock Resistance : 30 gn 11 ms IEC 88 reference 2-27
    • Vibration Resistance : 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
    • Ip Degree Of Protection : IP20 conforming to IEC 61131-2 class 1
    • Pollution Degree : 2 IEC 60664-1
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 95-95 % 60-60 °C without condensation
    • Operating Altitude : <= 6561.68 ft (2000 m)
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP080803EN
    • Packaging Without Single Use Plastic : No
    • Scip Number : f760fd97-89c1-4651-a374-9b8eff254b6a
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Height : 40 mm
    • Number Of Addressable I/O Module : 0-32 per island
    • Status Led : 1 LED (Green) CAN RUN || 1 LED (Green) island state (RUN) || 1 LED (Green) power supply (PWR) || 1 LED (Red) CAN ERR || 1 LED (Red) module error (ERR) || 1 LED (Yellow) test mode
    • Output Voltage : 5.25 V DC +/- 0.21 %)logic bus
    • Communication Service : Service Data Object (SDO) || Network management (NMT) || Process Data Object (PDO)
    • Marking : CE
    • Power Supply Type : SELV
    • Input Current : 430 mA supply circuit
    • Net Weight : 0.135 kg
    • Supply Voltage Limits : 19.2-30 V
    • Maximum Supply Current : 700 A
    • Width : 128.3 mm
    • Overvoltage Category : II
    • Depth : 70 mm
    • [Us] Rated Supply Voltage : 24 V DC
    • Nominal Output Current : 0.575 A 60-70 °C || 1.2 A
  • Specifications
    • Country of Origin : France
    • Width : 128.3 mm
    • Height : 40 mm
    • Weight : 0.135 kg
    • Range Of Product : Modicon STB distributed I/O solution
    • Number Of Segments : 1 primary, maximum 6 extensions
    • Transmission Rate : 1 Mbit/s 30-30 m || 10 kbit/s 5000-5000 m
    • Product Or Component Type : standard Network Interface Module
    • Structure Type : CAN field bus
    • Number Of Server Device(S) : 127
    • Integrated Connection Type : CANopen bus CIA DS-301 9-way male SUB-D connector double shielded twisted pair bus) || CANopen bus CIA DS-301 HE-13 RS232 port) || CANopen bus CIA DS-301 8-way female RS232 port)
