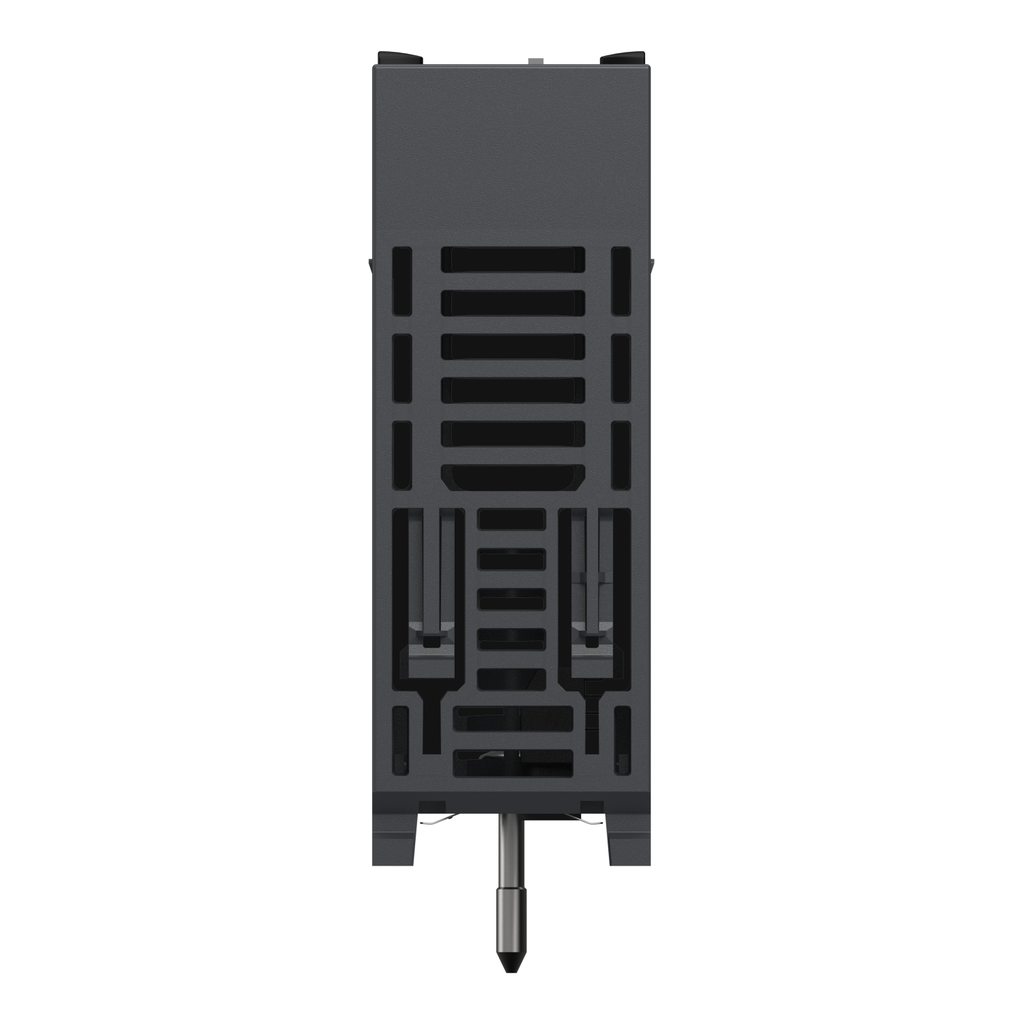

communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode

BUS MODULE 2 RS485/232 PORTS

SQDBMXNOM0200 BMXNOM0200 3595864024431
1318.02 / EA
http://schema.org/OutOfStock
Mayer-DDS-communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode-2
  • Country of Origin: France
  • IsSustainable: Yes
  • Net Weight: 0.23 kg
  • Warranty Length: 18 mth
  • Weight: 0.23 kg
This serial link module is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This module has 2 RS-485/232 ports in Modbus and character mode. It is an RTU module with a current consumption of 80mA at 24V DC, work with internal power supply. This product is robust, high quality and based on the latest innovative technology. Integrated connections are RS232 RJ45 115.2kbps and RS485 RJ45 57.6kbps. It is an IP20 rated product. It weighs 0.23kg. It is suitable for medium to large process applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).
QTY
  • Product Description
  • Features
  • Specifications
This serial link module is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This module has 2 RS-485/232 ports in Modbus and character mode. It is an RTU module with a current consumption of 80mA at 24V DC, work with internal power supply. This product is robust, high quality and based on the latest innovative technology. Integrated connections are RS232 RJ45 115.2kbps and RS485 RJ45 57.6kbps. It is an IP20 rated product. It weighs 0.23kg. It is suitable for medium to large process applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Ambient Air Temperature For Operation : 0-60 °C
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
    • Relative Humidity : 10-95 % without condensation
    • Ip Degree Of Protection : IP20
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2402021EN
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2402021EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 85.6203636364
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 14.779734375
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0.1 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 101 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.349234375
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 100.8640931754
  • Complementary
    • Supply : internal power supply via rack
    • Current Consumption : 80 mA 24 V DC
    • Marking : CE
    • Net Weight : 0.23 kg
    • Local Signalling : 1 LED (red) for module fault (ERR) || 1 LED (green) for module running (RUN) || 1 LED (green) for activity on the serial link (SER COM 0) || 1 LED (green) for activity on the serial link (SER COM 1)
    • Module Format : standard
  • Specifications
    • Country of Origin : France
    • Weight : 0.23 kg
    • Range Of Product : Modicon X80
    • Product Or Component Type : serial links module
    • Integrated Connection Type : RS232 RJ45 115.2 kbit/s 8 wires || RS485 RJ45 57.6 kbit/s 1 twisted pair
    • Protective Treatment : TC
    • Concept : Serial link
