Controller system, Modicon TM5, Safe logic CPU plus, SERCOS 3 interface, 80 nodes

SLC 200 SERCOS III 100 Nodes

SQDTM5CSLC200FS TM5CSLC200FS 3595864127996
1815.81 / EA
http://schema.org/OutOfStock

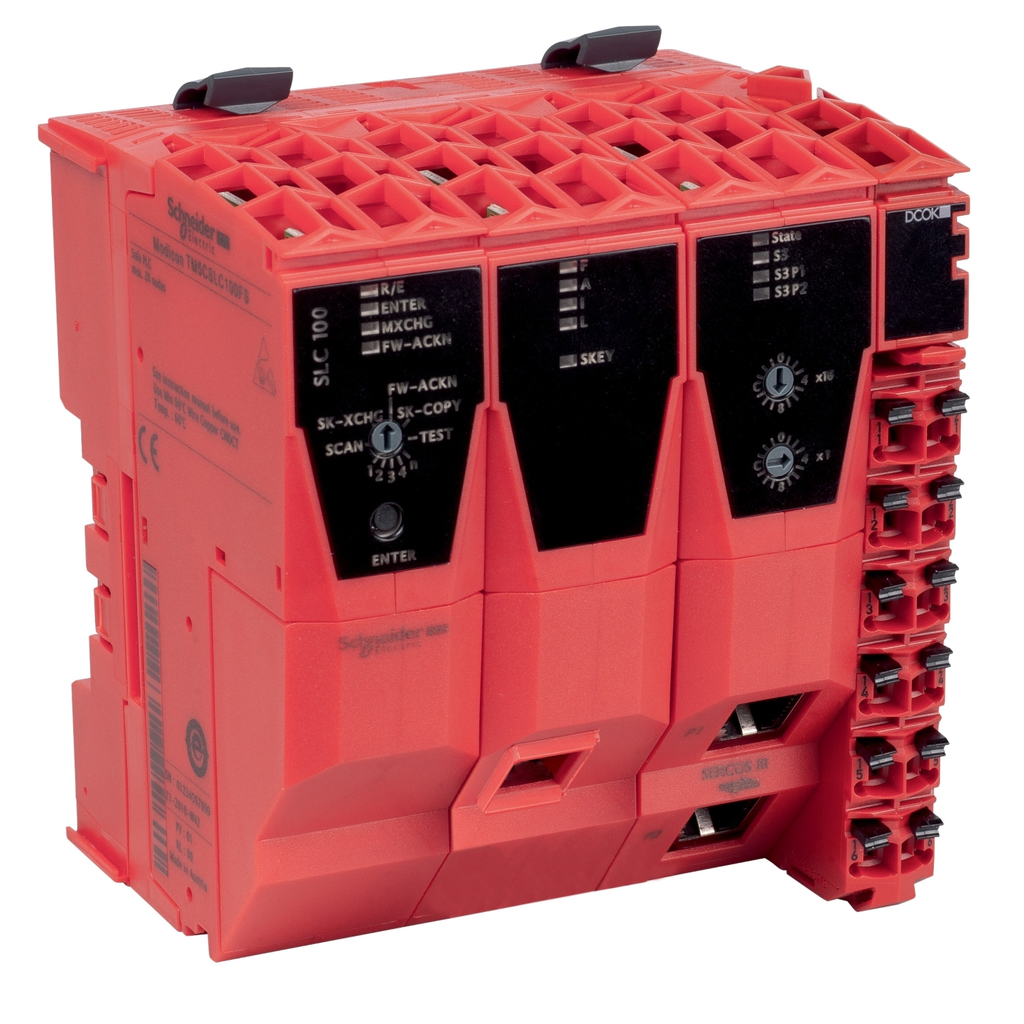

Mayer-DDS-Controller system, Modicon TM5, Safe logic CPU plus, SERCOS 3 interface, 80 nodes-1
  • Depth: 75 mm
  • Warranty Length: 18 mth
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This safe logic controller has Intel Xscale 266MHz processor with reverse polarity protection, and a 24 V DC power supply. The controller has integrated fuse (not interchangeable) input protection with fanless cooling. It offers SERCOS 3 (Ethernet) communication network with 100Mbps data transmission rate for the full duplex bus length, with 2 integrated shielded RJ45 ports. It supports maximum 100 safety nodes with 2 internal switches. It reaches Category 4 of safety level conforming to EN ISO 13849, and SIL 3 safety integrity level according to IEC 62061. It is an IP20 rated product. The housing colour is red. Its dimensions are 87.5mm (width) x 75mm (depth) x 99mm (height). It weighs 0.29kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with motion controller, communicating on Sercos 3 fieldbus. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001986_3D-CAD
  • Communications & Management Attributes
    • Communication Network Type : SERCOS III Ethernet)
  • Physical Attributes
    • Color : Red
  • Conformance Attributes
    • Product Certifications : cULus, GOST-R
    • Standards : IEC 62061, EN 13849-1, IEC 61508, IEC 61131-2, IEC 61511
  • Complementary Attributes
    • Maximum Cable Distance Between Devices : 100 m between station
    • Rated Voltage : 24-24 V -15...20 %
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Function Available : support of 32 machine options, with 2 internal switch, support max 100 safety nodes
    • Local Signalling : 1 LED (green or orange) for application run or SoSafe debug mode, 1 LED (green) for authorization status, 1 LED (orange) for configuration status (Ready), 1 LED (orange) for firmware status, 4 LEDs (red) for boot status, 1 LED (orange) for memory key status
    • Number Of Devices : 2 shielded RJ45, 1 memory key slot
    • Safety Level : SIL 3 IEC 61508, SIL 3 IEC 62061, PL = e EN 13849-1
    • Safety Reliability Data : PFD < 1E-5, PFH < 1E-9, MTTFd > 100 years
    • Carbon Footprint Of The Distribution Phase A4 : 0.0663173554, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.3192711501
    • Carbon Footprint Of The Installation Phase A5 : 0.1327148668, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 31 kg CO2 eq., 30.9034567901
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 219 kg CO2 eq., 218.8848837209
    • Medium Desc : Controller system, Modicon TM5, Safe logic CPU plus, SERCOS 3 interface, 80 nodes
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : End of commerc. announced
    • Return Indicator : Y
    • Stocking Flag : N
    • Device Type : PLC System - PLC CPU
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2203008EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Cycle Time : 1 ms
    • Device Application : safety logic controller
    • Marking : CE
    • Power Consumption In W : 5.1 W
    • Processor Name : Intel Xscale 266 MHz
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : controller system
    • Range Of Product : Modicon TM5
    • Realtime Clock : with non-volatile memory
    • Returnability : Yes
    • Reverse Polarity Protection : yes
    • Software Version : EIME v5.9.3
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 250 kg CO2 eq.
    • Transmission Rate : 100 Mbit/s for full duplex
    • Type Of Cooling : fanless
    • Pep Code : ENVPEP2203008EN
    • Database Version : 2020-12
    • Pep Verification Date : 2022-08-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : To manage the safety-related application over the Sercos network 100% of the time with a power use of 4,3W.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Austria
    • Energy Model Installation A5 2 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model Use B6 2 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 2 : Electricity mix; AC; < 1kV; EU-27
    • Height Nominal : 99 mm
    • Width Nominal : 87.5 mm
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : 0-45 °C vertical installation), 0-55 °C horizontal installation)
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 250.3066438834
    • Ambient Air Temperature For Storage : -25-70 °C
    • Circularity Profile : ENVEOLI2203008EN
    • Environmental Disclosure : ENVPEP2203008EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % without condensation
    • Pep Code : ENVPEP2203008EN
    • Pep Verification Date : 2022-08-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : controller system
    • Range Of Product : Modicon TM5
  • ETIM
    • ETIM 8 : EC000236
    • ETIM 9 : EC000236
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Input Protection Type : integrated fuse (not interchangeable)
  • Specifications
    • Depth : 75 mm
