communication module, Modicon TM5, fieldbus interface, Sercos 3

SERCOS III FIELD BUS INTERFACE

SQDTM5NS31 TM5NS31 3595864109091
456.52 / EA
http://schema.org/OutOfStock

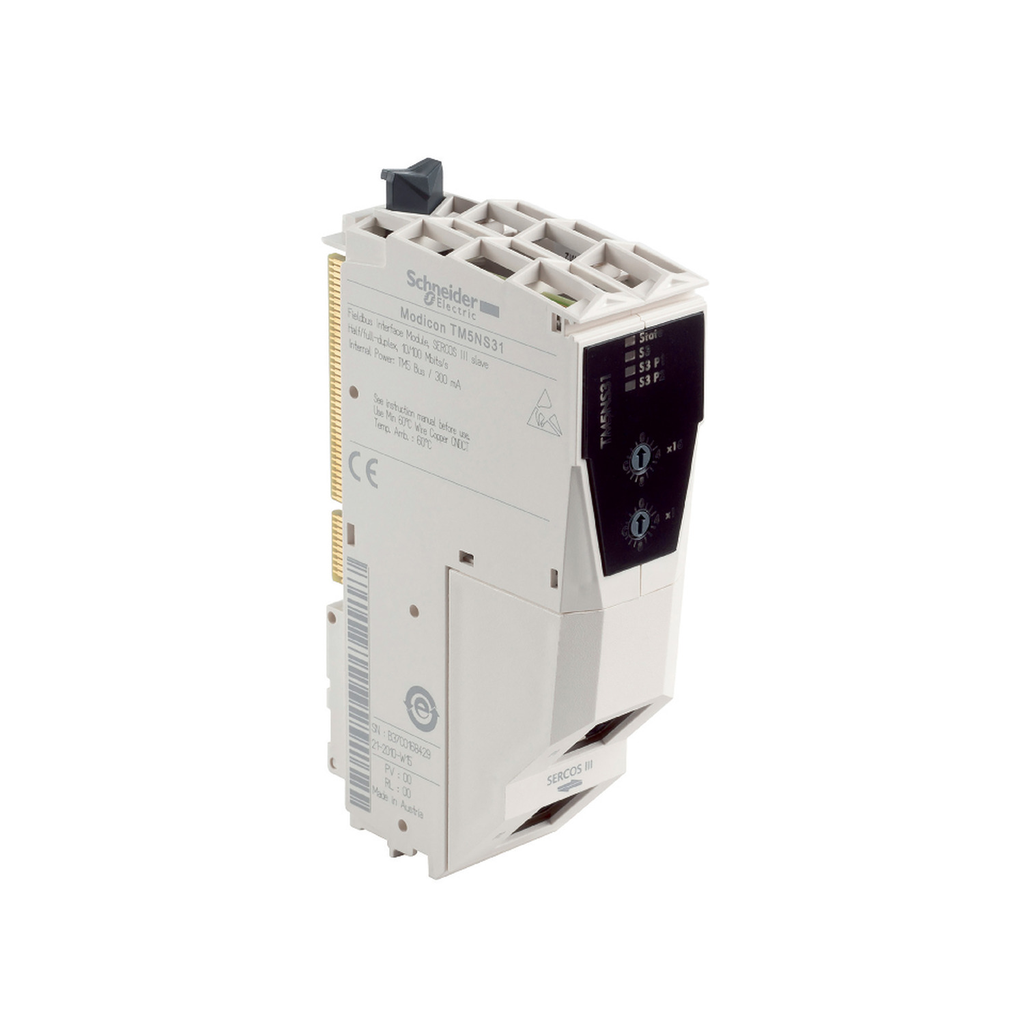

Mayer-DDS-communication module, Modicon TM5, fieldbus interface, Sercos 3-1
  • Country of Origin: USA
  • Net Weight: 0.03 kg
  • Warranty Length: 18 mth
  • Weight: 0.03 kg
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a bus coupler designed for creating distributed IO islands on Sercos 3 fieldbus, for exchanging data between controllers and distributed IO. The Sercos 3 communication protocol is the client/server type with Request/response. This is a bus coupler module designed for creating distributed IO islands on SERCOS 3 fieldbus. This bus coupler works with an electronic power distribution module, a bus base and a terminal block. It has 2 parallel RJ45 connectors, RS 485 with a 1,2 to 38,4kBaud data transmission rate. It weighs 0.080kg. It measures 25mm wide, 99mm high, 75mm deep. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with PacDrive LMC Eco/Pro2 motion controllers, and the Modicon M262 logic/motion controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a bus coupler designed for creating distributed IO islands on Sercos 3 fieldbus, for exchanging data between controllers and distributed IO. The Sercos 3 communication protocol is the client/server type with Request/response. This is a bus coupler module designed for creating distributed IO islands on SERCOS 3 fieldbus. This bus coupler works with an electronic power distribution module, a bus base and a terminal block. It has 2 parallel RJ45 connectors, RS 485 with a 1,2 to 38,4kBaud data transmission rate. It weighs 0.080kg. It measures 25mm wide, 99mm high, 75mm deep. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with PacDrive LMC Eco/Pro2 motion controllers, and the Modicon M262 logic/motion controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Resistance To Electromagnetic Fields : 1 V/m 2...2.7 GHz IEC 61000-4-3 || 10 V/m 80 MHz...2 GHz IEC 61000-4-3
    • Disturbance Radiated/Conducted : CISPR 11
    • Electromagnetic Compatibility : EN/IEC 61000-4-6
    • Surge Withstand : 0.5 kV differential mode IEC 61000-4-5 || 1 kV common mode IEC 61000-4-5
    • Resistance To Electrostatic Discharge : 4 kV on contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2
    • Resistance To Fast Transients : 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 shielded cable) || 2 kV IEC 61000-4-4 power lines)
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Environmental Disclosure : ENVPEP1511025EN
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI1511025EN
    • Take-Back : No
    • Pvc Free : Yes
  • Complementary
    • Net Weight : 0.03 kg
    • Current Consumption : 350 mA 5 V DC, base
    • Device Composition : interface module || bus base ordered separately || power supply ordered separately || terminal block ordered separately
    • Integrated Connection Type : Ethernet/IP, 2 RJ45 connectors Sercos, 100 Mbit/s
    • Maximum Power Dissipation In W : 1.75 W
    • Color : White
    • Local Signalling : 1 LED green/red STAT || 1 LED green/red Sercos III || 1 LED green Sercos III port 1 || 1 LED green Sercos III port 2
    • Range Compatibility : Modicon LMC078
    • Product Compatibility : motion controller
  • Specifications
    • Country of Origin : United States
    • Weight : 0.03 kg
    • Range Of Product : Modicon TM5
    • Product Or Component Type : Sercos III communication module
    • Physical Interface : RJ45
