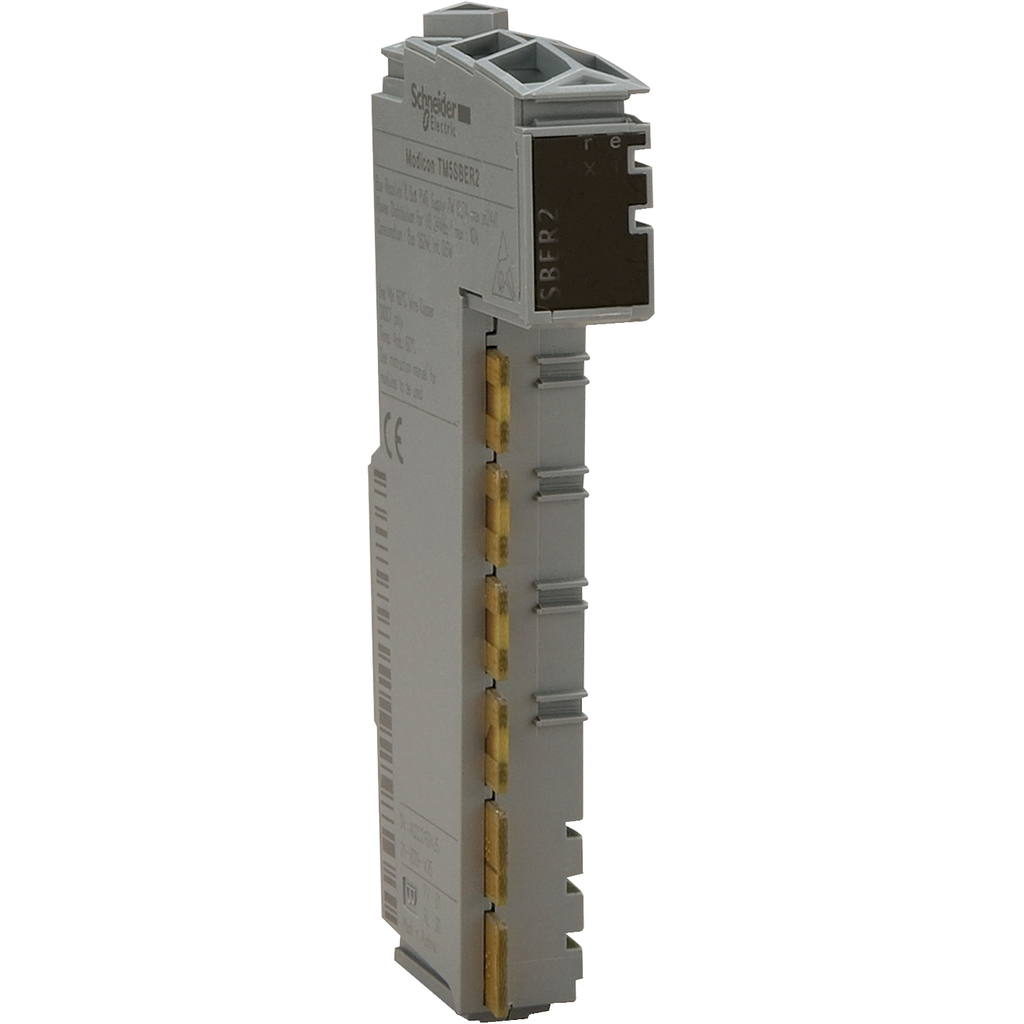

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The remote receiver module provides communication between remote I/O and distribute power. It is a remote receiver module with a current consumption of 2

• Product Specific Application
• communication between remote I/O
• distribute power to TM5 bus and I/O
• Current Consumption
• 25 mA 24 V DC input/output
• Range Compatibility
• Modicon M258
• Modicon LMC058
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Standards
• CSA C22.2 No 142
• CSA C22.2 No 213
• IEC 61131-2
• UL 508
• Ip Degree Of Protection
• IP20IEC 61131-2
• IP67
• Accessories
• TCSXCNNXNX100
• TM5ACBM01R
• TM5ACBM05R
• TM5ACTB12PS
• Vibration Resistance
• 1 gn 8.4-150 Hz DIN rail
• 3.5 mm 5-8.4 Hz DIN rail
• Persona Type Names
• End User
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Resistance To Fast Transients
• 1 kV IEC 61000-4-4 I/O)
• 1 kV IEC 61000-4-4 shielded cable)
• 2 kV IEC 61000-4-4 power lines)
• 2 kV IEC 6100
• Relative Humidity
• 5-95 % without condensation
• Persona Type Ids
• EU
• OM
• OM8
• Surge Withstand
• 0.5 kV differential mode IEC 61000-4-5
• 1 kV common mode IEC 61000-4-5
• Auxiliaries
• TM5ACTCH100
• TM5ACTLC100
• Resistance To Electrostatic Discharge
• 4 kV on contact IEC 61000-4-2
• 8 kV in air IEC 61000-4-2
• Resistance To Electromagnetic Fields
• 1 V/m 2...2.7 GHz IEC 61000-4-3
• 10 V/m 80...2000 MHz IEC 61000-4-3
• Shock Resistance
• 15 gn 11 ms
• Product Compatibility
• logic controller
• motion controller
• Local Signalling
• 1 LED green power supply
• 1 LED red power bus current
• 1 LED red power supply
• 1 LED yellow communication
• Ambient Air Temperature For Operation
• 0-50 °C vertical installation)
• 0-55 °C without derating horizontal installation)
• 0-60 °C with derating factor horizontal in
• Product Certifications
• CSA
• cULus
• C-tick
• GOST-R

• Physical Attributes
• Bus Length : 2500 m
• Color : Gray
• Complementary Attributes
• Maximum Cable Distance Between Devices : 100 m
• Maximum Power Dissipation In W : 2.22 W
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2024-01-12
• ETIM 10 : EC001604
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1511026EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1901
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Disturbance Radiated Conducted : CISPR 11
• Electromagnetic Compatibility : EN/IEC 61000-4-6
• Marking : CE
• Package Weight Lbs : 59.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : remote receiver module
• Range Of Product : Modicon TM5
• Returnability : No
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : remote receiver module
• Range Of Product : Modicon TM5
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=61697789&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Storage : -25-70 °C
• Circularity Profile : ENVEOLI1511026EN
• Environmental Disclosure : ENVPEP1511026EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Operating Altitude : 0...6561.68 ft (0...2000 m)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Storage Altitude : 0-3000 m
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Austria
