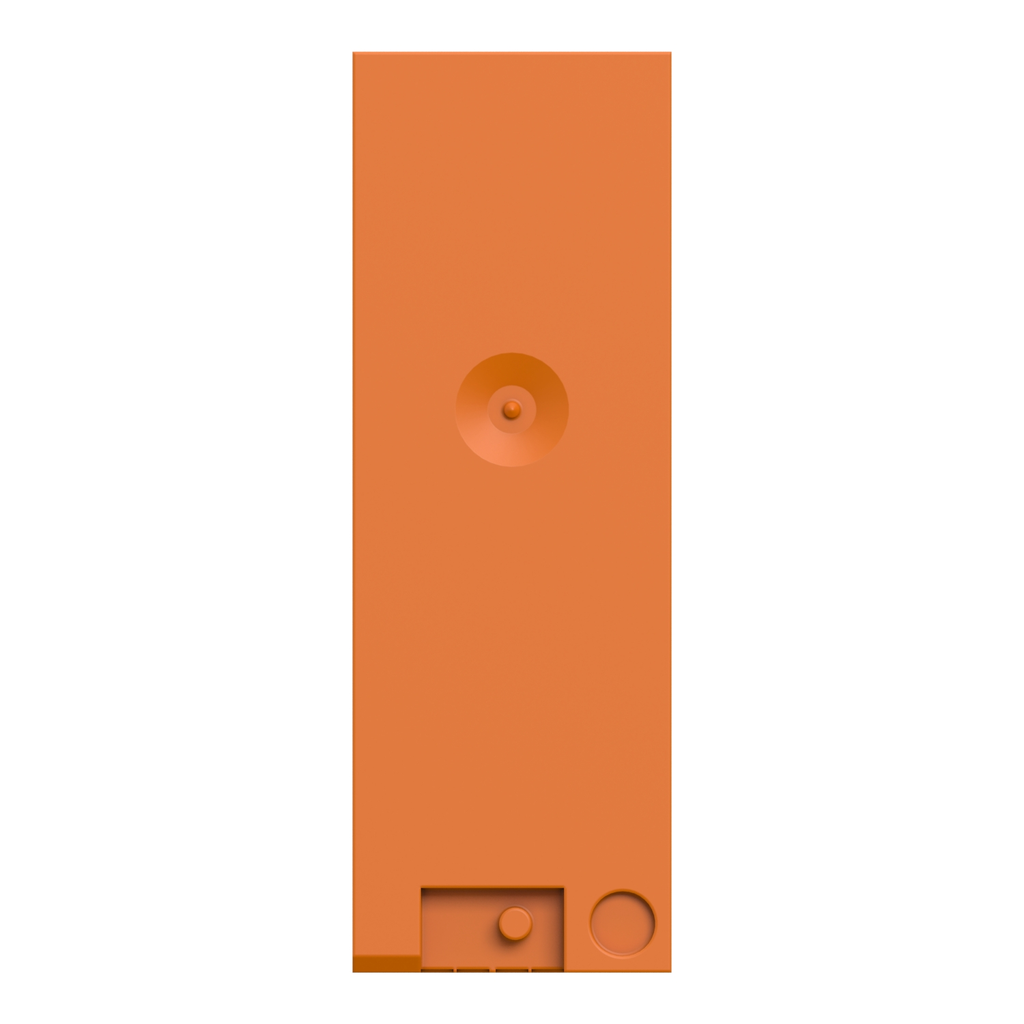

plug-in electromechanical relay - 10 mm - 24 V DC - 1 NO

ELECTROMECHANICAL RELAY- STD.

SQDABR7S21 ABR7S21 3389110644739
29.08 / EA
http://schema.org/OutOfStock
Mayer-DDS-plug-in electromechanical relay - 10 mm - 24 V DC - 1 NO-1
  • Dielectric Strength: 2000 V
  • Warranty Length: 18 mth
This product is part of the Modicon ABE7 range, an offer of plug-in electromechanical relays. The plug-in power relay has 1 NO contact with 5A conventional free air thermal current. It is an electromechanical relay with a control circuit voltage of 24V. It offers electrical durability of about 5,00,000 cycles and mechanical durability of about 20 million cycles. The width of this product is 10mm. It weighs 0.008kg. It is suitable for all types of industrial applications. It is compatible with ABE7P16T212, ABE7P16T214, ABE7P16T210, ABE7P16T230E, ABE7R16T210, ABE7R16T212, ABE7P16T215 and ABE7P16T230. It is sold in a set of 4. The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon ABE7 range, an offer of plug-in electromechanical relays. The plug-in power relay has 1 NO contact with 5A conventional free air thermal current. It is an electromechanical relay with a control circuit voltage of 24V. It offers electrical durability of about 5,00,000 cycles and mechanical durability of about 20 million cycles. The width of this product is 10mm. It weighs 0.008kg. It is suitable for all types of industrial applications. It is compatible with ABE7P16T212, ABE7P16T214, ABE7P16T210, ABE7P16T230E, ABE7R16T210, ABE7R16T212, ABE7P16T215 and ABE7P16T230. It is sold in a set of 4. The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=ABR7S21_3D-simpl&p_File_name=ABR7S21_3D-Simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=ABR7S21_3D-simpl&p_File_name=ABR7S21_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ABR7S21_3D-simpl&p_File_name=ABR7S21_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=ABR7S21_3D-simpl&p_File_name=ABR7S21_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ABR7S21_3D-simpl&p_File_name=ABR7S21_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=ABR7S21_3D-simpl&p_File_name=ABR7S21_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ABR7S21_3D-simpl&p_File_name=ABR7S21_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=ABR7S21_3D-simpl&p_File_name=ABR7S21_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ABR7S21_3D-simpl&p_File_name=ABR7S21_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=ABR7S21_3D-simpl&p_File_name=ABR7S21_2D-rear.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ABR7S21_3D-simpl&p_File_name=ABR7S21_2D-rear.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=ABR7S21_3D-simpl&p_File_name=ABR7S21_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ABR7S21_3D-simpl&p_File_name=ABR7S21_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=ABR7S21_3D-simpl&p_File_name=ABR7S21_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ABR7S21_3D-simpl&p_File_name=ABR7S21_2D-top.dxf
  • Complementary Attributes
    • Maximum Switching Voltage : 130 V DC IEC 60947-5-1, 250 V AC 50/60 Hz IEC 60947-5-1
    • Control Circuit Type : DC
    • Maximum Power Dissipation Per Pole : 0.36 W
    • Minimum Switching Current : 10 mA >= 5 V
    • Uc Control Circuit Voltage : 24 V
    • Uimp Rated Impulse Withstand Voltage : 2.5 kV IEC 60947-1
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Electrical Durability : 500000 cycles 1500 mA 230 V AC-12, 500000 cycles 1500 mA 24 V DC-12, 500000 cycles 600 mA 24 V DC-13 10 ms, 500000 cycles 900 mA 230 V AC-15
    • Operating Rate In Hz : 10 Hz no load, 0.5 Hz at Ie
    • Medium Desc : plug-in electromechanical relay - 10 mm - 24 V DC - 1 NO
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Html Descr : Advantys Telefast ABE7 Electromechanical RelayControl Circuit Voltage: 24VConventional Free Air Thermal Current: 5AContacts Type and Composition: 1 NO
    • Return Indicator : Y
    • Stocking Flag : Y
    • Manufacturer : Schneider Electric
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Associated Fuse Rating : 1 A, fast blow
    • Contacts Type And Composition : 1 NO
    • Dielectric Strength : 2000 V IEC 60947-1
    • Drop Out Current : 1 mA 20 °C
    • Drop Out Voltage : 2.4 V 20 °C
    • Max Immunity To Microbreaks : 5 ms
    • Mechanical Durability : 20000000 cycles
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : plug-in electromechanical relay
    • Quantity Per Set : set of 4
    • Range Of Product : Advantys Telefast ABE7
    • Returnability : Yes
    • Sustainable Packaging : No
    • Threshold Tripping Voltage : 19.7 V 40 °C
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Width Pitch Dimension : 10 mm
    • Ith Conventional Free Air Thermal Current : 5 A
    • Width Nominal : 10 mm
  • Environment Attributes Main
    • Product Compatibility : ABE7P16T212, ABE7P16T214, ABE7P16T210, ABE7P16T230E, ABE7R16T210, ABE7R16T212, ABE7P16T215, ABE7P16T230
    • Take Back : Nej
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : plug-in electromechanical relay
    • Range Of Product : Advantys Telefast ABE7
  • ETIM
    • ETIM 8 : EC001652
    • ETIM 9 : EC001652
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
