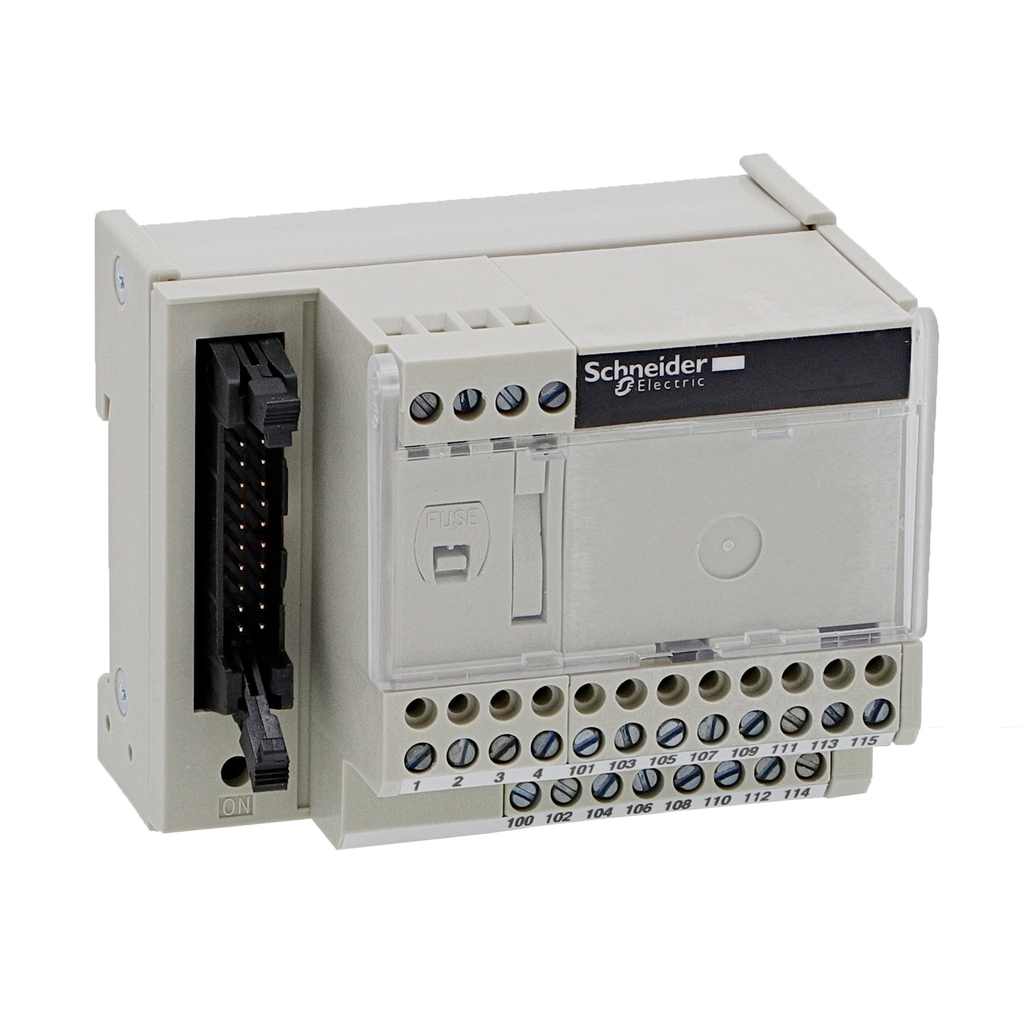

passive connection sub-base ABE7 - 16 inputs or outputs

TELEFAST 2 MOD-16 CHAN-I/O DIS

SQDABE7H16R50 ABE7H16R50 3389110544992
234.62 / EA
http://schema.org/OutOfStock
Mayer-DDS-passive connection sub-base ABE7 - 16 inputs or outputs-1
  • Connection Type: HE-10
  • Country of Origin: Latvia
  • Net Weight: 0.196 kg
  • Warranty Length: 18 mth
  • Weight: 0.196 kg
  • Width: 84 mm
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a passive connection sub-base for 16 channels as digital I/O, with 1 terminal per channel. Its control circuit voltage is 24VDC. It provides a digital I/O control function. It is furnished with screw terminals for electrical connection and 20-way HE10 connection to programmable logic controllers. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver. It is a universal sub-base with IP20 degree of protection. It weighs 0.196kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. This product is certified by DNV, CSA, UL, GL and EAC. It is suitable for use with TSX Micro and Premium PLCs, and numerical controllers. It is delivered in 1 package (PCE type). Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a passive connection sub-base for 16 channels as digital I/O, with 1 terminal per channel. Its control circuit voltage is 24VDC. It provides a digital I/O control function. It is furnished with screw terminals for electrical connection and 20-way HE10 connection to programmable logic controllers. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver. It is a universal sub-base with IP20 degree of protection. It weighs 0.196kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. This product is certified by DNV, CSA, UL, GL and EAC. It is suitable for use with TSX Micro and Premium PLCs, and numerical controllers. It is delivered in 1 package (PCE type). Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : DNV || UL || CSA || GL || EAC
    • Resistance To Radiated Fields : 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
    • Ambient Air Temperature For Operation : -5-60 °C IEC 61131-2
    • Shock Resistance : 15 gn 11 ms IEC 60068-2-27
    • Vibration Resistance : 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
    • Ip Degree Of Protection : IP2X conforming to IEC 60529
    • Pollution Degree : 2 IEC 60664-1
    • Resistance To Incandescent Wire : 750 °C IEC 60695-2-11
    • Ambient Air Temperature For Storage : -40-80 °C IEC 61131-2
    • Resistance To Electrostatic Discharge : 4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
    • Resistance To Fast Transients : 2 kV level 3 IEC 61000-4-4
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121229EN
    • Packaging Without Single Use Plastic : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Scip Number : 1bbe7d20-74c0-4e7e-b98b-d2946f4ab8b4
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI1212029EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 1034.4
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 1.9189315213
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 1 036 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.0559412847
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 1036.4056049159
  • Complementary
    • Pin Number : 20 pins
    • Short-Circuit Protection : 2 A internal fuse, 5 x 20 mm, fast blow PLC end)
    • Number Of Horizontal Rows : 2
    • Current Per Channel : 0.5 A
    • Status Led : 1 LED (Green) power ON
    • Installation Category : II IEC 60664-1
    • Maximum Current Per Output Common : 1.8 A
    • [Ui] Rated Insulation Voltage : 2000 V
    • Net Weight : 0.196 kg
    • Fixing Mode : by clips (35 mm symmetrical DIN rail) || by screws (solid plate with fixing kit)
    • Connector Type : HE-10
    • Polarity Distribution : no
    • Tightening Torque : 0.6 N.m flat Ø 3.5 mm
    • Maximum Supply Current : 1.8 A
    • Supply Circuit Type : DC
    • Width : 84 mm
    • Voltage Drop On Power Supply Fuse : 0.3 V
  • Specifications
    • Country of Origin : Latvia
    • Width : 84 mm
    • Weight : 0.196 kg
    • Range Of Product : Modicon ABE7
    • Product Or Component Type : passive discrete I/O sub-base
    • Number Of Terminal Per Channel : 1
    • Connections - Terminals : screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
    • Number Of Channels : 16
    • Sub-Base Type : I/O sub-base
    • [Us] Rated Supply Voltage : 19...30 V IEC 61131-2
