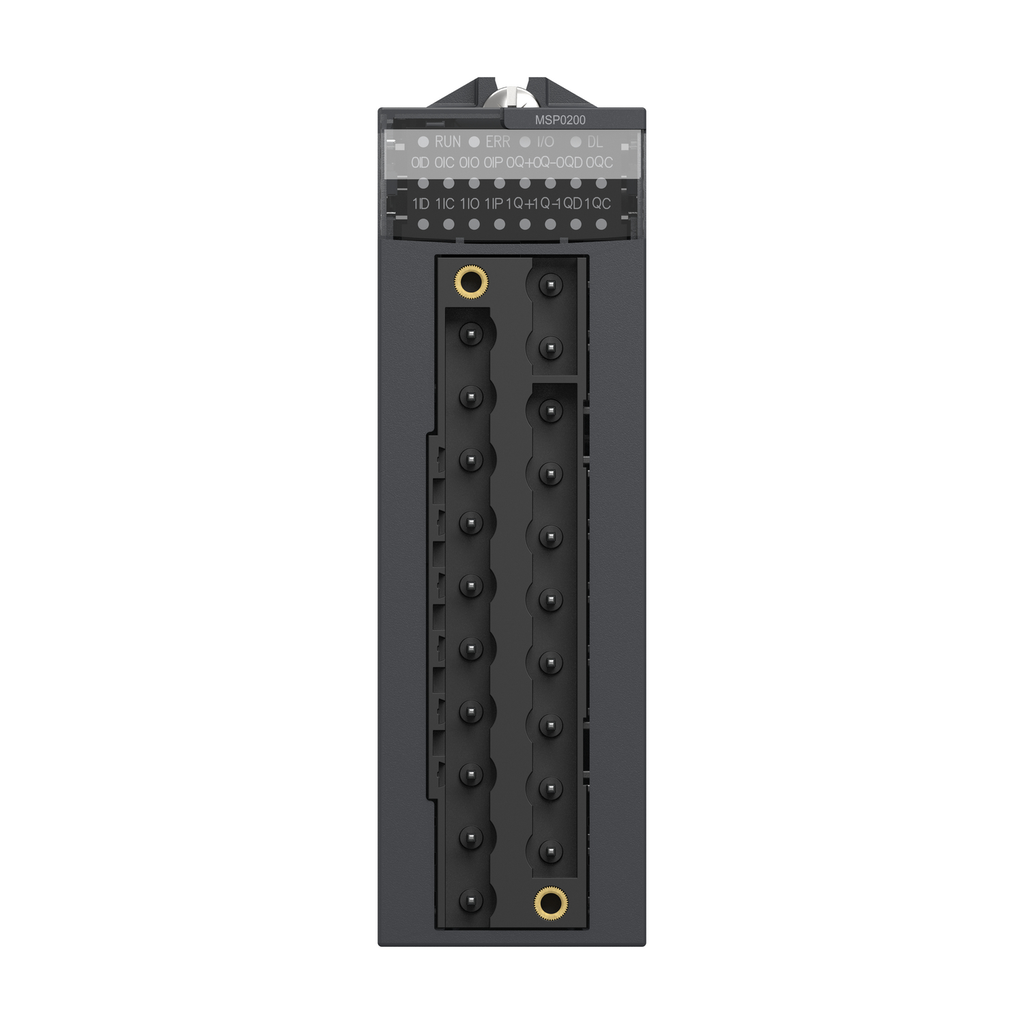

PTO module, Modicon X80, 2 channels, 4 I, 24V DC, 4.3mA, 2 connectors, 28 pins

PTO MODULE 2 CH

SQDBMXMSP0200 BMXMSP0200 3595863998634
1708.55 / EA
http://schema.org/OutOfStock
Mayer-DDS-PTO module, Modicon X80, 2 channels, 4 I, 24V DC, 4.3mA, 2 connectors, 28 pins-1
  • Input Voltage: 24 V
  • Number of Outputs: 1 Pulse Output, 2 Auxiliary Output
  • Output Voltage: 24 V
  • Warranty Length: 18 mth
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This PTO module has 2 channels, 4 inputs with sink (positive) discrete logic. It is a PTO module with an input/output voltage 24V DC, an output current of 50mA and a maximum current consumption of 200mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with two 28-way connectors for electrical connection. There is no insulation between channels. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This output compatible with signal converter (USIC), RS422, 7mA input and source input, 5V to 24V. Input compatible with 2-wire/3-wire proximity sensor 19.2V to 30V conforming to IEC 947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This PTO module has 2 channels, 4 inputs with sink (positive) discrete logic. It is a PTO module with an input/output voltage 24V DC, an output current of 50mA and a maximum current consumption of 200mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with two 28-way connectors for electrical connection. There is no insulation between channels. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This output compatible with signal converter (USIC), RS422, 7mA input and source input, 5V to 24V. Input compatible with 2-wire/3-wire proximity sensor 19.2V to 30V conforming to IEC 947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=BMXMSP0200_3D-simpl&p_File_name=BMXMSP0200_3D-Simpl.stp, https://download.schneider-electric.com/files?p_Doc_Ref=BMXMSP0200_3D-simpl&p_File_name=BMXMSP0200_2D-BACK.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXMSP0200_3D-simpl&p_File_name=BMXMSP0200_2d-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXMSP0200_3D-simpl&p_File_name=BMXMSP0200_2D-BOTTOM.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXMSP0200_3D-simpl&p_File_name=BMXMSP0200_2d-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXMSP0200_3D-simpl&p_File_name=BMXMSP0200_2D-FRONT.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXMSP0200_3D-simpl&p_File_name=BMXMSP0200_2d-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXMSP0200_3D-simpl&p_File_name=BMXMSP0200_2D-isom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXMSP0200_3D-simpl&p_File_name=BMXMSP0200_2d-isom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXMSP0200_3D-simpl&p_File_name=BMXMSP0200_2D-LEFT.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXMSP0200_3D-simpl&p_File_name=BMXMSP0200_2d-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXMSP0200_3D-simpl&p_File_name=BMXMSP0200_2D-RIGHT.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXMSP0200_3D-simpl&p_File_name=BMXMSP0200_2d-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXMSP0200_3D-simpl&p_File_name=BMXMSP0200_2D-TOP.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXMSP0200_3D-simpl&p_File_name=BMXMSP0200_2d-top.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXMSP0200_CAD&p_File_name=BMXMSP0200_3D.stp, https://download.schneider-electric.com/files?p_Doc_Ref=BMXMSP0200_CAD&p_File_name=BMXMSP0200_2D Front View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXMSP0200_CAD&p_File_name=BMXMSP0200_2D Front View.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXMSP0200_CAD&p_File_name=BMXMSP0200_2D Right Side View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXMSP0200_CAD&p_File_name=BMXMSP0200_2D Right Side View.dxf
  • Conformance Attributes
    • Product Certifications : CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22
    • Standards : IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, IEC 61000-6-5, interface type 1 and type 2, IEC 61850-3, location G, IEC 60079-0
  • Complementary Attributes
    • Maximum Leakage Current : 0.05 mA at state 0
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Current Consumption : 35 mA 24 V DC preactuator, 150 mA 3.3 V DC typical, 200 mA 3.3 V DC maximum
    • Local Signalling : 1 LED (green) for module operating (RUN), 1 LED (red) for external fault (I/O), 1 LED (red) for internal fault, module failure (ERR), 1 LED (green) for download (DL), 8 LEDs (green) for channel status (CH00), 8 LEDs (green) for channel status (CH01)
    • Operating Threshold : > 12 V no error supply voltage, > 12 V no error supply voltage, > 8 V error supply voltage, > 8 V error supply voltage, > 12 V no error supply voltage, > 12 V no error supply voltage, > 8 V error supply voltage, > 8 V error supply voltage
    • Preactuator Voltage Detection Threshold : < 8 V error preactuator voltage auxiliary output, < 8 V error preactuator voltage auxiliary output, < 8 V error preactuator voltage auxiliary output, < 8 V no error preactuator voltage auxiliary output, < 8 V no error preactuator voltage auxiliary output, < 8 V no error preactuator voltage auxiliary output, > 14 V error preactuator voltage pulse output, > 14 V error preactuator voltage pulse output, > 14 V error preactuator voltage pulse output, > 14 V no error preactuator voltage pulse output, > 14 V no error preactuator voltage pulse output, > 14 V no error preactuator voltage pulse output, < 8 V error preactuator voltage auxiliary output, < 8 V error preactuator voltage auxiliary output, < 8 V error preactuator voltage auxiliary output, < 8 V no error preactuator voltage auxiliary output, > 14 V error preactuator voltage pulse output, > 14 V error preactuator voltage pulse output
    • Response Time : < 200 µs for position completed input and drive ready input, < 200 µs for position completed input and drive ready input, < 60 µs for origin input and proximity input, < 60 µs for origin input and proximity input, < 200 µs for position completed input and drive ready input, < 200 µs for position completed input and drive ready input, < 60 µs for origin input and proximity input, < 60 µs for origin input and proximity input
    • Reverse Polarity Protection : by reverse mounting diode on output, integrated on input
    • Carbon Footprint Of The Distribution Phase A4 : 0.0192222545, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.2608403636
    • Carbon Footprint Of The Installation Phase A5 : 0.0391429818, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 19 kg CO2 eq., 18.7821454545
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 25 kg CO2 eq., 25.4443826816
    • Medium Desc : PTO module, Modicon X80, 2 channels, 4 I, 24V DC, 4.3mA, 2 connectors, 28 pins
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-23
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2311046EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Current Per Channel : 0.4 A
    • Current State 0 Guaranteed : <= 1.5 mA
    • Current State 1 Guaranteed : >= 2 mA
    • Electrical Connection : 2 connectors 28 pins
    • Environmental Characteristic : hazardous location class I division 2
    • Insul Btwn Prim And Second : 1500 Vrms
    • Insulation Between Channels : no insulated
    • Insulation Resistance : > 10 MOhm
    • Load Impedance Ohmic : 15000 Ohm
    • Module Format : standard
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : PTO module
    • Range Of Product : Modicon X80
    • Returnability : No
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 45 kg CO2 eq.
    • Voltage State 0 Guaranteed : 5 V
    • Voltage State 1 Guaranteed : >= 11 V
    • Ures Residual Voltage : 0.15 V at state 1
    • Pep Code : ENVPEP2311046EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; FR
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
  • Environment Attributes Main
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 44.5457337361
    • Ambient Air Temperature For Operation : -25-70 °C
    • Circularity Profile : ENVEOLI2311046EN
    • Derating Factor : without
    • Environmental Disclosure : ENVPEP2311046EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2311046EN
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : PTO module
    • Range Of Product : Modicon X80
  • ETIM
    • ETIM 8 : EC001422
    • ETIM 9 : EC001422
  • Output Attributes
    • Number Of Outputs : 1 pulse output, 2 auxiliary output
    • Output Compatibility : signal converter (USIC), RS422, 7 mA input, source input, 5 V to 24 V
    • Output Frequency : 200 kHz <0.5 m with USIC and VW3M8210R05, 100 kHz <5 m with the normal source input circuit, 200 kHz <10 m with the RS422 compatible circuits
    • Response Time On Output : 1.2...1.5 ms on appearance, 1.2...1.5 ms on disappearance
    • Discrete Output Current : 50 mA
    • Output Overload Protection : by current limiter and electronic circuit breaker
    • Output Short Circuit Protection : by current limiter and electronic circuit breaker
    • Output Voltage : 24 V DC
    • Output Voltage Limits : 19...30 V
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Discrete Input Type : current sink yes origin input IEC 61131-2 type 3, current sink yes proximity input and limit switch input IEC 61131-2 type 3, current sink or source counter in position input IEC 61131-2 type 3, current sink or source drive ready, emergency input IEC 61131-2 type 3
    • Input Compatibility : 2-wire/3-wire proximity sensor 19.2-30 V IEC 947-5-2
    • Input Current : 4.3 mA
    • Input Voltage : 24 V DC
    • Number Of Inputs : 4
