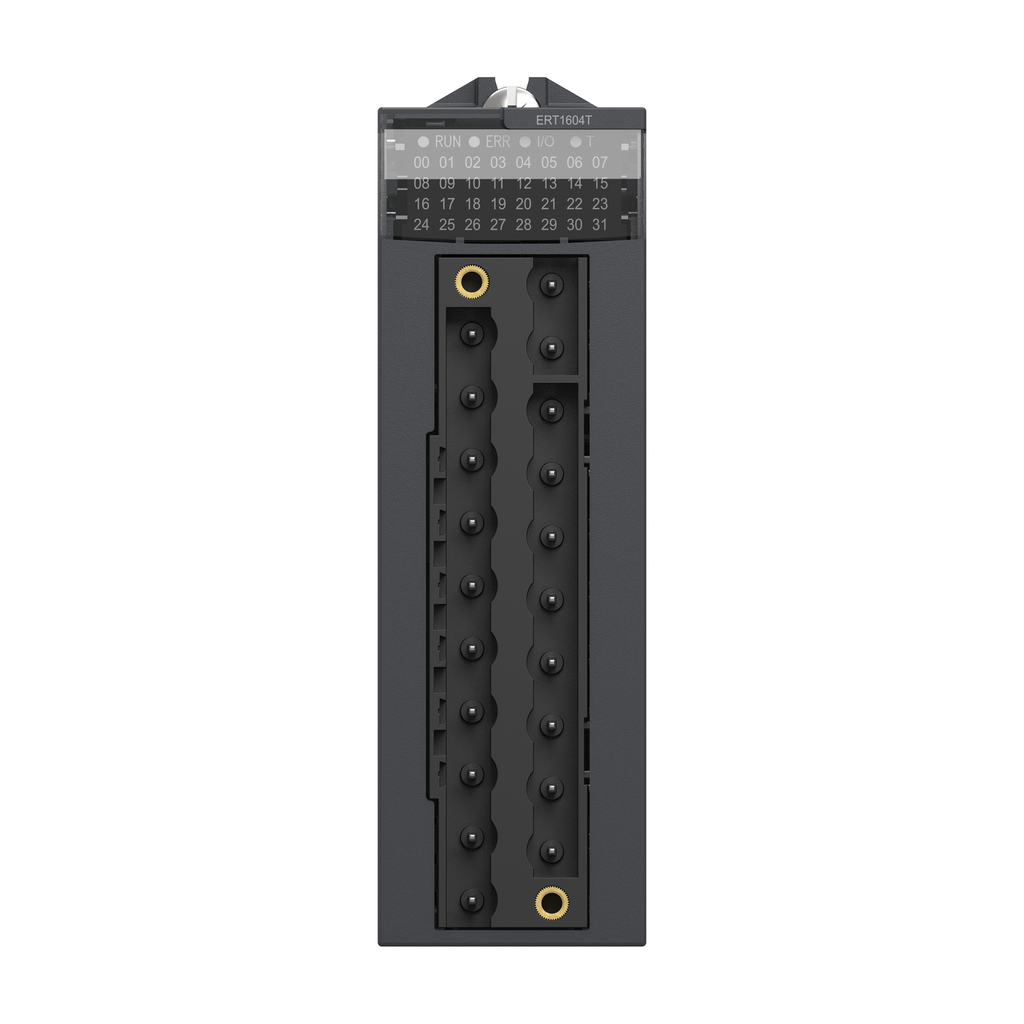

multifunction input module, Modicon X80, 16 I, 24/24-125V DC

DIG 16I 24/125VDC TSTAMP

SQDBMXERT1604T BMXERT1604T 3595864146232
943.77 / EA
http://schema.org/OutOfStock
Mayer-DDS-multifunction input module, Modicon X80, 16 I, 24/24-125V DC-1
  • Depth: 86 mm
  • Warranty Length: 18 mth
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This multifunction input module has 16 inputs with hot swap function. It has 4 groups of 4 input channels for process input with configurable from 0ms to 255ms anti bounce filtering. It is an module with a rated supply voltage of 24V DC, 48V DC to 60V DC, 110V DC to 125V DC and a current consumption of 30mA. This product is robust, high quality and based on the latest innovative technology. It has 4 groups of 4 input channels for process input with configurable from 0ms to 255ms anti bounce filtering. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height). It is suitable for medium to large process applications. This product is certified by Merchant Navy, C-Tick and GOST. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This multifunction input module has 16 inputs with hot swap function. It has 4 groups of 4 input channels for process input with configurable from 0ms to 255ms anti bounce filtering. It is an module with a rated supply voltage of 24V DC, 48V DC to 60V DC, 110V DC to 125V DC and a current consumption of 30mA. This product is robust, high quality and based on the latest innovative technology. It has 4 groups of 4 input channels for process input with configurable from 0ms to 255ms anti bounce filtering. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height). It is suitable for medium to large process applications. This product is certified by Merchant Navy, C-Tick and GOST. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=BMXERT1604T_3D-simpl&p_File_name=BMXERT1604T_3D-Simpl.stp, https://download.schneider-electric.com/files?p_Doc_Ref=BMXERT1604T_3D-simpl&p_File_name=BMXERT1604T_2D-BACK.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXERT1604T_3D-simpl&p_File_name=BMXERT1604T_2d-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXERT1604T_3D-simpl&p_File_name=BMXERT1604T_2D-BOTTOM.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXERT1604T_3D-simpl&p_File_name=BMXERT1604T_2d-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXERT1604T_3D-simpl&p_File_name=BMXERT1604T_2D-FRONT.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXERT1604T_3D-simpl&p_File_name=BMXERT1604T_2d-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXERT1604T_3D-simpl&p_File_name=BMXERT1604T_2D-isom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXERT1604T_3D-simpl&p_File_name=BMXERT1604T_2d-isom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXERT1604T_3D-simpl&p_File_name=BMXERT1604T_2D-LEFT.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXERT1604T_3D-simpl&p_File_name=BMXERT1604T_2d-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXERT1604T_3D-simpl&p_File_name=BMXERT1604T_2D-RIGHT.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXERT1604T_3D-simpl&p_File_name=BMXERT1604T_2d-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXERT1604T_3D-simpl&p_File_name=BMXERT1604T_2D-TOP.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXERT1604T_3D-simpl&p_File_name=BMXERT1604T_2d-top.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXERT1604T_3D-simpl&p_File_name=BMXERT1604T_terminal_block_lable.dxf
  • Conformance Attributes
    • Product Certifications : CE, RCM, CSA, EAC, Merchant Navy, UL
    • Standards : IEC 61010-2-201, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
  • Complementary Attributes
    • Us Rated Supply Voltage : 24 V DC 19...30 V), 48...60 V DC 38...75 V), 110...125 V DC 88...156 V)
    • Maximum Power Consumption In W : 4 W process input
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Current Consumption : 30 mA 24 V DC, 130 mA 3.3 V DC
    • Environmental Characteristic : gas resistant class Gx, gas resistant class 3C4, dust resistant class 3S4, sand resistant class 3S4, salt resistant level 2, mold growth resistant class 3B2, fungal spore resistant class 3B2
    • Isolation Voltage : 2500 V DC 60 s bus to discrete input, 1400 V DC 60 s bus to IRIG/DCF, 2500 V DC 60 s discrete input to IRIG/DCF
    • Local Signalling : 1 LED (green) for firmware and module run (RUN), 1 LED (green) for status of time code input (T), 1 LED (red) for module fault (ERR), 1 LED (red) for power supply interruption (I/O), 16 LEDs for input status (0...15)
    • Switching Voltage : 125 V 1.3 mA process input, 110 V 1.3 mA process input, 60 V 2.5 mA process input, 48 V 2.5 mA process input, 24 V 6.7 mA process input
    • Time Synchronisation Protocol : DCF77, IRIG-B
    • Carbon Footprint Of The Distribution Phase A4 : 0.0200068364, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.2714869091
    • Carbon Footprint Of The Installation Phase A5 : 0.0407406545, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 20 kg CO2 eq., 19.5487636364
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 59 kg CO2 eq., 59.0618094972
    • Medium Desc : multifunction input module, Modicon X80, 16 I, 24/24-125V DC
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-23
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2311046EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Anti Bounce Filtering : configurable from 0 to 255 ms
    • Data Recording : 1 ms time stamps
    • Function Available : hot swap
    • Group Of Channels : 4 groups of 4 inputs process input
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : multifunction input module
    • Range Of Product : Modicon X80
    • Returnability : No
    • Sampling Duration : 0.5 ms
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 79 kg CO2 eq.
    • Pep Code : ENVPEP2311046EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; FR
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Height Nominal : 100 mm
    • Width Nominal : 32 mm
  • Environment Attributes Main
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 78.9428075336
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Circularity Profile : ENVEOLI2311046EN
    • Environmental Disclosure : ENVPEP2311046EN
    • Eu Rohs Directive : Compliant By Exemption
    • Operating Altitude : <= 13123.36 ft (4000 m)
    • Packaging Made With Recycled Cardboard : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 95-95 % without condensation
    • Pep Code : ENVPEP2311046EN
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : multifunction input module
    • Range Of Product : Modicon X80
  • ETIM
    • ETIM 8 : EC001422
    • ETIM 9 : EC001422
  • Surge Protection And Filtering Attributes
    • Anti Bounce Filtering : configurable from 0 to 255 ms
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 86 mm
